The base class of all charts. 所有Chart的基类。 More...

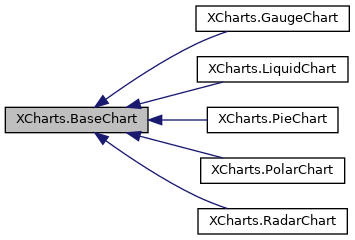

Inheritance diagram for XCharts.BaseChart:

[legend]

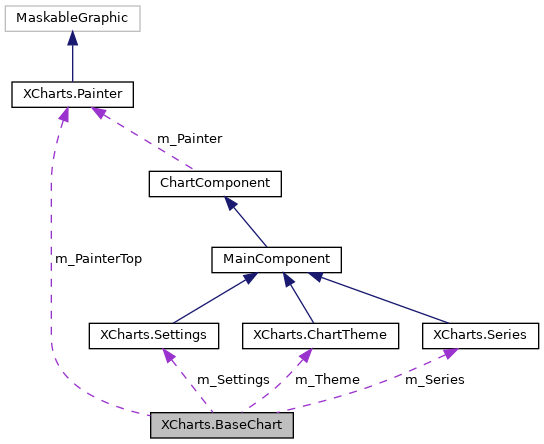

Collaboration diagram for XCharts.BaseChart:

[legend]

Public Member Functions
void	RefreshChart ()
	Redraw chart in next frame. 在下一帧刷新图表。 More...

virtual void	ClearData ()
	Remove all series and legend data. It just emptying all of serie's data without emptying the list of series. 清除所有数据，系列中只是移除数据，列表会保留。 More...

virtual void	RemoveData ()
	Remove all data from series and legend. The series list is also cleared. 清除所有系列和图例数据，系列的列表也会被清除。 More...

virtual void	RemoveData (string serieName)
	Remove legend and serie by name. 清除指定系列名称的数据。 More...

virtual Serie	AddSerie (SerieType type, string serieName=null, bool show=true, bool addToHead=false)
	Add a serie to serie list. 添加一个系列到系列列表中。 More...

virtual Serie	AddSerie (string serieType, string serieName=null, bool show=true, bool addToHead=false)
	Add a serie to serie list. 通过字符串类型的serieType添加一个系列到系列列表中。如果serieType不是已定义的SerieType类型，则设置为Custom类型。 More...

virtual Serie	InsertSerie (int index, SerieType serieType, string serieName=null, bool show=true)

virtual SerieData	AddData (string serieName, double data, string dataName=null)
	Add a data to serie. If serieName doesn't exist in legend,will be add to legend. 添加一个数据到指定的系列中。 More...

virtual SerieData	AddData (int serieIndex, double data, string dataName=null)
	Add a data to serie. 添加一个数据到指定的系列中。 More...

virtual SerieData	AddData (string serieName, List< double > multidimensionalData, string dataName=null)
	Add an arbitray dimension data to serie,such as (x,y,z,...). 添加多维数据（x,y,z...）到指定的系列中。 More...

virtual SerieData	AddData (int serieIndex, List< double > multidimensionalData, string dataName=null)
	Add an arbitray dimension data to serie,such as (x,y,z,...). 添加多维数据（x,y,z...）到指定的系列中。 More...

virtual SerieData	AddData (string serieName, double xValue, double yValue, string dataName=null)
	Add a (x,y) data to serie. 添加（x,y）数据到指定系列中。 More...

virtual SerieData	AddData (int serieIndex, double xValue, double yValue, string dataName=null)
	Add a (x,y) data to serie. 添加（x,y）数据到指定系列中。 More...

virtual SerieData	AddData (int serieIndex, double open, double close, double lowest, double heighest, string dataName=null)

virtual bool	UpdateData (string serieName, int dataIndex, double value)
	Update serie data by serie name. 更新指定系列中的指定索引数据。 More...

virtual bool	UpdateData (int serieIndex, int dataIndex, double value)
	Update serie data by serie index. 更新指定系列中的指定索引数据。 More...

virtual bool	UpdateData (string serieName, int dataIndex, List< double > multidimensionalData)
	更新指定系列指定索引的数据项的多维数据。 More...

virtual bool	UpdateData (int serieIndex, int dataIndex, List< double > multidimensionalData)
	更新指定系列指定索引的数据项的多维数据。 More...

virtual bool	UpdateData (string serieName, int dataIndex, int dimension, double value)
	更新指定系列指定索引指定维数的数据。维数从0开始。 More...

virtual bool	UpdateData (int serieIndex, int dataIndex, int dimension, double value)
	更新指定系列指定索引指定维数的数据。维数从0开始。 More...

virtual bool	UpdateDataName (string serieName, int dataIndex, string dataName)
	Update serie data name. 更新指定系列中的指定索引数据名称。 More...

virtual bool	UpdateDataName (int serieIndex, int dataIndex, string dataName)
	Update serie data name. 更新指定系列中的指定索引数据名称。 More...

virtual void	SetActive (string serieName, bool active)
	Whether to show serie. 设置指定系列是否显示。 More...

virtual void	SetActive (int serieIndex, bool active)
	Whether to show serie. 设置指定系列是否显示。 More...

virtual void	UpdateLegendColor (string legendName, bool active)

virtual bool	IsActive (string serieName)
	Whether serie is activated. 获取指定系列是否显示。 More...

virtual bool	IsActive (int serieIndex)
	Whether serie is activated. 获取指定系列是否显示。 More...

virtual bool	IsActiveByLegend (string legendName)
	Whether serie is activated. 获得指定图例名字的系列是否显示。 More...

void	RefreshLabel ()
	刷新文本标签Label，重新初始化，当有改动Label参数时手动调用改接口 More...

void	RefreshTooltip ()
	刷新Tooltip组件。 More...

bool	UpdateTheme (Theme theme)
	Update chart theme. 切换内置主题。 More...

void	UpdateTheme (ChartTheme theme)
	Update chart theme info. 切换图表主题。 More...

void	AnimationEnable (bool flag)
	Whether series animation enabel. 启用或关闭起始动画。 More...

void	AnimationFadeIn ()
	fadeIn animation. 开始渐入动画。 More...

void	AnimationFadeOut ()
	fadeIn animation. 开始渐出动画。 More...

void	AnimationPause ()
	Pause animation. 暂停动画。 More...

void	AnimationResume ()
	Stop play animation. 继续动画。 More...

void	AnimationReset ()
	Reset animation. 重置动画。 More...

void	ClickLegendButton (int legendIndex, string legendName, bool show)
	点击图例按钮 More...

bool	IsInChart (Vector2 local)
	坐标是否在图表范围内 More...

bool	IsInChart (float x, float y)

void	ClampInChart (ref Vector3 pos)

Vector3	GetTitlePosition (Title title)

bool	ContainsSerie (SerieType serieType)

virtual bool	AddDefaultCustomSerie (string serieName, int dataCount=5)

virtual string[]	GetCustomSerieInspectorShowFileds ()

virtual string[][]	GetCustomSerieInspectorCustomFileds ()

virtual string[]	GetCustomChartInspectorShowFileds ()

virtual string	GetCustomSerieTypeName ()

virtual bool	GetCustomSerieDataNameForColor ()

int	GetLegendRealShowNameIndex (string name)

virtual void	InitCustomSerieTooltip (ref StringBuilder stringBuilder, Serie serie, int index)

void	SetBasePainterMaterial (Material material)
	设置Base Painter的材质球 More...

void	SetSeriePainterMaterial (Material material)
	设置Serie Painter的材质球 More...

void	SetTopPainterMaterial (Material material)
	设置Top Painter的材质球 More...

void	RemoveVessel ()
	移除所有容器组件。 More...

void	AddVessel (Vessel vessel)
	添加容器组件。 More...

Vessel	AddVessel (Vessel.Shape shape, Vector2 center, float radius)
	添加容器组件。 More...

Vessel	GetVessel (int vesselIndex)
	获得指定索引的容器组件。 More...

void	RemoveRadar ()
	移除所有雷达坐标系组件。 More...

void	RemoveIndicator (int radarIndex)
	移除指定Radar的所有Indicator。 More...

void	AddRadar (Radar radar)
	添加雷达坐标系组件。 More...

Radar	AddRadar (Radar.Shape shape, Vector2 center, float radius, int splitNumber=5, float lineWidth=0f, bool showIndicator=true, bool showSplitArea=true)
	添加雷达坐标系组件。 More...

bool	AddIndicator (int radarIndex, Radar.Indicator indicator)

Radar.Indicator	AddIndicator (int radarIndex, string name, float min, float max)
	添加指示器。 More...

bool	UpdateIndicator (int radarIndex, int indicatorIndex, string name, float min, float max)
	更新指示器。 More...

Radar	GetRadar (int radarIndex)
	获得指定索引的雷达坐标系组件。 More...

Radar.Indicator	GetIndicator (int radarIndex, int indicatorIndex)
	获得指定雷达坐标系组件指定索引的指示器。 More...

Painter	GetPainter (int index)

void	RefreshBasePainter ()

void	RefreshTopPainter ()

void	RefreshPainter (int index)

void	RefreshPainter (Serie serie)

void	SetPainterActive (int index, bool flag)

void	Internal_CheckAnimation ()

virtual void	OnDataZoomRangeChanged (DataZoom dataZoom)

override void	OnPointerDown (PointerEventData eventData)

override void	OnBeginDrag (PointerEventData eventData)

override void	OnDrag (PointerEventData eventData)

override void	OnEndDrag (PointerEventData eventData)

override void	OnScroll (PointerEventData eventData)

void	DrawSymbol (VertexHelper vh, SerieSymbolType type, float symbolSize, float tickness, Vector3 pos, Color32 color, Color32 toColor, Color32 fillColor, float gap, float[] cornerRadius)

void	DrawSymbol (VertexHelper vh, SerieSymbolType type, float symbolSize, float tickness, Vector3 pos, Color32 color, Color32 toColor, Color32 fillColor, float gap, float[] cornerRadius, Vector3 startPos)

void	DrawLabelBackground (VertexHelper vh, Serie serie, SerieData serieData)

Protected Member Functions
override void	InitComponent ()

override void	Awake ()

override void	Start ()

override void	Update ()

virtual void	CheckTheme ()

override void	CheckComponent ()

override void	SetAllComponentDirty ()

override void	OnDestroy ()

virtual void	CheckPainter ()

override void	InitPainter ()

void	AddSerieLabel (Serie serie, SerieData serieData, ref int count)

override bool	IsNeedCheckPointerPos ()

virtual void	CheckTootipArea (Vector2 localPostion, bool isActivedOther)

override void	CheckRefreshChart ()

override void	CheckRefreshPainter ()

void	CheckRefreshLabel ()

virtual void	OnRefreshLabel ()

override void	OnSizeChanged ()

override void	OnLocalPositionChanged ()

virtual void	OnThemeChanged ()

virtual void	OnYMaxValueChanged ()

virtual void	OnLegendButtonClick (int index, string legendName, bool show)

virtual void	OnLegendButtonEnter (int index, string legendName)

virtual void	OnLegendButtonExit (int index, string legendName)

virtual void	UpdateTooltip ()

override void	OnDrawPainterBase (VertexHelper vh, Painter painter)

virtual void	OnDrawPainterSerie (VertexHelper vh, Painter painter)

virtual void	OnDrawPainterTop (VertexHelper vh, Painter painter)

virtual void	DrawPainterSerie (VertexHelper vh, Serie serie)

virtual void	DrawPainterTop (VertexHelper vh)

virtual void	DrawTooltip (VertexHelper vh)

override void	DrawBackground (VertexHelper vh)

virtual void	DrawLegend (VertexHelper vh)

int	GetPainterIndexBySerie (Serie serie)

Protected Attributes
string	m_ChartName

ChartTheme	m_Theme

Settings	m_Settings

List< Title >	m_Titles = new List<Title>() { Title.defaultTitle }

List< Legend >	m_Legends = new List<Legend>() { Legend.defaultLegend }

List< Tooltip >	m_Tooltips = new List<Tooltip>() { Tooltip.defaultTooltip }

List< Grid >	m_Grids = new List<Grid>()

List< XAxis >	m_XAxes = new List<XAxis>()

List< YAxis >	m_YAxes = new List<YAxis>()

List< DataZoom >	m_DataZooms = new List<DataZoom>()

List< VisualMap >	m_VisualMaps = new List<VisualMap>()

List< Vessel >	m_Vessels = new List<Vessel>()

List< Polar >	m_Polars = new List<Polar>()

List< RadiusAxis >	m_RadiusAxes = new List<RadiusAxis>()

List< AngleAxis >	m_AngleAxes = new List<AngleAxis>()

List< Radar >	m_Radars = new List<Radar>()

Series	m_Series = Series.defaultSeries

float	m_ChartWidth

float	m_ChartHeight

float	m_ChartX

float	m_ChartY

Vector3	m_ChartPosition = Vector3.zero

Vector2	m_ChartMinAnchor

Vector2	m_ChartMaxAnchor

Vector2	m_ChartPivot

Vector2	m_ChartSizeDelta

Rect	m_ChartRect = new Rect(0, 0, 0, 0)

Action< VertexHelper >	m_OnCustomDrawBaseCallback

Action< VertexHelper >	m_OnCustomDrawTopCallback

Action< VertexHelper, Serie >	m_OnCustomDrawSerieBeforeCallback

Action< VertexHelper, Serie >	m_OnCustomDrawSerieAfterCallback

Action< PointerEventData, int, int >	m_OnPointerClickPie

bool	m_RefreshLabel = false

List< string >	m_LegendRealShowName = new List<string>()

List< Painter >	m_PainterList = new List<Painter>()

GameObject	m_SerieLabelRoot

List< IDrawSerie >	m_DrawSeries = new List<IDrawSerie>()

List< IComponentHandler >	m_ComponentHandlers = new List<IComponentHandler>()

Static Protected Attributes
static readonly string	s_TitleObjectName = "title"

static readonly string	s_SubTitleObjectName = "title_sub"

static readonly string	s_LegendObjectName = "legend"

static readonly string	s_SerieLabelObjectName = "label"

static readonly string	s_SerieTitleObjectName = "serie"

Properties
string	chartName `[get, set]`
	The name of chart. More...

ChartTheme	theme `[get, set]`
	The theme. More...

Title?	title `[get]`
	The title setting of chart. 标题组件 More...

List< Title >	titles `[get]`

Legend?	legend `[get]`
	The legend setting of chart. 图例组件 More...

List< Legend >	legends `[get]`

Tooltip?	tooltip `[get]`
	The tooltip setting of chart. 提示框组件 More...

Series	series `[get]`
	The series setting of chart. 系列列表 More...

Settings	settings `[get]`
	Global parameter setting component. 全局设置组件。 More...

DataZoom?	dataZoom `[get]`
	dataZoom component. 区域缩放组件。 More...

List< DataZoom >	dataZooms `[get]`

VisualMap?	visualMap `[get]`
	visualMap component. 视觉映射组件。 More...

List< VisualMap >	visualMaps `[get]`

float	chartX `[get]`
	The x of chart. 图表的X More...

float	chartY `[get]`
	The y of chart. 图表的Y More...

float	chartWidth `[get]`
	The width of chart. 图表的宽 More...

float	chartHeight `[get]`
	The height of chart. 图表的高 More...

Vector2	chartMinAnchor `[get]`

Vector2	chartMaxAnchor `[get]`

Vector2	chartPivot `[get]`

Vector2	chartSizeDelta `[get]`

Vector3	chartPosition `[get]`
	The position of chart. 图表的左下角起始坐标。 More...

Rect	chartRect `[get]`

Action< VertexHelper >	onCustomDraw `[set]`
	自定义绘制回调。在绘制Serie前调用。 More...

Action< VertexHelper, Serie >	onCustomDrawBeforeSerie `[set]`
	自定义Serie绘制回调。在每个Serie绘制完前调用。 More...

Action< VertexHelper, Serie >	onCustomDrawAfterSerie `[set]`
	自定义Serie绘制回调。在每个Serie绘制完后调用。 More...

Action< VertexHelper >	onCustomDrawTop `[set]`
	自定义Top绘制回调。在绘制Tooltip前调用。 More...

Action< PointerEventData, int, int >	onPointerClickPie `[get, set]`
	the callback function of click pie area. 点击饼图区域回调。参数：PointerEventData，SerieIndex，SerieDataIndex More...

Vessel?	vessel `[get]`

List< Vessel >	vessels `[get]`
	容器组件列表。 More...

Polar?	polar `[get]`
	极坐标。 More...

AngleAxis?	angleAxis `[get]`
	Angle axis of Polar Coordinate. 极坐标系的角度轴。 More...

RadiusAxis?	radiusAxis `[get]`
	Radial axis of polar coordinate. 极坐标系的径向轴。 More...

Radar?	radar `[get]`

List< Radar >	radars `[get]`
	雷达坐标系组件列表。 More...

Detailed Description

The base class of all charts. 所有Chart的基类。

Definition at line 21 of file BaseChart_API.cs.

Member Function Documentation

◆ AddData() [1/6]

virtual SerieData XCharts.BaseChart.AddData	(	int	serieIndex,
		double	data,
		string	dataName = `null`
	)

inlinevirtual

Add a data to serie. 添加一个数据到指定的系列中。

Parameters

serieIndex	the index of serie
data	the data to add
dataName	the name of data

Returns: Returns True on success

Definition at line 260 of file BaseChart_API.cs.

         {
             var serieData = m_Series.AddData(serieIndex, data, dataName);
             if (serieData != null)
             {
                 var serie = m_Series.GetSerie(serieIndex);
                 if (SerieHelper.GetSerieLabel(serie, serieData).show)
                 {
                     RefreshLabel();
                 }
                 RefreshPainter(serie);
             }
             return serieData;
         }

◆ AddData() [2/6]

virtual SerieData XCharts.BaseChart.AddData	(	int	serieIndex,
		double	xValue,
		double	yValue,
		string	dataName = `null`
	)

inlinevirtual

Add a (x,y) data to serie. 添加（x,y）数据到指定系列中。

Parameters

serieIndex	the index of serie
xValue	x data
yValue	y data
dataName	the name of data

Returns: Returns True on success

Definition at line 354 of file BaseChart_API.cs.

         {
             var serieData = m_Series.AddXYData(serieIndex, xValue, yValue, dataName);
             if (serieData != null)
             {
                 var serie = m_Series.GetSerie(serieIndex);
                 if (SerieHelper.GetSerieLabel(serie, serieData).show)
                 {
                     RefreshLabel();
                 }
                 RefreshPainter(serie);
             }
             return serieData;
         }

◆ AddData() [3/6]

virtual SerieData XCharts.BaseChart.AddData	(	int	serieIndex,
		List< double >	multidimensionalData,
		string	dataName = `null`
	)

inlinevirtual

Add an arbitray dimension data to serie,such as (x,y,z,...). 添加多维数据（x,y,z...）到指定的系列中。

Parameters

serieIndex	the index of serie,index starts at 0
multidimensionalData	the (x,y,z,...) data
dataName	the name of data

Returns: Returns True on success

Definition at line 306 of file BaseChart_API.cs.

         {
             var serieData = m_Series.AddData(serieIndex, multidimensionalData, dataName);
             if (serieData != null)
             {
                 var serie = m_Series.GetSerie(serieIndex);
                 if (SerieHelper.GetSerieLabel(serie, serieData).show)
                 {
                     RefreshLabel();
                 }
                 RefreshPainter(serie);
             }
             return serieData;
         }

◆ AddData() [4/6]

virtual SerieData XCharts.BaseChart.AddData	(	string	serieName,
		double	data,
		string	dataName = `null`
	)

inlinevirtual

Add a data to serie. If serieName doesn't exist in legend,will be add to legend. 添加一个数据到指定的系列中。

Parameters

serieName	the name of serie
data	the data to add
dataName	the name of data

Returns: Returns True on success

Definition at line 237 of file BaseChart_API.cs.

         {
             var serieData = m_Series.AddData(serieName, data, dataName);
             if (serieData != null)
             {
                 var serie = m_Series.GetSerie(serieName);
                 if (SerieHelper.GetSerieLabel(serie, serieData).show)
                 {
                     RefreshLabel();
                 }
                 RefreshPainter(serie);
             }
             return serieData;
         }

◆ AddData() [5/6]

virtual SerieData XCharts.BaseChart.AddData	(	string	serieName,
		double	xValue,
		double	yValue,
		string	dataName = `null`
	)

inlinevirtual

Add a (x,y) data to serie. 添加（x,y）数据到指定系列中。

Parameters

serieName	the name of serie
xValue	x data
yValue	y data
dataName	the name of data

Returns: Returns True on success

Definition at line 330 of file BaseChart_API.cs.

         {
             var serieData = m_Series.AddXYData(serieName, xValue, yValue, dataName);
             if (serieData != null)
             {
                 var serie = m_Series.GetSerie(serieName);
                 if (SerieHelper.GetSerieLabel(serie, serieData).show)
                 {
                     RefreshLabel();
                 }
                 RefreshPainter(serie);
             }
             return serieData;
         }

◆ AddData() [6/6]

virtual SerieData XCharts.BaseChart.AddData	(	string	serieName,
		List< double >	multidimensionalData,
		string	dataName = `null`
	)

inlinevirtual

Add an arbitray dimension data to serie,such as (x,y,z,...). 添加多维数据（x,y,z...）到指定的系列中。

Parameters

serieName	the name of serie
multidimensionalData	the (x,y,z,...) data
dataName	the name of data

Returns: Returns True on success

Definition at line 283 of file BaseChart_API.cs.

         {
             var serieData = m_Series.AddData(serieName, multidimensionalData, dataName);
             if (serieData != null)
             {
                 var serie = m_Series.GetSerie(serieName);
                 if (SerieHelper.GetSerieLabel(serie, serieData).show)
                 {
                     RefreshLabel();
                 }
                 RefreshPainter(serie);
             }
             return serieData;
         }

◆ AddIndicator()

Radar.Indicator XCharts.BaseChart.AddIndicator	(	int	radarIndex,
		string	name,
		float	min,
		float	max
	)

inline

添加指示器。

Parameters

radarIndex	雷达坐标系组件索引，从0开始
name	指示器名称
min	指示器最小值
max	指示器最大值

Returns

Definition at line 91 of file RadarChart_API.cs.

         {
             var radar = GetRadar(radarIndex);
             if (radar == null) return null;
             return radar.AddIndicator(name, min, max);
         }

◆ AddRadar() [1/2]

void XCharts.BaseChart.AddRadar ( Radar radar )

inline

添加雷达坐标系组件。

Definition at line 43 of file RadarChart_API.cs.

         {
             m_Radars.Add(radar);
         }

◆ AddRadar() [2/2]

Radar XCharts.BaseChart.AddRadar	(	Radar.Shape	shape,
		Vector2	center,
		float	radius,
		int	splitNumber = `5`,
		float	lineWidth = `0f`,
		bool	showIndicator = `true`,
		bool	showSplitArea = `true`
	)

inline

添加雷达坐标系组件。

Parameters

shape	形状，圆形还是多边形
center	中心点，0-1浮点数时表示百分比
radius	半径，0-1浮点数时表示百分比
splitNumber	指示器轴的分割段数
lineWidth	线条宽
showIndicator	是否显示指示器名称
showSplitArea	是否显示分割区域

Returns

Definition at line 59 of file RadarChart_API.cs.

         {
             var radar = new Radar();
             radar.shape = shape;
             radar.splitNumber = splitNumber;
             radar.radius = radius;
             radar.indicator = showIndicator;
             radar.center[0] = center.x;
             radar.center[1] = center.y;
             radar.splitArea.show = showSplitArea;
             radar.splitLine.lineStyle.width = lineWidth;
             m_Radars.Add(radar);
             return radar;
         }

◆ AddSerie() [1/2]

virtual Serie XCharts.BaseChart.AddSerie	(	SerieType	type,
		string	serieName = `null`,
		bool	show = `true`,
		bool	addToHead = `false`
	)

inlinevirtual

Add a serie to serie list. 添加一个系列到系列列表中。

Parameters

serieName	the name of serie
type	the type of serie
show	whether to show this serie

Returns: the added serie

Definition at line 199 of file BaseChart_API.cs.

         {
             return m_Series.AddSerie(type, serieName, show, addToHead);
         }

◆ AddSerie() [2/2]

virtual Serie XCharts.BaseChart.AddSerie	(	string	serieType,
		string	serieName = `null`,
		bool	show = `true`,
		bool	addToHead = `false`
	)

inlinevirtual

Add a serie to serie list. 通过字符串类型的serieType添加一个系列到系列列表中。如果serieType不是已定义的SerieType类型，则设置为Custom类型。

Parameters

serieType
serieName
show

Returns

Definition at line 212 of file BaseChart_API.cs.

         {
             var type = SerieType.Custom;
             var list = Enum.GetNames(typeof(SerieType));
             foreach (var t in list)
             {
                 if (t.Equals(serieType)) type = (SerieType)Enum.Parse(typeof(SerieType), t);
             }
             return AddSerie(type, serieName, show, addToHead);
         }

◆ AddVessel() [1/2]

void XCharts.BaseChart.AddVessel ( Vessel vessel )

inline

添加容器组件。

Definition at line 32 of file LiquidChart_API.cs.

         {
             m_Vessels.Add(vessel);
         }

◆ AddVessel() [2/2]

Vessel XCharts.BaseChart.AddVessel	(	Vessel.Shape	shape,
		Vector2	center,
		float	radius
	)

inline

添加容器组件。

Definition at line 40 of file LiquidChart_API.cs.

         {
             var vessel = new Vessel();
             vessel.shape = shape;
             vessel.radius = radius;
             vessel.center[0] = center.x;
             vessel.center[1] = center.y;
             AddVessel(vessel);
             return vessel;
         }

◆ AnimationEnable()

void XCharts.BaseChart.AnimationEnable ( bool flag )

inline

Whether series animation enabel. 启用或关闭起始动画。

Parameters

flag

Definition at line 656 of file BaseChart_API.cs.

         {
             foreach (var serie in m_Series.list) serie.AnimationEnable(flag);
         }

◆ AnimationFadeIn()

void XCharts.BaseChart.AnimationFadeIn ( )

inline

fadeIn animation. 开始渐入动画。

Definition at line 665 of file BaseChart_API.cs.

         {
             foreach (var serie in m_Series.list) serie.AnimationFadeIn();
         }

◆ AnimationFadeOut()

void XCharts.BaseChart.AnimationFadeOut ( )

inline

fadeIn animation. 开始渐出动画。

Definition at line 674 of file BaseChart_API.cs.

         {
             foreach (var serie in m_Series.list) serie.AnimationFadeOut();
         }

◆ AnimationPause()

void XCharts.BaseChart.AnimationPause ( )

inline

Pause animation. 暂停动画。

Definition at line 683 of file BaseChart_API.cs.

         {
             foreach (var serie in m_Series.list) serie.AnimationPause();
         }

◆ AnimationReset()

void XCharts.BaseChart.AnimationReset ( )

inline

Reset animation. 重置动画。

Definition at line 701 of file BaseChart_API.cs.

         {
             foreach (var serie in m_Series.list) serie.AnimationReset();
         }

◆ AnimationResume()

void XCharts.BaseChart.AnimationResume ( )

inline

Stop play animation. 继续动画。

Definition at line 692 of file BaseChart_API.cs.

         {
             foreach (var serie in m_Series.list) serie.AnimationResume();
         }

◆ ClearData()

virtual void XCharts.BaseChart.ClearData ( )

inlinevirtual

Remove all series and legend data. It just emptying all of serie's data without emptying the list of series. 清除所有数据，系列中只是移除数据，列表会保留。

Definition at line 151 of file BaseChart_API.cs.

         {
             m_Series.ClearData();
             foreach (var legend in m_Legends) legend.ClearData();
             tooltip.ClearValue();
             m_CheckAnimation = false;
             m_ReinitLabel = true;
             RefreshChart();
         }

◆ ClickLegendButton()

void XCharts.BaseChart.ClickLegendButton	(	int	legendIndex,
		string	legendName,
		bool	show
	)

inline

点击图例按钮

Parameters

legendIndex	图例按钮索引
legendName	图例按钮名称
show	显示还是隐藏

Definition at line 712 of file BaseChart_API.cs.

         {
             OnLegendButtonClick(legendIndex, legendName, show);
             RefreshChart();
         }

◆ GetIndicator()

Radar.Indicator XCharts.BaseChart.GetIndicator	(	int	radarIndex,
		int	indicatorIndex
	)

inline

获得指定雷达坐标系组件指定索引的指示器。

Parameters

radarIndex
indicatorIndex

Returns

Definition at line 131 of file RadarChart_API.cs.

         {
             var radar = GetRadar(radarIndex);
             if (radar != null) return radar.GetIndicator(indicatorIndex);
             else return null;
         }

◆ GetRadar()

Radar XCharts.BaseChart.GetRadar ( int radarIndex )

inline

获得指定索引的雷达坐标系组件。

Parameters

radarIndex

Returns

Definition at line 119 of file RadarChart_API.cs.

         {
             if (radarIndex < 0 || radarIndex > m_Radars.Count - 1) return null;
             return m_Radars[radarIndex];
         }

◆ GetVessel()

Vessel XCharts.BaseChart.GetVessel ( int vesselIndex )

inline

获得指定索引的容器组件。

Parameters

radarIndex

Returns

Definition at line 56 of file LiquidChart_API.cs.

         {
             if (vesselIndex < 0 || vesselIndex > m_Vessels.Count - 1) return null;
             return m_Vessels[vesselIndex];
         }

◆ IsActive() [1/2]

virtual bool XCharts.BaseChart.IsActive ( int serieIndex )

inlinevirtual

Whether serie is activated. 获取指定系列是否显示。

Parameters

serieIndex the index of serie

Returns: True when activated

Definition at line 570 of file BaseChart_API.cs.

         {
             return m_Series.IsActive(serieIndex);
         }

◆ IsActive() [2/2]

virtual bool XCharts.BaseChart.IsActive ( string serieName )

inlinevirtual

Whether serie is activated. 获取指定系列是否显示。

Parameters

serieName the name of serie

Returns: True when activated

Definition at line 559 of file BaseChart_API.cs.

         {
             return m_Series.IsActive(serieName);
         }

◆ IsActiveByLegend()

virtual bool XCharts.BaseChart.IsActiveByLegend ( string legendName )

inlinevirtual

Whether serie is activated. 获得指定图例名字的系列是否显示。

Parameters

legendName

Returns

Definition at line 581 of file BaseChart_API.cs.

         {
             foreach (var serie in m_Series.list)
             {
                 if (serie.show && legendName.Equals(serie.name))
                 {
                     return true;
                 }
                 else
                 {
                     foreach (var serieData in serie.data)
                     {
                         if (serieData.show && legendName.Equals(serieData.name))
                         {
                             return true;
                         }
                     }
                 }

             }
             return false;
         }

◆ IsInChart()

bool XCharts.BaseChart.IsInChart ( Vector2 local )

inline

坐标是否在图表范围内

Parameters

local

Returns

Definition at line 723 of file BaseChart_API.cs.

         {
             return IsInChart(local.x, local.y);
         }

◆ RefreshChart()

void XCharts.BaseChart.RefreshChart ( )

inline

Redraw chart in next frame. 在下一帧刷新图表。

Definition at line 140 of file BaseChart_API.cs.

         {
             m_RefreshChart = true;
             if (m_Painter) m_Painter.Refresh();
         }

◆ RefreshLabel()

void XCharts.BaseChart.RefreshLabel ( )

inline

刷新文本标签Label，重新初始化，当有改动Label参数时手动调用改接口

Definition at line 607 of file BaseChart_API.cs.

         {
             m_ReinitLabel = true;
             m_SerieLabelRoot = null;
         }

◆ RefreshTooltip()

void XCharts.BaseChart.RefreshTooltip ( )

inline

刷新Tooltip组件。

Definition at line 616 of file BaseChart_API.cs.

         {
             InitTooltip();
         }

◆ RemoveData() [1/2]

virtual void XCharts.BaseChart.RemoveData ( )

inlinevirtual

Remove all data from series and legend. The series list is also cleared. 清除所有系列和图例数据，系列的列表也会被清除。

Definition at line 166 of file BaseChart_API.cs.

         {
             foreach (var legend in m_Legends) legend.ClearData();
             foreach (var radar in m_Radars) radar.indicatorList.Clear();
             m_Series.RemoveAll();
             tooltip.ClearValue();
             m_CheckAnimation = false;
             m_ReinitLabel = true;
             m_SerieLabelRoot = null;
             RefreshChart();
         }

◆ RemoveData() [2/2]

virtual void XCharts.BaseChart.RemoveData ( string serieName )

inlinevirtual

Remove legend and serie by name. 清除指定系列名称的数据。

Parameters

serieName the name of serie

Definition at line 183 of file BaseChart_API.cs.

         {
             m_Series.RemoveSerie(serieName);
             foreach (var legend in m_Legends) legend.RemoveData(serieName);
             m_SerieLabelRoot = null;
             RefreshChart();
         }

◆ RemoveIndicator()

void XCharts.BaseChart.RemoveIndicator ( int radarIndex )

inline

移除指定Radar的所有Indicator。

Parameters

radarIndex

Definition at line 33 of file RadarChart_API.cs.

         {
             var radar = GetRadar(radarIndex);
             if (radar == null) return;
             radar.indicatorList.Clear();
         }

◆ RemoveRadar()

void XCharts.BaseChart.RemoveRadar ( )

inline

移除所有雷达坐标系组件。

Definition at line 24 of file RadarChart_API.cs.

         {
             m_Radars.Clear();
         }

◆ RemoveVessel()

void XCharts.BaseChart.RemoveVessel ( )

inline

移除所有容器组件。

Definition at line 24 of file LiquidChart_API.cs.

         {
             m_Vessels.Clear();
         }

◆ SetActive() [1/2]

virtual void XCharts.BaseChart.SetActive	(	int	serieIndex,
		bool	active
	)

inlinevirtual

Whether to show serie. 设置指定系列是否显示。

Parameters

serieIndex	the index of serie
active	Active or not

Definition at line 528 of file BaseChart_API.cs.

         {
             m_Series.SetActive(serieIndex, active);
             var serie = m_Series.GetSerie(serieIndex);
             if (serie != null && !string.IsNullOrEmpty(serie.name))
             {
                 UpdateLegendColor(serie.name, active);
             }
         }

◆ SetActive() [2/2]

virtual void XCharts.BaseChart.SetActive	(	string	serieName,
		bool	active
	)

inlinevirtual

Whether to show serie. 设置指定系列是否显示。

Parameters

serieName	the name of serie
active	Active or not

Definition at line 513 of file BaseChart_API.cs.

         {
             var serie = m_Series.GetSerie(serieName);
             if (serie != null)
             {
                 SetActive(serie.index, active);
             }
         }

◆ SetBasePainterMaterial()

void XCharts.BaseChart.SetBasePainterMaterial ( Material material )

inline

设置Base Painter的材质球

Parameters

material

Definition at line 800 of file BaseChart_API.cs.

         {
             settings.basePainterMaterial = material;
             if (m_Painter != null)
             {
                 m_Painter.material = material;
             }
         }

◆ SetSeriePainterMaterial()

void XCharts.BaseChart.SetSeriePainterMaterial ( Material material )

inline

设置Serie Painter的材质球

Parameters

material

Definition at line 813 of file BaseChart_API.cs.

         {
             settings.basePainterMaterial = material;
             if (m_PainterList != null)
             {
                 foreach (var painter in m_PainterList)
                     painter.material = material;
             }
         }

◆ SetTopPainterMaterial()

void XCharts.BaseChart.SetTopPainterMaterial ( Material material )

inline

设置Top Painter的材质球

Parameters

material

Definition at line 827 of file BaseChart_API.cs.

         {
             settings.topPainterMaterial = material;
             if (m_PainterTop != null)
             {
                 m_PainterTop.material = material;
             }
         }

◆ UpdateData() [1/6]

virtual bool XCharts.BaseChart.UpdateData	(	int	serieIndex,
		int	dataIndex,
		double	value
	)

inlinevirtual

Update serie data by serie index. 更新指定系列中的指定索引数据。

Parameters

serieIndex	the index of serie
dataIndex	the index of data
value	the data will be update

Definition at line 407 of file BaseChart_API.cs.

         {
             if (m_Series.UpdateData(serieIndex, dataIndex, value))
             {
                 RefreshPainter(m_Series.GetSerie(serieIndex));
                 return true;
             }
             return false;
         }

◆ UpdateData() [2/6]

virtual bool XCharts.BaseChart.UpdateData	(	int	serieIndex,
		int	dataIndex,
		int	dimension,
		double	value
	)

inlinevirtual

更新指定系列指定索引指定维数的数据。维数从0开始。

Parameters

serieIndex
dataIndex
dimension	指定维数，从0开始
value

Definition at line 473 of file BaseChart_API.cs.

         {
             if (m_Series.UpdateData(serieIndex, dataIndex, dimension, value))
             {
                 RefreshPainter(m_Series.GetSerie(serieIndex));
                 return true;
             }
             return false;
         }

◆ UpdateData() [3/6]

virtual bool XCharts.BaseChart.UpdateData	(	int	serieIndex,
		int	dataIndex,
		List< double >	multidimensionalData
	)

inlinevirtual

更新指定系列指定索引的数据项的多维数据。

Parameters

serieIndex
dataIndex
multidimensionalData	一个数据项的多维数据列表，而不是多个数据项的数据

Definition at line 439 of file BaseChart_API.cs.

         {
             if (m_Series.UpdateData(serieIndex, dataIndex, multidimensionalData))
             {
                 RefreshPainter(m_Series.GetSerie(serieIndex));
                 return true;
             }
             return false;
         }

◆ UpdateData() [4/6]

virtual bool XCharts.BaseChart.UpdateData	(	string	serieName,
		int	dataIndex,
		double	value
	)

inlinevirtual

Update serie data by serie name. 更新指定系列中的指定索引数据。

Parameters

serieName	the name of serie
dataIndex	the index of data
value	the data will be update

Definition at line 390 of file BaseChart_API.cs.

         {
             if (m_Series.UpdateData(serieName, dataIndex, value))
             {
                 RefreshPainter(m_Series.GetSerie(serieName));
                 return true;
             }
             return false;
         }

◆ UpdateData() [5/6]

virtual bool XCharts.BaseChart.UpdateData	(	string	serieName,
		int	dataIndex,
		int	dimension,
		double	value
	)

inlinevirtual

更新指定系列指定索引指定维数的数据。维数从0开始。

Parameters

serieName
dataIndex
dimension	指定维数，从0开始
value

Definition at line 456 of file BaseChart_API.cs.

         {
             if (m_Series.UpdateData(serieName, dataIndex, dimension, value))
             {
                 RefreshPainter(m_Series.GetSerie(serieName));
                 return true;
             }
             return false;
         }

◆ UpdateData() [6/6]

virtual bool XCharts.BaseChart.UpdateData	(	string	serieName,
		int	dataIndex,
		List< double >	multidimensionalData
	)

inlinevirtual

更新指定系列指定索引的数据项的多维数据。

Parameters

serieName
dataIndex
multidimensionalData	一个数据项的多维数据列表，而不是多个数据项的数据

Definition at line 423 of file BaseChart_API.cs.

         {
             if (m_Series.UpdateData(serieName, dataIndex, multidimensionalData))
             {
                 RefreshPainter(m_Series.GetSerie(serieName));
                 return true;
             }
             return false;
         }

◆ UpdateDataName() [1/2]

virtual bool XCharts.BaseChart.UpdateDataName	(	int	serieIndex,
		int	dataIndex,
		string	dataName
	)

inlinevirtual

Update serie data name. 更新指定系列中的指定索引数据名称。

Parameters

serieIndex
dataName
dataIndex

Definition at line 502 of file BaseChart_API.cs.

         {
             return m_Series.UpdateDataName(serieIndex, dataIndex, dataName);
         }

◆ UpdateDataName() [2/2]

virtual bool XCharts.BaseChart.UpdateDataName	(	string	serieName,
		int	dataIndex,
		string	dataName
	)

inlinevirtual

Update serie data name. 更新指定系列中的指定索引数据名称。

Parameters

serieName
dataIndex
dataName

Definition at line 490 of file BaseChart_API.cs.

         {
             return m_Series.UpdateDataName(serieName, dataIndex, dataName);
         }

◆ UpdateIndicator()

bool XCharts.BaseChart.UpdateIndicator	(	int	radarIndex,
		int	indicatorIndex,
		string	name,
		float	min,
		float	max
	)

inline

更新指示器。

Parameters

radarIndex	雷达坐标系组件的索引，从0开始
indicatorIndex	指示器索引，从0开始
name	指示器名称
min	指示器最小值
max	指示器最大值

Returns

Definition at line 107 of file RadarChart_API.cs.

         {
             var radar = GetRadar(radarIndex);
             if (radar == null) return false;
             return radar.UpdateIndicator(indicatorIndex, name, min, max);
         }

◆ UpdateTheme() [1/2]

void XCharts.BaseChart.UpdateTheme ( ChartTheme theme )

inline

Update chart theme info. 切换图表主题。

Parameters

theme theme

Definition at line 642 of file BaseChart_API.cs.

         {
             m_Theme.CopyTheme(theme);
             SetAllComponentDirty();
 #if UNITY_EDITOR
             UnityEditor.EditorUtility.SetDirty(this);
 #endif
         }

◆ UpdateTheme() [2/2]

bool XCharts.BaseChart.UpdateTheme ( Theme theme )

inline

Update chart theme. 切换内置主题。

Parameters

theme theme

Definition at line 626 of file BaseChart_API.cs.

         {
             if (theme == Theme.Custom)
             {
                 Debug.LogError("UpdateTheme: not support switch to Custom theme.");
                 return false;
             }
             m_Theme.theme = theme;
             return true;
         }

Property Documentation

◆ angleAxis

AngleAxis? XCharts.BaseChart.angleAxis

get

Angle axis of Polar Coordinate. 极坐标系的角度轴。

Definition at line 20 of file PolarChart_API.cs.

20 { get { return m_AngleAxes.Count > 0 ? m_AngleAxes[0] : null; } }

◆ chartHeight

float XCharts.BaseChart.chartHeight

get

The height of chart. 图表的高

Definition at line 103 of file BaseChart_API.cs.

103 { get { return m_ChartHeight; } }

◆ chartName

string XCharts.BaseChart.chartName

getset

The name of chart.

Definition at line 27 of file BaseChart_API.cs.

         {
             get { return m_ChartName; }
             set
             {
                 if (!string.IsNullOrEmpty(value) && XChartsMgr.Instance.ContainsChart(value))
                 {
                     Debug.LogError("chartName repeated:" + value);
                 }
                 else
                 {
                     m_ChartName = value;
                 }
             }
         }

◆ chartPosition

Vector3 XCharts.BaseChart.chartPosition

get

The position of chart. 图表的左下角起始坐标。

Definition at line 112 of file BaseChart_API.cs.

112 { get { return m_ChartPosition; } }

◆ chartWidth

float XCharts.BaseChart.chartWidth

get

The width of chart. 图表的宽

Definition at line 98 of file BaseChart_API.cs.

98 { get { return m_ChartWidth; } }

◆ chartX

float XCharts.BaseChart.chartX

get

The x of chart. 图表的X

Definition at line 88 of file BaseChart_API.cs.

88 { get { return m_ChartX; } }

◆ chartY

float XCharts.BaseChart.chartY

get

The y of chart. 图表的Y

Definition at line 93 of file BaseChart_API.cs.

93 { get { return m_ChartY; } }

◆ dataZoom

DataZoom? XCharts.BaseChart.dataZoom

get

dataZoom component. 区域缩放组件。

Definition at line 76 of file BaseChart_API.cs.

76 { get { return m_DataZooms.Count > 0 ? m_DataZooms[0] : null; } }

◆ legend

Legend? XCharts.BaseChart.legend

get

The legend setting of chart. 图例组件

Definition at line 55 of file BaseChart_API.cs.

55 { get { return m_Legends.Count > 0 ? m_Legends[0] : null; } }

◆ onCustomDraw

Action<VertexHelper> XCharts.BaseChart.onCustomDraw

set

自定义绘制回调。在绘制Serie前调用。

Definition at line 117 of file BaseChart_API.cs.

117 { set { m_OnCustomDrawBaseCallback = value; } }

◆ onCustomDrawAfterSerie

Action<VertexHelper, Serie> XCharts.BaseChart.onCustomDrawAfterSerie

set

自定义Serie绘制回调。在每个Serie绘制完后调用。

Definition at line 125 of file BaseChart_API.cs.

125 { set { m_OnCustomDrawSerieAfterCallback = value; } }

◆ onCustomDrawBeforeSerie

Action<VertexHelper, Serie> XCharts.BaseChart.onCustomDrawBeforeSerie

set

自定义Serie绘制回调。在每个Serie绘制完前调用。

Definition at line 121 of file BaseChart_API.cs.

121 { set { m_OnCustomDrawSerieBeforeCallback = value; } }

◆ onCustomDrawTop

Action<VertexHelper> XCharts.BaseChart.onCustomDrawTop

set

自定义Top绘制回调。在绘制Tooltip前调用。

Definition at line 129 of file BaseChart_API.cs.

129 { set { m_OnCustomDrawTopCallback = value; } }

◆ onPointerClickPie

Action<PointerEventData, int, int> XCharts.BaseChart.onPointerClickPie

getset

the callback function of click pie area. 点击饼图区域回调。参数：PointerEventData，SerieIndex，SerieDataIndex

Definition at line 134 of file BaseChart_API.cs.

134 { set { m_OnPointerClickPie = value; m_ForceOpenRaycastTarget = true; } get { return m_OnPointerClickPie; } }

◆ polar

Polar? XCharts.BaseChart.polar

get

极坐标。

Definition at line 15 of file PolarChart_API.cs.

15 { get { return m_Polars.Count > 0 ? m_Polars[0] : null; } }

◆ radars

List<Radar> XCharts.BaseChart.radars

get

雷达坐标系组件列表。

Definition at line 19 of file RadarChart_API.cs.

19 { get { return m_Radars; } }

◆ radiusAxis

RadiusAxis? XCharts.BaseChart.radiusAxis

get

Radial axis of polar coordinate. 极坐标系的径向轴。

Definition at line 25 of file PolarChart_API.cs.

25 { get { return m_RadiusAxes.Count > 0 ? m_RadiusAxes[0] : null; } }

◆ series

Series XCharts.BaseChart.series

get

The series setting of chart. 系列列表

Definition at line 66 of file BaseChart_API.cs.

66 { get { return m_Series; } }

◆ settings

Settings XCharts.BaseChart.settings

get

Global parameter setting component. 全局设置组件。

Definition at line 71 of file BaseChart_API.cs.

71 { get { return m_Settings; } }

◆ theme

ChartTheme XCharts.BaseChart.theme

getset

The theme.

Definition at line 44 of file BaseChart_API.cs.

44 { get { return m_Theme; } set { m_Theme = value; } }

◆ title

Title? XCharts.BaseChart.title

get

The title setting of chart. 标题组件

Definition at line 49 of file BaseChart_API.cs.

49 { get { return m_Titles.Count > 0 ? m_Titles[0] : null; } }

◆ tooltip

Tooltip? XCharts.BaseChart.tooltip

get

The tooltip setting of chart. 提示框组件

Definition at line 61 of file BaseChart_API.cs.

61 { get { return m_Tooltips.Count > 0 ? m_Tooltips[0] : null; } }

◆ vessels

List<Vessel> XCharts.BaseChart.vessels

get

容器组件列表。

Definition at line 19 of file LiquidChart_API.cs.

19 { get { return m_Vessels; } }

◆ visualMap

VisualMap? XCharts.BaseChart.visualMap

get

visualMap component. 视觉映射组件。

Definition at line 82 of file BaseChart_API.cs.

82 { get { return m_VisualMaps.Count > 0 ? m_VisualMaps[0] : null; } }

The documentation for this class was generated from the following files:

Public Member Functions

Protected Member Functions

Protected Attributes

Static Protected Attributes

Properties

Detailed Description

Member Function Documentation

◆ AddData() [1/6]

◆ AddData() [2/6]

◆ AddData() [3/6]

◆ AddData() [4/6]

◆ AddData() [5/6]

◆ AddData() [6/6]

◆ AddIndicator()

◆ AddRadar() [1/2]

◆ AddRadar() [2/2]

◆ AddSerie() [1/2]

◆ AddSerie() [2/2]

◆ AddVessel() [1/2]

◆ AddVessel() [2/2]

◆ AnimationEnable()

◆ AnimationFadeIn()

◆ AnimationFadeOut()

◆ AnimationPause()

◆ AnimationReset()

◆ AnimationResume()

◆ ClearData()

◆ ClickLegendButton()

◆ GetIndicator()

◆ GetRadar()

◆ GetVessel()

◆ IsActive() [1/2]

◆ IsActive() [2/2]

◆ IsActiveByLegend()

◆ IsInChart()

◆ RefreshChart()

◆ RefreshLabel()

◆ RefreshTooltip()

◆ RemoveData() [1/2]

◆ RemoveData() [2/2]

◆ RemoveIndicator()

◆ RemoveRadar()

◆ RemoveVessel()

◆ SetActive() [1/2]

◆ SetActive() [2/2]

◆ SetBasePainterMaterial()

◆ SetSeriePainterMaterial()

◆ SetTopPainterMaterial()

◆ UpdateData() [1/6]

◆ UpdateData() [2/6]

◆ UpdateData() [3/6]

◆ UpdateData() [4/6]

◆ UpdateData() [5/6]

◆ UpdateData() [6/6]

◆ UpdateDataName() [1/2]

◆ UpdateDataName() [2/2]

◆ UpdateIndicator()

◆ UpdateTheme() [1/2]

◆ UpdateTheme() [2/2]

Property Documentation

◆ angleAxis

◆ chartHeight

◆ chartName

◆ chartPosition

◆ chartWidth

◆ chartX

◆ chartY

◆ dataZoom

◆ legend

◆ onCustomDraw

◆ onCustomDrawAfterSerie

◆ onCustomDrawBeforeSerie

◆ onCustomDrawTop

◆ onPointerClickPie

◆ polar

◆ radars

◆ radiusAxis

◆ series

◆ settings

◆ theme
