Theme. 主题相关配置。 More...

Inheritance diagram for XCharts.ChartTheme:

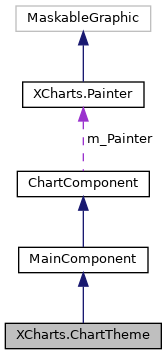

Collaboration diagram for XCharts.ChartTheme:

[legend]

Public Member Functions
void	SetDefaultFont ()

Color32	GetColor (int index)
	Gets the color of the specified index from the palette. 获得调色盘对应系列索引的颜色值。 More...

void	SetColorPalette (List< Color32 > colorList)

void	SetColorPalette (List< string > hexColorStringList)

void	CheckWarning (StringBuilder sb)

string	GetColorStr (int index)
	Gets the hexadecimal color string of the specified index from the palette. 获得指定索引的十六进制颜色值字符串。 More...

void	CopyTheme (Theme theme)

void	CopyTheme (ChartTheme theme)
	copy all configurations from theme. 复制主题的所有配置。 More...

void	ResetTheme ()
	Clear all custom configurations. 重置，清除所有自定义配置。 More...

ChartTheme	CloneTheme ()
	克隆主题。 More...

void	SyncFontName ()

void	SyncFontToSubComponent ()

override int	GetHashCode ()

Public Member Functions inherited from XCharts.ChartComponent
virtual void	SetVerticesDirty ()

virtual void	ClearVerticesDirty ()

virtual void	SetComponentDirty ()

virtual void	ClearComponentDirty ()

virtual void	ClearDirty ()

virtual void	SetAllDirty ()

Static Public Member Functions
static Color32	GetColor (string hexColorStr)
	Convert the html string to color. 将字符串颜色值转成Color。 More...

Properties
Theme	theme `[get, set]`
	the theme of chart. 主题类型。 More...

string	themeName `[get, set]`

Color32	contrastColor `[get, set]`
	the contrast color of chart. 对比色。 More...

Color32	backgroundColor `[get, set]`
	the background color of chart. 背景颜色。 More...

string	fontName `[get, set]`

int	fontInstanceId `[get, set]`

string	tmpFontName `[get, set]`

int	tmpFontInstanceId `[get, set]`

List< Color32 >	colorPalette `[get, set]`
	The color list of palette. If no color is set in series, the colors would be adopted sequentially and circularly from this list as the colors of series. 调色盘颜色列表。如果系列没有设置颜色，则会依次循环从该列表中取颜色作为系列颜色。 More...

ComponentTheme	common `[get, set]`

TitleTheme	title `[get, set]`

SubTitleTheme	subTitle `[get, set]`

LegendTheme	legend `[get, set]`

AxisTheme	axis `[get, set]`

RadiusAxisTheme	radiusAxis `[get, set]`

AngleAxisTheme	angleAxis `[get, set]`

PolarAxisTheme	polar `[get, set]`

GaugeAxisTheme	gauge `[get, set]`

RadarAxisTheme	radar `[get, set]`

TooltipTheme	tooltip `[get, set]`

DataZoomTheme	dataZoom `[get, set]`

VisualMapTheme	visualMap `[get, set]`

SerieTheme	serie `[get, set]`

Font	font `[get, set]`
	the font of chart text。字体。 More...

static ChartTheme	Default `[get]`
	default theme. 默认主题。 More...

static ChartTheme	Light `[get]`
	light theme. 亮主题。 More...

static ChartTheme	Dark `[get]`
	dark theme. 暗主题。 More...

static ChartTheme	EmptyTheme `[get]`

Properties inherited from XCharts.ChartComponent
virtual bool	vertsDirty `[get]`
	图表重绘标记。 More...

virtual bool	componentDirty `[get]`
	组件重新初始化标记。 More...

bool	anyDirty `[get]`
	需要重绘图表或重新初始化组件。 More...

Painter	painter `[get, set]`

Action	refreshComponent `[get, set]`

GameObject	gameObject `[get, set]`

Additional Inherited Members
Protected Attributes inherited from XCharts.ChartComponent
bool	m_VertsDirty

bool	m_ComponentDirty

Painter	m_Painter

Detailed Description

Theme. 主题相关配置。

Definition at line 46 of file ChartTheme.cs.

Member Function Documentation

◆ CloneTheme()

ChartTheme XCharts.ChartTheme.CloneTheme ( )

inline

克隆主题。

Returns

Definition at line 372 of file ChartTheme.cs.

         {
             var theme = new ChartTheme();
             InitChartComponentTheme(theme);
             theme.CopyTheme(this);
             return theme;
         }

◆ CopyTheme()

void XCharts.ChartTheme.CopyTheme ( ChartTheme theme )

inline

copy all configurations from theme. 复制主题的所有配置。

Parameters

theme

Definition at line 310 of file ChartTheme.cs.

         {
             m_Theme = theme.theme;
             m_ThemeName = theme.themeName;
 #if dUI_TextMeshPro
             tmpFont = theme.tmpFont;
 #endif
             font = theme.font;
             m_FontName = theme.fontName;
             m_FontInstacneId = theme.fontInstanceId;
             m_TMPFontName = theme.tmpFontName;
             m_TMPFontInstanceId = theme.tmpFontInstanceId;
             m_ContrastColor = theme.contrastColor;
             m_BackgroundColor = theme.m_BackgroundColor;
             m_Common.Copy(theme.common);
             m_Legend.Copy(theme.m_Legend);
             m_Title.Copy(theme.m_Title);
             m_SubTitle.Copy(theme.m_SubTitle);
             m_Axis.Copy(theme.axis);
             m_RadiusAxis.Copy(theme.radiusAxis);
             m_AngleAxis.Copy(theme.angleAxis);
             m_Polar.Copy(theme.polar);
             m_Gauge.Copy(theme.gauge);
             m_Radar.Copy(theme.radar);
             m_Tooltip.Copy(theme.tooltip);
             m_DataZoom.Copy(theme.dataZoom);
             m_VisualMap.Copy(theme.visualMap);
             m_Serie.Copy(theme.serie);
             ChartHelper.CopyList(m_ColorPalette, theme.colorPalette);
             SetAllDirty();
         }

◆ GetColor() [1/2]

Color32 XCharts.ChartTheme.GetColor ( int index )

inline

Gets the color of the specified index from the palette. 获得调色盘对应系列索引的颜色值。

Parameters

index 编号索引

Returns: the color,or Color.clear when failed.颜色值，失败时返回Color.clear

Definition at line 221 of file ChartTheme.cs.

         {
             if (index < 0) index = 0;
             var newIndex = index < m_ColorPalette.Count ? index : index % m_ColorPalette.Count;
             if (newIndex < m_ColorPalette.Count)
                 return m_ColorPalette[newIndex];
             else return Color.clear;
         }

◆ GetColor() [2/2]

static Color32 XCharts.ChartTheme.GetColor ( string hexColorStr )

inlinestatic

Convert the html string to color. 将字符串颜色值转成Color。

Parameters

hexColorStr

Returns

Definition at line 572 of file ChartTheme.cs.

         {
             Color color;
             ColorUtility.TryParseHtmlString(hexColorStr, out color);
             return (Color32)color;
         }

◆ GetColorStr()

string XCharts.ChartTheme.GetColorStr ( int index )

inline

Gets the hexadecimal color string of the specified index from the palette. 获得指定索引的十六进制颜色值字符串。

Parameters

index

Returns

Definition at line 274 of file ChartTheme.cs.

         {
             if (index < 0)
             {
                 index = 0;
             }
             index = index % m_ColorPalette.Count;
             if (_colorDic.ContainsKey(index)) return _colorDic[index];
             else
             {
                 _colorDic[index] = ColorUtility.ToHtmlStringRGBA(GetColor(index));
                 return _colorDic[index];
             }
         }

◆ ResetTheme()

void XCharts.ChartTheme.ResetTheme ( )

inline

Clear all custom configurations. 重置，清除所有自定义配置。

Definition at line 346 of file ChartTheme.cs.

         {
             switch (m_Theme)
             {
                 case Theme.Default: CopyTheme(Default); break;
                 case Theme.Light: CopyTheme(Light); break;
                 case Theme.Dark: CopyTheme(Dark); break;
                 case Theme.Custom:
                     var sourTheme = XThemeMgr.GetTheme(themeName);
                     if (sourTheme != null)
                     {
                         CopyTheme(sourTheme);
                     }
                     else
                     {
                         Debug.LogWarning("ResetTheme:can't find theme:" + themeName + ", reset to Default theme");
                         CopyTheme(Default);
                     }
                     break;
             }
         }

Property Documentation

◆ backgroundColor

Color32 XCharts.ChartTheme.backgroundColor

getset

the background color of chart. 背景颜色。

Definition at line 118 of file ChartTheme.cs.

         {
             get { return m_BackgroundColor; }
             set { if (PropertyUtil.SetColor(ref m_BackgroundColor, value)) SetVerticesDirty(); }
         }

◆ colorPalette

List<Color32> XCharts.ChartTheme.colorPalette

getset

The color list of palette. If no color is set in series, the colors would be adopted sequentially and circularly from this list as the colors of series. 调色盘颜色列表。如果系列没有设置颜色，则会依次循环从该列表中取颜色作为系列颜色。

Definition at line 148 of file ChartTheme.cs.

148 { get { return m_ColorPalette; } set { m_ColorPalette = value; SetVerticesDirty(); } }

◆ contrastColor

Color32 XCharts.ChartTheme.contrastColor

getset

the contrast color of chart. 对比色。

Definition at line 109 of file ChartTheme.cs.

         {
             get { return m_ContrastColor; }
             set { if (PropertyUtil.SetColor(ref m_ContrastColor, value)) SetVerticesDirty(); }
         }

◆ Dark

ChartTheme XCharts.ChartTheme.Dark

staticget

dark theme. 暗主题。

Definition at line 455 of file ChartTheme.cs.

         {
             get
             {
                 var theme = new ChartTheme();
                 theme.theme = Theme.Dark;
                 theme.themeName = Theme.Dark.ToString();
                 theme.contrastColor = ColorUtil.GetColor("#B9B8CE");
                 theme.backgroundColor = ColorUtil.GetColor("#100C2A");
                 theme.colorPalette = new List<Color32>
                     {
                         ColorUtil.GetColor("#4992ff"),
                         ColorUtil.GetColor("#7cffb2"),
                         ColorUtil.GetColor("#fddd60"),
                         ColorUtil.GetColor("#ff6e76"),
                         ColorUtil.GetColor("#58d9f9"),
                         ColorUtil.GetColor("#05c091"),
                         ColorUtil.GetColor("#ff8a45"),
                         ColorUtil.GetColor("#8d48e3"),
                         ColorUtil.GetColor("#dd79ff"),
                     };
                 InitChartComponentTheme(theme);
                 return theme;
             }
         }

◆ Default

ChartTheme XCharts.ChartTheme.Default

staticget

default theme. 默认主题。

Definition at line 387 of file ChartTheme.cs.

         {
             get
             {
                 var theme = new ChartTheme();
                 theme.theme = Theme.Default;
                 theme.themeName = Theme.Default.ToString();
                 theme.contrastColor = ColorUtil.GetColor("#514D4D");
                 theme.backgroundColor = new Color32(255, 255, 255, 255);
                 theme.colorPalette = new List<Color32>
                     {
                         new Color32(194, 53, 49, 255),
                         new Color32(47, 69, 84, 255),
                         new Color32(97, 160, 168, 255),
                         new Color32(212, 130, 101, 255),
                         new Color32(145, 199, 174, 255),
                         new Color32(116, 159, 131, 255),
                         new Color32(202, 134, 34, 255),
                         new Color32(189, 162, 154, 255),
                         new Color32(110, 112, 116, 255),
                         new Color32(84, 101, 112, 255),
                         new Color32(196, 204, 211, 255)
                     };
                 InitChartComponentTheme(theme);
                 return theme;
             }
         }

◆ font

Font XCharts.ChartTheme.font

getset

the font of chart text。字体。

Definition at line 189 of file ChartTheme.cs.

         {
             get { return m_Font; }
             set
             {
                 m_Font = value;
                 if (value)
                 {
                     m_FontName = value.name;
                     m_FontInstacneId = value.GetInstanceID();
                 }
                 SetComponentDirty();
                 SyncFontToSubComponent();
             }
         }

◆ Light

ChartTheme XCharts.ChartTheme.Light

staticget

light theme. 亮主题。

Definition at line 420 of file ChartTheme.cs.

         {
             get
             {
                 var theme = new ChartTheme();
                 theme.theme = Theme.Light;
                 theme.themeName = Theme.Light.ToString();
                 theme.contrastColor = ColorUtil.GetColor("#514D4D");
                 theme.backgroundColor = new Color32(255, 255, 255, 255);
                 theme.colorPalette = new List<Color32>
                     {
                         ColorUtil.GetColor("#37A2DA"),
                         ColorUtil.GetColor("#32C5E9"),
                         ColorUtil.GetColor("#67E0E3"),
                         ColorUtil.GetColor("#9FE6B8"),
                         ColorUtil.GetColor("#FFDB5C"),
                         ColorUtil.GetColor("#ff9f7f"),
                         ColorUtil.GetColor("#fb7293"),
                         ColorUtil.GetColor("#E062AE"),
                         ColorUtil.GetColor("#E690D1"),
                         ColorUtil.GetColor("#e7bcf3"),
                         ColorUtil.GetColor("#9d96f5"),
                         ColorUtil.GetColor("#8378EA"),
                         ColorUtil.GetColor("#96BFFF"),
                     };
                 InitChartComponentTheme(theme);
                 return theme;
             }
         }

◆ theme

Theme XCharts.ChartTheme.theme

getset

the theme of chart. 主题类型。

Definition at line 93 of file ChartTheme.cs.

         {
             get { return m_Theme; }
             set { if (PropertyUtil.SetStruct(ref m_Theme, value)) SetComponentDirty(); }
         }

The documentation for this class was generated from the following file:

ChartTheme.cs
