Legend component.The legend component shows different sets of tags, colors, and names. You can control which series are not displayed by clicking on the legend. 图例组件。图例组件展现了不同系列的标记，颜色和名字。可以通过点击图例控制哪些系列不显示。 More...

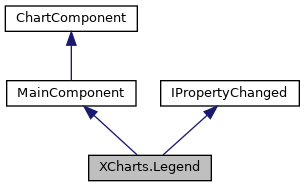

Inheritance diagram for XCharts.Legend:

[legend]

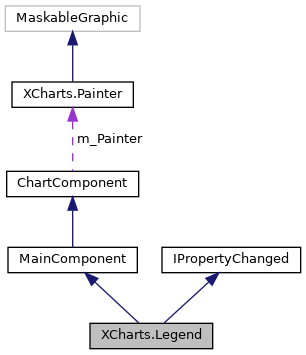

Collaboration diagram for XCharts.Legend:

[legend]

Public Types
enum	Type { Type.Auto, Type.Custom, Type.EmptyCircle, Type.Circle, Type.Rect, Type.Triangle, Type.Diamond }

enum	SelectedMode { SelectedMode.Multiple, SelectedMode.Single, SelectedMode.None }
	Selected mode of legend, which controls whether series can be toggled displaying by clicking legends. 图例选择的模式，控制是否可以通过点击图例改变系列的显示状态。默认开启图例选择，可以设成 None 关闭。 More...

Public Member Functions
override void	ClearComponentDirty ()

void	ClearData ()
	Clear legend data. 清空。 More...

bool	ContainsData (string name)
	Whether include in legend data by the specified name. 是否包括由指定名字的图例 More...

void	RemoveData (string name)
	Removes the legend with the specified name. 移除指定名字的图例。 More...

void	AddData (string name)
	Add legend data. 添加图例。 More...

string	GetData (int index)
	Gets the legend for the specified index. 获得指定索引的图例。 More...

int	GetIndex (string legendName)
	Gets the index of the specified legend. 获得指定图例的索引。 More...

void	RemoveButton ()
	Remove all legend buttons. 移除所有图例按钮。 More...

void	SetButton (string name, LegendItem item, int total)
	Bind buttons to legends. 给图例绑定按钮。 More...

void	UpdateButtonColor (string name, Color color)
	Update the legend button color. 更新图例按钮颜色。 More...

void	UpdateContentColor (string name, Color color)
	Update the text color of legend. 更新图例文字颜色。 More...

Sprite	GetIcon (int index)
	Gets the legend button for the specified index. 获得指定索引的图例按钮。 More...

void	OnChanged ()
	Callback handling when parameters change. 参数变更时的回调处理。 More...

string	GetFormatterContent (string category)
	获得图例格式化后的显示内容。 More...

Public Member Functions inherited from XCharts.ChartComponent
virtual void	SetVerticesDirty ()

virtual void	ClearVerticesDirty ()

virtual void	SetComponentDirty ()

virtual void	ClearDirty ()

virtual void	SetAllDirty ()

Properties
bool	show `[get, set]`
	Whether to show legend component. 是否显示图例组件。 More...

Type	iconType `[get, set]`
	Type of legend. 图例类型。 [default:Type.Auto] More...

SelectedMode	selectedMode `[get, set]`
	Selected mode of legend, which controls whether series can be toggled displaying by clicking legends. 选择模式。控制是否可以通过点击图例改变系列的显示状态。默认开启图例选择，可以设成 None 关闭。 [default:SelectedMode.Multiple] More...

Orient	orient `[get, set]`
	Specify whether the layout of legend component is horizontal or vertical. 布局方式是横还是竖。 [default:Orient.Horizonal] More...

Location	location `[get, set]`
	The location of legend. 图例显示的位置。 [default:Location.defaultTop] More...

float	itemWidth `[get, set]`
	Image width of legend symbol. 图例标记的图形宽度。 [default:24f] More...

float	itemHeight `[get, set]`
	Image height of legend symbol. 图例标记的图形高度。 [default:12f] More...

float	itemGap `[get, set]`
	The distance between each legend, horizontal distance in horizontal layout, and vertical distance in vertical layout. 图例每项之间的间隔。横向布局时为水平间隔，纵向布局时为纵向间隔。 [default:10f] More...

bool	itemAutoColor `[get, set]`
	Whether the legend symbol matches the color automatically. 图例标记的图形是否自动匹配颜色。 [default:true] More...

bool	textAutoColor `[get, set]`
	Whether the legend text matches the color automatically. 图例标记的文本是否自动匹配颜色。 [default:false] More...

string	formatter `[get, set]`
	Legend content string template formatter. Support for wrapping lines with . Template:{name}. 图例内容字符串模版格式器。支持用换行。模板变量为图例名称 {name}。 [default:null] More...

TextStyle	textStyle `[get, set]`
	the style of text. 文本样式。 More...

List< string >	data `[get, set]`
	Data array of legend. An array item is usually a name representing string. (If it is a pie chart, it could also be the name of a single data in the pie chart) of a series. If data is not specified, it will be auto collected from series. 图例的数据数组。数组项通常为一个字符串，每一项代表一个系列的 name（如果是饼图，也可以是饼图单个数据的 name）。如果 data 没有被指定，会自动从当前系列中获取。指定data时里面的数据项和serie匹配时才会生效。 More...

List< Sprite >	icons `[get, set]`
	自定义的图例标记图形。 More...

int	index `[get, set]`

override bool	vertsDirty `[get]`
	图表是否需要刷新（图例组件不需要刷新图表） More...

override bool	componentDirty `[get]`
	组件是否需要刷新 More...

Dictionary< string, LegendItem >	buttonList `[get]`
	the button list of legend. 图例按钮列表。 More...

float	runtimeWidth `[get, set]`
	运行时图例的总宽度 More...

float	runtimeHeight `[get, set]`
	运行时图例的总高度 More...

Dictionary< int, float >	runtimeEachWidth `[get]`
	多列时每列的宽度 More...

float	runtimeEachHeight `[get, set]`
	单列高度 More...

static Legend	defaultLegend `[get]`
	一个在顶部居中显示的默认图例。 More...

Properties inherited from XCharts.ChartComponent
virtual bool	vertsDirty `[get]`
	图表重绘标记。 More...

virtual bool	componentDirty `[get]`
	组件重新初始化标记。 More...

bool	anyDirty `[get]`
	需要重绘图表或重新初始化组件。 More...

Painter	painter `[get, set]`

Action	refreshComponent `[get, set]`

GameObject	gameObject `[get, set]`

Additional Inherited Members
Protected Attributes inherited from XCharts.ChartComponent
bool	m_VertsDirty

bool	m_ComponentDirty

Painter	m_Painter

Detailed Description

Legend component.The legend component shows different sets of tags, colors, and names. You can control which series are not displayed by clicking on the legend. 图例组件。图例组件展现了不同系列的标记，颜色和名字。可以通过点击图例控制哪些系列不显示。

Definition at line 20 of file Legend.cs.

Member Enumeration Documentation

◆ SelectedMode

enum XCharts.Legend.SelectedMode

strong

Selected mode of legend, which controls whether series can be toggled displaying by clicking legends. 图例选择的模式，控制是否可以通过点击图例改变系列的显示状态。默认开启图例选择，可以设成 None 关闭。

Enumerator
Multiple	多选。
Single	单选。
None	无法选择。

Definition at line 57 of file Legend.cs.

         {
             Multiple,
             Single,
             None
         }

◆ Type

enum XCharts.Legend.Type

strong

Enumerator
Auto	自动匹配。
Custom	自定义图标。
EmptyCircle	空心圆。
Circle	圆形。
Rect	正方形。可通过Setting的legendIconCornerRadius参数调整圆角。
Triangle	三角形。
Diamond	菱形。

Definition at line 22 of file Legend.cs.

         {
             Auto,
             Custom,
             EmptyCircle,
             Circle,
             Rect,
             Triangle,
             Diamond,
         }

Member Function Documentation

◆ AddData()

void XCharts.Legend.AddData ( string name )

inline

Add legend data. 添加图例。

Parameters

name

Definition at line 337 of file Legend.cs.

         {
             if (!m_Data.Contains(name) && !string.IsNullOrEmpty(name))
             {
                 m_Data.Add(name);
                 SetComponentDirty();
             }
         }

◆ ClearData()

void XCharts.Legend.ClearData ( )

inline

Clear legend data. 清空。

Definition at line 301 of file Legend.cs.

         {
             m_Data.Clear();
             SetComponentDirty();
         }

◆ ContainsData()

bool XCharts.Legend.ContainsData ( string name )

inline

Whether include in legend data by the specified name. 是否包括由指定名字的图例

Parameters

name

Returns

Definition at line 313 of file Legend.cs.

         {
             return m_Data.Contains(name);
         }

◆ GetData()

string XCharts.Legend.GetData ( int index )

inline

Gets the legend for the specified index. 获得指定索引的图例。

Parameters

index

Returns

Definition at line 352 of file Legend.cs.

         {
             if (index >= 0 && index < m_Data.Count)
             {
                 return m_Data[index];
             }
             return null;
         }

◆ GetFormatterContent()

string XCharts.Legend.GetFormatterContent ( string category )

inline

获得图例格式化后的显示内容。

Parameters

◆ GetIcon()

Sprite XCharts.Legend.GetIcon ( int index )

inline

Gets the legend button for the specified index. 获得指定索引的图例按钮。

Parameters

index

Returns

Definition at line 430 of file Legend.cs.

         {
             if (index >= 0 && index < m_Icons.Count)
             {
                 return m_Icons[index];
             }
             else
             {
                 return null;
             }
         }

◆ GetIndex()

int XCharts.Legend.GetIndex ( string legendName )

inline

Gets the index of the specified legend. 获得指定图例的索引。

Parameters

legendName

Returns

Definition at line 367 of file Legend.cs.

         {
             return m_Data.IndexOf(legendName);
         }

◆ OnChanged()

void XCharts.Legend.OnChanged ( )

inline

Callback handling when parameters change. 参数变更时的回调处理。

Implements XCharts.IPropertyChanged.

Definition at line 446 of file Legend.cs.

         {
             m_Location.OnChanged();
         }

◆ RemoveButton()

void XCharts.Legend.RemoveButton ( )

inline

Remove all legend buttons. 移除所有图例按钮。

Definition at line 376 of file Legend.cs.

         {
             m_DataBtnList.Clear();
         }

◆ RemoveData()

void XCharts.Legend.RemoveData ( string name )

inline

Removes the legend with the specified name. 移除指定名字的图例。

Parameters

name

Definition at line 323 of file Legend.cs.

         {
             if (m_Data.Contains(name))
             {
                 m_Data.Remove(name);
                 SetComponentDirty();
             }
         }

◆ SetButton()

void XCharts.Legend.SetButton	(	string	name,
		LegendItem	item,
		int	total
	)

inline

Bind buttons to legends. 给图例绑定按钮。

Parameters

name
btn
total

Definition at line 388 of file Legend.cs.

         {
             m_DataBtnList[name] = item;
             int index = m_DataBtnList.Values.Count;
             item.SetIconActive(iconType == Type.Custom);
             item.SetActive(show);
         }

◆ UpdateButtonColor()

void XCharts.Legend.UpdateButtonColor	(	string	name,
		Color	color
	)

inline

Update the legend button color. 更新图例按钮颜色。

Parameters

name
color

Definition at line 402 of file Legend.cs.

         {
             if (m_DataBtnList.ContainsKey(name))
             {
                 m_DataBtnList[name].SetIconColor(color);
             }
         }

◆ UpdateContentColor()

void XCharts.Legend.UpdateContentColor	(	string	name,
		Color	color
	)

inline

Update the text color of legend. 更新图例文字颜色。

Parameters

name
color

Definition at line 416 of file Legend.cs.

         {
             if (m_DataBtnList.ContainsKey(name))
             {
                 m_DataBtnList[name].SetContentColor(color);
             }
         }

Property Documentation

◆ buttonList

Dictionary<string, LegendItem> XCharts.Legend.buttonList

get

the button list of legend. 图例按钮列表。

Definition at line 254 of file Legend.cs.

254 { get { return m_DataBtnList; } }

◆ componentDirty

override bool XCharts.Legend.componentDirty

get

组件是否需要刷新

Definition at line 238 of file Legend.cs.

         {
             get { return m_ComponentDirty || location.componentDirty || textStyle.componentDirty; }
         }

◆ data

List<string> XCharts.Legend.data

getset

Data array of legend. An array item is usually a name representing string. (If it is a pie chart, it could also be the name of a single data in the pie chart) of a series. If data is not specified, it will be auto collected from series. 图例的数据数组。数组项通常为一个字符串，每一项代表一个系列的 name（如果是饼图，也可以是饼图单个数据的 name）。如果 data 没有被指定，会自动从当前系列中获取。指定data时里面的数据项和serie匹配时才会生效。

Definition at line 217 of file Legend.cs.

         {
             get { return m_Data; }
             set { if (value != null) { m_Data = value; SetComponentDirty(); } }
         }

◆ defaultLegend

Legend XCharts.Legend.defaultLegend

staticget

一个在顶部居中显示的默认图例。

Definition at line 276 of file Legend.cs.

         {
             get
             {
                 var legend = new Legend
                 {
                     m_IconType = Type.Auto,
                     m_Show = false,
                     m_SelectedMode = SelectedMode.Multiple,
                     m_Orient = Orient.Horizonal,
                     m_Location = Location.defaultTop,
                     m_ItemWidth = 25.0f,
                     m_ItemHeight = 12.0f,
                     m_ItemGap = 10f,
                 };
                 legend.location.top = 35;
                 legend.textStyle.offset = new Vector2(2, 0);
                 legend.textStyle.fontSize = 0;
                 return legend;
             }
         }

◆ formatter

string XCharts.Legend.formatter

getset

Legend content string template formatter. Support for wrapping lines with
. Template:{name}. 图例内容字符串模版格式器。支持用
换行。模板变量为图例名称 {name}。 [default:null]

Definition at line 196 of file Legend.cs.

         {
             get { return m_Formatter; }
             set { if (PropertyUtil.SetClass(ref m_Formatter, value)) SetComponentDirty(); }
         }

◆ icons

List<Sprite> XCharts.Legend.icons

getset

自定义的图例标记图形。

Definition at line 225 of file Legend.cs.

         {
             get { return m_Icons; }
             set { if (value != null) { m_Icons = value; SetComponentDirty(); } }
         }

◆ iconType

Type XCharts.Legend.iconType

getset

Type of legend. 图例类型。 [default:Type.Auto]

Definition at line 105 of file Legend.cs.

         {
             get { return m_IconType; }
             set { if (PropertyUtil.SetStruct(ref m_IconType, value)) SetAllDirty(); }
         }

◆ itemAutoColor

bool XCharts.Legend.itemAutoColor

getset

Whether the legend symbol matches the color automatically. 图例标记的图形是否自动匹配颜色。 [default:true]

Definition at line 175 of file Legend.cs.

         {
             get { return m_ItemAutoColor; }
             set { if (PropertyUtil.SetStruct(ref m_ItemAutoColor, value)) SetComponentDirty(); }
         }

◆ itemGap

float XCharts.Legend.itemGap

getset

The distance between each legend, horizontal distance in horizontal layout, and vertical distance in vertical layout. 图例每项之间的间隔。横向布局时为水平间隔，纵向布局时为纵向间隔。 [default:10f]

Definition at line 165 of file Legend.cs.

         {
             get { return m_ItemGap; }
             set { if (PropertyUtil.SetStruct(ref m_ItemGap, value)) SetComponentDirty(); }
         }

◆ itemHeight

float XCharts.Legend.itemHeight

getset

Image height of legend symbol. 图例标记的图形高度。 [default:12f]

Definition at line 155 of file Legend.cs.

         {
             get { return m_ItemHeight; }
             set { if (PropertyUtil.SetStruct(ref m_ItemHeight, value)) SetComponentDirty(); }
         }

◆ itemWidth

float XCharts.Legend.itemWidth

getset

Image width of legend symbol. 图例标记的图形宽度。 [default:24f]

Definition at line 145 of file Legend.cs.

         {
             get { return m_ItemWidth; }
             set { if (PropertyUtil.SetStruct(ref m_ItemWidth, value)) SetComponentDirty(); }
         }

◆ location

Location XCharts.Legend.location

getset

The location of legend. 图例显示的位置。 [default:Location.defaultTop]

Definition at line 135 of file Legend.cs.

         {
             get { return m_Location; }
             set { if (PropertyUtil.SetClass(ref m_Location, value)) SetComponentDirty(); }
         }

◆ orient

Orient XCharts.Legend.orient

getset

Specify whether the layout of legend component is horizontal or vertical. 布局方式是横还是竖。 [default:Orient.Horizonal]

Definition at line 125 of file Legend.cs.

         {
             get { return m_Orient; }
             set { if (PropertyUtil.SetStruct(ref m_Orient, value)) SetComponentDirty(); }
         }

◆ runtimeEachHeight

float XCharts.Legend.runtimeEachHeight

getset

单列高度

Definition at line 270 of file Legend.cs.

270 { get; internal set; }

◆ runtimeEachWidth

Dictionary<int, float> XCharts.Legend.runtimeEachWidth

get

多列时每列的宽度

Definition at line 266 of file Legend.cs.

266 { get { return m_RuntimeEachWidth; } }

◆ runtimeHeight

float XCharts.Legend.runtimeHeight

getset

运行时图例的总高度

Definition at line 262 of file Legend.cs.

262 { get; internal set; }

◆ runtimeWidth

float XCharts.Legend.runtimeWidth

getset

运行时图例的总宽度

Definition at line 258 of file Legend.cs.

258 { get; internal set; }

◆ selectedMode

SelectedMode XCharts.Legend.selectedMode

getset

Selected mode of legend, which controls whether series can be toggled displaying by clicking legends. 选择模式。控制是否可以通过点击图例改变系列的显示状态。默认开启图例选择，可以设成 None 关闭。 [default:SelectedMode.Multiple]

Definition at line 115 of file Legend.cs.

         {
             get { return m_SelectedMode; }
             set { if (PropertyUtil.SetStruct(ref m_SelectedMode, value)) SetComponentDirty(); }
         }

◆ show

bool XCharts.Legend.show

getset

Whether to show legend component. 是否显示图例组件。

Definition at line 95 of file Legend.cs.

         {
             get { return m_Show; }
             set { if (PropertyUtil.SetStruct(ref m_Show, value)) SetComponentDirty(); }
         }

◆ textAutoColor

bool XCharts.Legend.textAutoColor

getset

Whether the legend text matches the color automatically. 图例标记的文本是否自动匹配颜色。 [default:false]

Definition at line 185 of file Legend.cs.

         {
             get { return m_TextAutoColor; }
             set { if (PropertyUtil.SetStruct(ref m_TextAutoColor, value)) SetComponentDirty(); }
         }

◆ textStyle

TextStyle XCharts.Legend.textStyle

getset

the style of text. 文本样式。

Definition at line 205 of file Legend.cs.

         {
             get { return m_TextStyle; }
             set { if (PropertyUtil.SetClass(ref m_TextStyle, value)) SetComponentDirty(); }
         }

◆ vertsDirty

override bool XCharts.Legend.vertsDirty

get

图表是否需要刷新（图例组件不需要刷新图表）

Definition at line 233 of file Legend.cs.

233 { get { return false; } }

The documentation for this class was generated from the following file:

Legend.cs

Public Types

Public Member Functions

Properties

Additional Inherited Members

Detailed Description

Member Enumeration Documentation

◆ SelectedMode

◆ Type

Member Function Documentation

◆ AddData()

◆ ClearData()

◆ ContainsData()

◆ GetData()

◆ GetFormatterContent()

◆ GetIcon()

◆ GetIndex()

◆ OnChanged()

◆ RemoveButton()

◆ RemoveData()

◆ SetButton()

◆ UpdateButtonColor()

◆ UpdateContentColor()

Property Documentation

◆ buttonList

◆ componentDirty

◆ data

◆ defaultLegend

◆ formatter

◆ icons

◆ iconType

◆ itemAutoColor

◆ itemGap

◆ itemHeight

◆ itemWidth

◆ location

◆ orient

◆ runtimeEachHeight

◆ runtimeEachWidth

◆ runtimeHeight

◆ runtimeWidth

◆ selectedMode

◆ show

◆ textAutoColor

◆ textStyle

◆ vertsDirty
