Global parameter setting component. The default value can be used in general, and can be adjusted when necessary. 全局参数设置组件。一般情况下可使用默认值，当有需要时可进行调整。 More...

Inheritance diagram for XCharts.Settings:

[legend]

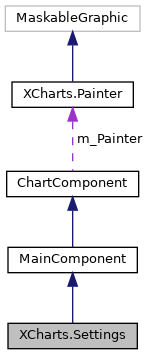

Collaboration diagram for XCharts.Settings:

[legend]

Public Member Functions
void	Copy (Settings settings)

void	Reset ()

Public Member Functions inherited from XCharts.ChartComponent
virtual void	SetVerticesDirty ()

virtual void	ClearVerticesDirty ()

virtual void	SetComponentDirty ()

virtual void	ClearComponentDirty ()

virtual void	ClearDirty ()

virtual void	SetAllDirty ()

Protected Attributes
int	m_MaxPainter = 10

bool	m_ReversePainter = false

Material	m_BasePainterMaterial

Material	m_SeriePainterMaterial

Material	m_TopPainterMaterial

float	m_LineSmoothStyle = 3f

float	m_LineSmoothness = 2f

float	m_LineSegmentDistance = 3f

float	m_CicleSmoothness = 2f

float	m_LegendIconLineWidth = 2

Protected Attributes inherited from XCharts.ChartComponent
bool	m_VertsDirty

bool	m_ComponentDirty

Painter	m_Painter

Properties
int?	maxPainter `[get, set]`
	max painter. 设定的painter数量。 More...

bool	reversePainter `[get, set]`
	Painter是否逆序。逆序时index大的serie最先绘制。 More...

Material	basePainterMaterial `[get, set]`
	Base Pointer 材质球，设置后会影响Axis等。 More...

Material	seriePainterMaterial `[get, set]`
	Serie Pointer 材质球，设置后会影响所有Serie。 More...

Material	topPainterMaterial `[get, set]`
	Top Pointer 材质球，设置后会影响Tooltip等。 More...

float?	lineSmoothStyle `[get, set]`
	Curve smoothing factor. By adjusting the smoothing coefficient, the curvature of the curve can be changed, and different curves with slightly different appearance can be obtained. 曲线平滑系数。通过调整平滑系数可以改变曲线的曲率，得到外观稍微有变化的不同曲线。 More...

float?	lineSmoothness `[get, set]`
	Smoothness of curve. The smaller the value, the smoother the curve, but the number of vertices will increase. When the area with gradient is filled, the larger the value, the worse the transition effect. 曲线平滑度。值越小曲线越平滑，但顶点数也会随之增加。当开启有渐变的区域填充时，数值越大渐变过渡效果越差。 More...

float?	lineSegmentDistance `[get, set]`
	The partition distance of a line segment. A line in a normal line chart is made up of many segments, the number of which is determined by the change in value. The smaller the number of segments, the higher the number of vertices. When the area with gradient is filled, the larger the value, the worse the transition effect. 线段的分割距离。普通折线图的线是由很多线段组成，段数由该数值决定。值越小段数越多，但顶点数也会随之增加。当开启有渐变的区域填充时，数值越大渐变过渡效果越差。 More...

float?	cicleSmoothness `[get, set]`
	the smoothess of cricle. 圆形的平滑度。数越小圆越平滑，但顶点数也会随之增加。 More...

float	legendIconLineWidth `[get, set]`
	the width of line serie legend. Line类型图例图标的线条宽度。 More...

float[]	legendIconCornerRadius `[get, set]`
	The radius of rounded corner. Its unit is px. Use array to respectively specify the 4 corner radiuses((clockwise upper left, upper right, bottom right and bottom left)). 图例圆角半径。用数组分别指定4个圆角半径（顺时针左上，右上，右下，左下）。 More...

static Settings	DefaultSettings `[get]`

Properties inherited from XCharts.ChartComponent
virtual bool	vertsDirty `[get]`
	图表重绘标记。 More...

virtual bool	componentDirty `[get]`
	组件重新初始化标记。 More...

bool	anyDirty `[get]`
	需要重绘图表或重新初始化组件。 More...

Painter	painter `[get, set]`

Action	refreshComponent `[get, set]`

GameObject	gameObject `[get, set]`

Detailed Description

Global parameter setting component. The default value can be used in general, and can be adjusted when necessary. 全局参数设置组件。一般情况下可使用默认值，当有需要时可进行调整。

Definition at line 18 of file Settings.cs.

Property Documentation

◆ basePainterMaterial

Material XCharts.Settings.basePainterMaterial

getset

Base Pointer 材质球，设置后会影响Axis等。

Definition at line 53 of file Settings.cs.

         {
             get { return m_BasePainterMaterial; }
             set { if (PropertyUtil.SetClass(ref m_BasePainterMaterial, value)) SetComponentDirty(); }
         }

◆ cicleSmoothness

float? XCharts.Settings.cicleSmoothness

getset

the smoothess of cricle. 圆形的平滑度。数越小圆越平滑，但顶点数也会随之增加。

Definition at line 111 of file Settings.cs.

         {
             get { return m_CicleSmoothness; }
             set { if (PropertyUtil.SetStruct(ref m_CicleSmoothness, value < 0 ? 1f : value)) SetVerticesDirty(); }
         }

◆ legendIconCornerRadius

float [] XCharts.Settings.legendIconCornerRadius

getset

The radius of rounded corner. Its unit is px. Use array to respectively specify the 4 corner radiuses((clockwise upper left, upper right, bottom right and bottom left)). 图例圆角半径。用数组分别指定4个圆角半径（顺时针左上，右上，右下，左下）。

Definition at line 131 of file Settings.cs.

         {
             get { return m_LegendIconCornerRadius; }
             set { if (PropertyUtil.SetClass(ref m_LegendIconCornerRadius, value, true)) SetVerticesDirty(); }
         }

◆ legendIconLineWidth

float XCharts.Settings.legendIconLineWidth

getset

the width of line serie legend. Line类型图例图标的线条宽度。

Definition at line 121 of file Settings.cs.

         {
             get { return m_LegendIconLineWidth; }
             set { if (PropertyUtil.SetStruct(ref m_LegendIconLineWidth, value)) SetVerticesDirty(); }
         }

◆ lineSegmentDistance

float? XCharts.Settings.lineSegmentDistance

getset

The partition distance of a line segment. A line in a normal line chart is made up of many segments, the number of which is determined by the change in value. The smaller the number of segments, the higher the number of vertices. When the area with gradient is filled, the larger the value, the worse the transition effect. 线段的分割距离。普通折线图的线是由很多线段组成，段数由该数值决定。值越小段数越多，但顶点数也会随之增加。当开启有渐变的区域填充时，数值越大渐变过渡效果越差。

Definition at line 102 of file Settings.cs.

         {
             get { return m_LineSegmentDistance; }
             set { if (PropertyUtil.SetStruct(ref m_LineSegmentDistance, value < 0 ? 1f : value)) SetVerticesDirty(); }
         }

◆ lineSmoothness

float? XCharts.Settings.lineSmoothness

getset

Smoothness of curve. The smaller the value, the smoother the curve, but the number of vertices will increase. When the area with gradient is filled, the larger the value, the worse the transition effect. 曲线平滑度。值越小曲线越平滑，但顶点数也会随之增加。当开启有渐变的区域填充时，数值越大渐变过渡效果越差。

Definition at line 90 of file Settings.cs.

         {
             get { return m_LineSmoothness; }
             set { if (PropertyUtil.SetStruct(ref m_LineSmoothStyle, value < 0 ? 1f : value)) SetVerticesDirty(); }
         }

◆ lineSmoothStyle

float? XCharts.Settings.lineSmoothStyle

getset

Curve smoothing factor. By adjusting the smoothing coefficient, the curvature of the curve can be changed, and different curves with slightly different appearance can be obtained. 曲线平滑系数。通过调整平滑系数可以改变曲线的曲率，得到外观稍微有变化的不同曲线。

Definition at line 79 of file Settings.cs.

         {
             get { return m_LineSmoothStyle; }
             set { if (PropertyUtil.SetStruct(ref m_LineSmoothStyle, value < 0 ? 1f : value)) SetVerticesDirty(); }
         }

◆ maxPainter

int? XCharts.Settings.maxPainter

getset

max painter. 设定的painter数量。

Definition at line 37 of file Settings.cs.

         {
             get { return m_MaxPainter; }
             set { if (PropertyUtil.SetStruct(ref m_MaxPainter, value < 0 ? 1 : value)) SetVerticesDirty(); }
         }

◆ reversePainter

bool XCharts.Settings.reversePainter

getset

Painter是否逆序。逆序时index大的serie最先绘制。

Definition at line 45 of file Settings.cs.

         {
             get { return m_ReversePainter; }
             set { if (PropertyUtil.SetStruct(ref m_ReversePainter, value)) SetVerticesDirty(); }
         }

◆ seriePainterMaterial

Material XCharts.Settings.seriePainterMaterial

getset

Serie Pointer 材质球，设置后会影响所有Serie。

Definition at line 61 of file Settings.cs.

         {
             get { return m_SeriePainterMaterial; }
             set { if (PropertyUtil.SetClass(ref m_SeriePainterMaterial, value)) SetComponentDirty(); }
         }

◆ topPainterMaterial

Material XCharts.Settings.topPainterMaterial

getset

Top Pointer 材质球，设置后会影响Tooltip等。

Definition at line 69 of file Settings.cs.

         {
             get { return m_TopPainterMaterial; }
             set { if (PropertyUtil.SetClass(ref m_TopPainterMaterial, value)) SetComponentDirty(); }
         }

The documentation for this class was generated from the following file:

Settings.cs
