系列。每个系列通过 type 决定自己的图表类型。 More...

Inheritance diagram for XCharts.Serie:

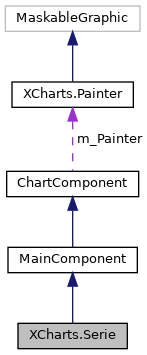

Collaboration diagram for XCharts.Serie:

[legend]

Public Member Functions
override void	ClearVerticesDirty ()

override void	ClearComponentDirty ()

void	ClearNameDirty ()

override void	ClearDirty ()

void	ClearData ()
	清空所有数据 More...

void	RemoveData (int index)
	移除指定索引的数据 More...

SerieData	AddYData (double value, string dataName=null)
	添加一个数据到维度Y（此时维度X对应的数据是索引） More...

SerieData	AddXYData (double xValue, double yValue, string dataName=null)
	添加（x，y）数据到维度X和维度Y More...

SerieData	AddData (double open, double close, double lowest, double heighest, string dataName=null)
	添加 (open, close, lowest, heighest) 数据 More...

SerieData	AddData (List< double > valueList, string dataName=null)
	将一组数据添加到系列中。如果数据只有一个，默认添加到维度Y中。 More...

SerieData	AddChildData (SerieData parent, double value, string name=null)

SerieData	AddChildData (SerieData parent, List< double > value, string name=null)

double	GetData (int index, int dimension, DataZoom dataZoom=null)
	获得指定index指定维数的数据 More...

double	GetYData (int index, DataZoom dataZoom=null)
	获得维度Y索引对应的数据 More...

double	GetYCurrData (int index, DataZoom dataZoom=null)

void	GetYData (int index, out double yData, out string dataName, DataZoom dataZoom=null)
	获得维度Y索引对应的数据和数据名 More...

SerieData	GetSerieData (int index, DataZoom dataZoom=null)
	获得指定索引的数据项 More...

SerieData	GetSerieData (string id, DataZoom dataZoom=null)

SerieData	GetSerieData (SerieData parent, string id)

void	GetXYData (int index, DataZoom dataZoom, out double xValue, out double yVlaue)
	获得指定索引的维度X和维度Y的数据 More...

double	GetDataTotal (int dimension)

List< SerieData >	GetDataList (DataZoom dataZoom=null)
	获得系列的数据列表 More...

bool	UpdateYData (int index, double value)
	更新指定索引的维度Y数据 More...

bool	UpdateXYData (int index, float xValue, float yValue)
	更新指定索引的维度X和维度Y的数据 More...

bool	UpdateData (int index, int dimension, double value)
	更新指定索引指定维数的数据 More...

bool	UpdateData (int index, List< double > values)
	更新指定索引的数据项数据列表 More...

bool	UpdateDataName (int index, string name)

void	ClearHighlight ()
	清除所有数据的高亮标志 More...

void	SetHighlight (int index, bool flag)
	设置指定索引的数据为高亮状态 More...

float	GetBarWidth (float categoryWidth)

bool	IsIgnoreIndex (int index, int dimension=1)

bool	IsIgnoreValue (SerieData serieData, int dimension=1)

bool	IsIgnoreValue (double value)

bool	IsIgnorePoint (int index)

bool	IsPerformanceMode ()
	是否为性能模式。只有折线图和柱状图才有性能模式。性能模式下不绘制Symbol，不刷新Label，不单独设置数据项配置。 More...

bool	IsCoordinateSerie ()

void	SetDataIconSize (int dataIndex, float width, float height)
	设置指定index的数据图标的尺寸 More...

void	SetDataIconColor (int dataIndex, Color color)
	设置指定index的数据图标的颜色 More...

void	AnimationEnable (bool flag)
	启用或取消初始动画 More...

void	AnimationFadeIn ()
	渐入动画 More...

void	AnimationFadeOut ()
	渐出动画 More...

void	AnimationPause ()
	暂停动画 More...

void	AnimationResume ()
	继续动画 More...

void	AnimationReset ()
	重置动画 More...

void	AnimationRestart ()
	重置动画 More...

void	ParseJsonData (string jsonData)
	从json中导入数据 More...

Public Member Functions inherited from XCharts.ChartComponent
virtual void	SetVerticesDirty ()

virtual void	SetComponentDirty ()

virtual void	SetAllDirty ()

Protected Attributes
int	m_MinShow

int	m_MaxShow

int	m_MaxCache

Protected Attributes inherited from XCharts.ChartComponent
bool	m_VertsDirty

bool	m_ComponentDirty

Painter	m_Painter

Properties
bool	show `[get, set]`
	Whether to show serie in chart. 系列是否显示在图表上。 More...

SerieType	type `[get, set]`
	the chart type of serie. 系列的图表类型。 More...

string	name `[get, set]`
	Series name used for displaying in tooltip and filtering with legend. 系列名称，用于 tooltip 的显示，legend 的图例筛选。 More...

string?	legendName `[get]`
	Legend name. When the serie name is not empty, the legend name is the series name; Otherwise, it is index. 图例名称。当系列名称不为空时，图例名称即为系列名称；反之则为索引index。 More...

string	stack `[get, set]`
	If stack the value. On the same category axis, the series with the same stack name would be put on top of each other. 数据堆叠，同个类目轴上系列配置相同的stack值后，后一个系列的值会在前一个系列的值上相加。 More...

int	xAxisIndex `[get, set]`
	the index of XAxis. 使用X轴的index。 More...

int	yAxisIndex `[get, set]`
	the index of YAxis. 使用Y轴的index。 More...

int	radarIndex `[get, set]`
	Index of radar component that radar chart uses. 雷达图所使用的 radar 组件的 index。 More...

int	vesselIndex `[get, set]`
	Index of vesel component that liquid chart uses. 水位图所使用的 vessel 组件的 index。 More...

int	polarIndex `[get, set]`
	Index of polar component that serie uses. 所使用的 polar 组件的 index。 More...

int?	minShow `[get, set]`
	The min number of data to show in chart. 系列所显示数据的最小索引 More...

int?	maxShow `[get, set]`
	The max number of data to show in chart. 系列所显示数据的最大索引 More...

int?	maxCache `[get, set]`
	The max number of serie data cache. The first data will be remove when the size of serie data is larger then maxCache. default:0,unlimited. 系列中可缓存的最大数据量。默认为0没有限制，大于0时超过指定值会移除旧数据再插入新数据。 More...

AreaStyle	areaStyle `[get, set]`
	The style of area. 区域填充样式。 More...

SerieSymbol	symbol `[get, set]`
	the symbol of serie data item. 标记的图形。 More...

LineType	lineType `[get, set]`
	The type of line chart. 折线图样式类型。 More...

float?	sampleDist `[get, set]`
	the min pixel dist of sample. 采样的最小像素距离，默认为0时不采样。当两个数据点间的水平距离小于改值时，开启采样，保证两点间的水平距离不小于改值。 More...

SampleType	sampleType `[get, set]`
	the type of sample. 采样类型。当sampleDist大于0时有效。 More...

float	sampleAverage `[get, set]`
	设定的采样平均值。当sampleType 为 Peak 时，用于和过滤数据的平均值做对比是取最大值还是最小值。默认为0时会实时计算所有数据的平均值。 More...

LineStyle	lineStyle `[get, set]`
	The style of line. 线条样式。 More...

BarType	barType `[get, set]`
	柱形图类型。 More...

bool	barPercentStack `[get, set]`
	柱形图是否为百分比堆积。相同stack的serie只要有一个barPercentStack为true，则就显示成百分比堆叠柱状图。 More...

float	barWidth `[get, set]`
	The width of the bar. Adaptive when default 0. 柱条的宽度，不设时自适应。支持设置成相对于类目宽度的百分比。 More...

float	barGap `[get, set]`
	The gap between bars between different series, is a percent value like '0.3f' , which means 30% of the bar width, can be set as a fixed value. More...

float	barCategoryGap `[get, set]`
	The bar gap of a single series, defaults to be 20% of the category gap, can be set as a fixed value. In a single coodinate system, this attribute is shared by multiple 'bar' series. This attribute should be set on the last 'bar' series in the coodinate system, then it will be adopted by all 'bar' series in the coordinate system. 同一系列的柱间距离，默认为类目间距的20，可设固定值。在同一坐标系上，此属性会被多个 'bar' 系列共享。此属性应设置于此坐标系中最后一个 'bar' 系列上才会生效，并且是对此坐标系中所有 'bar' 系列生效。 More...

float?	barZebraWidth `[get, set]`
	斑马线的粗细。 More...

float?	barZebraGap `[get, set]`
	斑马线的间距。 More...

bool	pieClickOffset `[get, set]`
	Whether offset when mouse click pie chart item. 鼠标点击时是否开启偏移，一般用在PieChart图表中。 More...

RoseType	pieRoseType `[get, set]`
	Whether to show as Nightingale chart. 是否展示成南丁格尔图，通过半径区分数据大小。 More...

float	pieSpace `[get, set]`
	the space of pie chart item. 饼图项间的空隙留白。 More...

float	gap `[get, set]`

float[]	center `[get, set]`
	the center of chart. 中心点。 More...

float[]	radius `[get, set]`
	the radius of chart. 半径。radius[0]表示内径，radius[1]表示外径。 More...

float	min `[get, set]`
	最小值。 More...

float	max `[get, set]`
	最大值。 More...

float	minSize `[get, set]`
	数据最小值 min 映射的宽度。 More...

float	maxSize `[get, set]`
	数据最大值 max 映射的宽度。 More...

float	startAngle `[get, set]`
	起始角度。和时钟一样，12点钟位置是0度，顺时针到360度。 More...

float	endAngle `[get, set]`
	结束角度。和时钟一样，12点钟位置是0度，顺时针到360度。 More...

float	minAngle `[get, set]`
	The minimum angle of sector(0-360). It prevents some sector from being too small when value is small. 最小的扇区角度（0-360）。用于防止某个值过小导致扇区太小影响交互。 More...

bool	clockwise `[get, set]`
	是否顺时针。 More...

float	ringGap `[get, set]`
	环形图的环间隙。 More...

int?	splitNumber `[get, set]`
	刻度分割段数。最大可设置36。 More...

bool	roundCap `[get, set]`
	是否开启圆弧效果。 More...

bool	ignore `[get, set]`
	是否开启忽略数据。当为 true 时，数据值为 ignoreValue 时不进行绘制。 More...

double	ignoreValue `[get, set]`
	忽略数据的默认值。当ignore为true才有效。 More...

bool	ignoreLineBreak `[get, set]`
	忽略数据时折线是断开还是连接。默认false为连接。 More...

RadarType	radarType `[get, set]`
	雷达图类型。 More...

GaugeAxis	gaugeAxis `[get, set]`
	仪表盘轴线。 More...

GaugePointer	gaugePointer `[get, set]`
	仪表盘指针。 More...

GaugeType	gaugeType `[get, set]`
	仪表盘类型。 More...

SerieLabel	label `[get, set]`
	Text label of graphic element,to explain some data information about graphic item like value, name and so on. 图形上的文本标签，可用于说明图形的一些数据信息，比如值，名称等。 More...

SerieAnimation	animation `[get, set]`
	The start animation. 起始动画。 More...

LineArrow	lineArrow `[get, set]`
	The arrow of line. 折线图的箭头。 More...

ItemStyle	itemStyle `[get, set]`
	The style of data item. 图形样式。 More...

Emphasis	emphasis `[get, set]`
	高亮的图形样式和文本标签样式。 More...

TitleStyle	titleStyle `[get, set]`
	标题样式。 More...

MarkLine	markLine `[get, set]`
	标线。 More...

IconStyle	iconStyle `[get, set]`
	the icon of data. 数据项图标样式。 More...

int	showDataDimension `[get, set]`
	数据项里的数据维数。 More...

bool	showDataName `[get, set]`
	在Editor的inpsector上是否显示name参数 More...

bool	clip `[get, set]`
	If clip the overflow on the coordinate system. 是否裁剪超出坐标系部分的图形。 More...

bool	showAsPositiveNumber `[get, set]`
	Show negative number as positive number. 将负数数值显示为正数。一般和`AxisLabel`的`showAsPositiveNumber`配合使用。仅在折线图和柱状图中有效。 More...

bool	large `[get, set]`
	是否开启大数据量优化，在数据图形特别多而出现卡顿时候可以开启。开启后配合 largeThreshold 在数据量大于指定阈值的时候对绘制进行优化。缺点：优化后不能自定义设置单个数据项的样式，不能显示Label。 More...

int	largeThreshold `[get, set]`
	开启大数量优化的阈值。只有当开启了large并且数据量大于该阀值时才进入性能模式。 More...

bool	avoidLabelOverlap `[get, set]`
	在饼图且标签外部显示的情况下，是否启用防止标签重叠策略，默认关闭，在标签拥挤重叠的情况下会挪动各个标签的位置，防止标签间的重叠。 More...

float	waveLength `[get, set]`
	Wave length of the wave, which is relative to the diameter. 波长。为0-1小数时指直线的百分比。 More...

float	waveHeight `[get, set]`
	波高。 More...

float	waveOffset `[get, set]`
	波偏移。 More...

float	waveSpeed `[get, set]`
	波速。正数时左移，负数时右移。 More...

float	left `[get, set]`
	Distance between component and the left side of the container. 组件离容器左侧的距离。 More...

float	right `[get, set]`
	Distance between component and the right side of the container. 组件离容器右侧的距离。 More...

float	top `[get, set]`
	Distance between component and the top side of the container. 组件离容器上侧的距离。 More...

float	bottom `[get, set]`
	Distance between component and the bottom side of the container. 组件离容器下侧的距离。 More...

bool	customBool1 `[get, set]`

bool	customBool2 `[get, set]`

int	customInt1 `[get, set]`

int	customInt2 `[get, set]`

float	customFloat1 `[get, set]`

float	customFloat2 `[get, set]`

bool	insertDataToHead `[get, set]`
	Whether to add new data at the head or at the end of the list. 添加新数据时是在列表的头部还是尾部加入。 More...

SerieDataSortType	dataSortType `[get, set]`
	组件的数据排序。 More...

Orient	orient `[get, set]`
	组件的朝向。 More...

Align	align `[get, set]`
	组件水平方向对齐方式。 More...

List< SerieData >	data `[get]`
	系列中的数据内容数组。SerieData可以设置1到n维数据。 More...

override bool	vertsDirty `[get]`

override bool	componentDirty `[get]`

int	index `[get, set]`
	The index of serie,start at 0. 系列的索引，从0开始。 More...

bool	highlighted `[get, set]`
	Whether the serie is highlighted. 该系列是否高亮，一般由图例悬停触发。 More...

int	dataCount `[get]`
	the count of data list. 数据项个数。 More...

List< Vector3 >	dataPoints `[get]`
	数据项位置坐标。 More...

Vector3	runtimeCenterPos `[get, set]`
	饼图的中心点位置。 More...

float	runtimeInsideRadius `[get, set]`
	饼图的内径 More...

float	runtimeOutsideRadius `[get, set]`
	饼图的外径 More...

double	runtimeDataMax `[get, set]`
	运行时的最大数据值 More...

double	runtimeDataMin `[get, set]`
	运行时的最小数据值 More...

double	runtimePieDataTotal `[get, set]`
	饼图的数据项之和 More...

float	runtimeWaveSpeed `[get, set]`

Painter	runtimeCanvas `[get, set]`

double	runtimeCheckValue `[get, set]`

int	runtimeGridIndex `[get, set]`

float	runtimeX `[get, set]`

float	runtimeY `[get, set]`

float	runtimeWidth `[get, set]`

float	runtimeHeight `[get, set]`

Rect	runtimeRect `[get, set]`

List< SerieData >	runtimeSortedData `[get]`

List< SerieData >	rootData `[get]`

bool	nameDirty `[get]`

double	yMax `[get]`
	维度Y对应数据中最大值。 More...

double	xMax `[get]`
	维度X对应数据中的最大值。 More...

double	yMin `[get]`
	维度Y对应数据的最小值。 More...

double	xMin `[get]`
	维度X对应数据的最小值。 More...

double	yTotal `[get]`
	维度Y数据的总和。 More...

double	xTotal `[get]`
	维度X数据的总和。 More...

Properties inherited from XCharts.ChartComponent
virtual bool	vertsDirty `[get]`
	图表重绘标记。 More...

virtual bool	componentDirty `[get]`
	组件重新初始化标记。 More...

bool	anyDirty `[get]`
	需要重绘图表或重新初始化组件。 More...

Painter	painter `[get, set]`

Action	refreshComponent `[get, set]`

GameObject	gameObject `[get, set]`

Detailed Description

系列。每个系列通过 type 决定自己的图表类型。

Definition at line 261 of file Serie.cs.

Member Function Documentation

◆ AddData() [1/2]

SerieData XCharts.Serie.AddData	(	double	open,
		double	close,
		double	lowest,
		double	heighest,
		string	dataName = `null`
	)

inline

添加 (open, close, lowest, heighest) 数据

Parameters

open
close
lowest
heighest
dataName

Returns

Definition at line 1481 of file Serie.cs.

         {
             CheckMaxCache();
             var serieData = SerieDataPool.Get();
             serieData.data.Clear();
             serieData.data.Add(open);
             serieData.data.Add(close);
             serieData.data.Add(lowest);
             serieData.data.Add(heighest);
             serieData.name = dataName;
             serieData.index = m_Data.Count;
             AddSerieDataHeadOrTail(serieData);
             m_ShowDataDimension = 4;
             SetVerticesDirty();
             CheckDataName(dataName);
             return serieData;
         }

◆ AddData() [2/2]

SerieData XCharts.Serie.AddData	(	List< double >	valueList,
		string	dataName = `null`
	)

inline

将一组数据添加到系列中。如果数据只有一个，默认添加到维度Y中。

Parameters

valueList
dataName
maxDataNumber

Definition at line 1506 of file Serie.cs.

         {
             if (valueList == null || valueList.Count == 0) return null;
             if (valueList.Count == 1)
             {
                 return AddYData(valueList[0], dataName);
             }
             else if (valueList.Count == 2)
             {
                 return AddXYData(valueList[0], valueList[1], dataName);
             }
             else
             {
                 CheckMaxCache();
                 m_ShowDataDimension = valueList.Count;
                 var serieData = SerieDataPool.Get();
                 serieData.name = dataName;
                 serieData.index = m_Data.Count;
                 for (int i = 0; i < valueList.Count; i++)
                 {
                     serieData.data.Add(valueList[i]);
                 }
                 AddSerieDataHeadOrTail(serieData);
                 SetVerticesDirty();
                 CheckDataName(dataName);
                 return serieData;
             }
         }

◆ AddXYData()

SerieData XCharts.Serie.AddXYData	(	double	xValue,
		double	yValue,
		string	dataName = `null`
	)

inline

添加（x，y）数据到维度X和维度Y

Parameters

xValue
yValue
dataName
maxDataNumber

Definition at line 1456 of file Serie.cs.

         {
             CheckMaxCache();
             var serieData = SerieDataPool.Get();
             serieData.data.Clear();
             serieData.data.Add(xValue);
             serieData.data.Add(yValue);
             serieData.name = dataName;
             serieData.index = m_Data.Count;
             AddSerieDataHeadOrTail(serieData);
             m_ShowDataDimension = 2;
             SetVerticesDirty();
             CheckDataName(dataName);
             return serieData;
         }

◆ AddYData()

SerieData XCharts.Serie.AddYData	(	double	value,
		string	dataName = `null`
	)

inline

添加一个数据到维度Y（此时维度X对应的数据是索引）

Parameters

value
dataName

Definition at line 1414 of file Serie.cs.

         {
             CheckMaxCache();
             int xValue = m_Data.Count;
             var serieData = SerieDataPool.Get();
             serieData.data.Add(xValue);
             serieData.data.Add(value);
             serieData.name = dataName;
             serieData.index = xValue;
             AddSerieDataHeadOrTail(serieData);
             m_ShowDataDimension = 1;
             SetVerticesDirty();
             CheckDataName(dataName);
             return serieData;
         }

◆ AnimationEnable()

void XCharts.Serie.AnimationEnable ( bool flag )

inline

启用或取消初始动画

Definition at line 1953 of file Serie.cs.

         {
             if (animation.enable) animation.enable = flag;
             if (markLine.show && markLine.animation.enable) markLine.animation.enable = flag;
             SetVerticesDirty();
         }

◆ AnimationFadeIn()

void XCharts.Serie.AnimationFadeIn ( )

inline

渐入动画

Definition at line 1963 of file Serie.cs.

         {
             if (animation.enable) animation.FadeIn();
             if (markLine.show && markLine.animation.enable) markLine.animation.FadeIn();
             SetVerticesDirty();
         }

◆ AnimationFadeOut()

void XCharts.Serie.AnimationFadeOut ( )

inline

渐出动画

Definition at line 1973 of file Serie.cs.

         {
             if (animation.enable) animation.FadeOut();
             if (markLine.show && markLine.animation.enable) markLine.animation.FadeOut();
             SetVerticesDirty();
         }

◆ AnimationPause()

void XCharts.Serie.AnimationPause ( )

inline

暂停动画

Definition at line 1983 of file Serie.cs.

         {
             if (animation.enable) animation.Pause();
             if (markLine.show && markLine.animation.enable) markLine.animation.Pause();
             SetVerticesDirty();
         }

◆ AnimationReset()

void XCharts.Serie.AnimationReset ( )

inline

重置动画

Definition at line 2003 of file Serie.cs.

         {
             if (animation.enable) animation.Reset();
             if (markLine.show && markLine.animation.enable) markLine.animation.Reset();
             SetVerticesDirty();
         }

◆ AnimationRestart()

void XCharts.Serie.AnimationRestart ( )

inline

重置动画

Definition at line 2012 of file Serie.cs.

         {
             if (animation.enable) animation.Restart();
             if (markLine.show && markLine.animation.enable) markLine.animation.Restart();
             SetVerticesDirty();
         }

◆ AnimationResume()

void XCharts.Serie.AnimationResume ( )

inline

继续动画

Definition at line 1993 of file Serie.cs.

         {
             if (animation.enable) animation.Resume();
             if (markLine.show && markLine.animation.enable) markLine.animation.Resume();
             SetVerticesDirty();
         }

◆ ClearData()

void XCharts.Serie.ClearData ( )

inline

清空所有数据

Definition at line 1364 of file Serie.cs.

         {
             while (m_Data.Count > 0)
             {
                 RemoveData(0);
             }
             m_Data.Clear();
             m_NeedUpdateFilterData = true;
             SetVerticesDirty();
         }

◆ ClearHighlight()

void XCharts.Serie.ClearHighlight ( )

inline

清除所有数据的高亮标志

Definition at line 1843 of file Serie.cs.

         {
             highlighted = false;
             foreach (var serieData in m_Data)
             {
                 serieData.highlighted = false;
             }
         }

◆ GetData()

double XCharts.Serie.GetData	(	int	index,
		int	dimension,
		DataZoom	dataZoom = `null`
	)

inline

获得指定index指定维数的数据

Parameters

index
dimension
dataZoom

Returns

Definition at line 1580 of file Serie.cs.

         {
             if (index < 0 || dimension < 0) return 0;
             var serieData = GetSerieData(index, dataZoom);
             if (serieData != null && dimension < serieData.data.Count)
             {
                 var value = serieData.GetData(dimension);
                 if (showAsPositiveNumber)
                 {
                     value = Math.Abs(value);
                 }
                 return value;
             }
             else
             {
                 return 0;
             }
         }

◆ GetDataList()

List<SerieData> XCharts.Serie.GetDataList ( DataZoom dataZoom = null )

inline

获得系列的数据列表

Parameters

dataZoom

Returns

Definition at line 1744 of file Serie.cs.

         {
             if (dataZoom != null && dataZoom.enable
                 && (dataZoom.IsContainsXAxis(xAxisIndex) || dataZoom.IsContainsYAxis(yAxisIndex)))
             {
                 SerieHelper.UpdateFilterData(this, dataZoom);
                 return m_FilterData;
             }
             else
             {
                 return runtimeSortedData.Count > 0 ? runtimeSortedData : m_Data;
             }
         }

◆ GetSerieData()

SerieData XCharts.Serie.GetSerieData	(	int	index,
		DataZoom	dataZoom = `null`
	)

inline

获得指定索引的数据项

Parameters

index
dataZoom

Returns

Definition at line 1667 of file Serie.cs.

         {
             var data = GetDataList(dataZoom);
             if (index >= 0 && index <= data.Count - 1)
             {
                 return data[index];
             }
             return null;
         }

◆ GetXYData()

void XCharts.Serie.GetXYData	(	int	index,
		DataZoom	dataZoom,
		out double	xValue,
		out double	yVlaue
	)

inline

获得指定索引的维度X和维度Y的数据

Parameters

index
dataZoom
xValue
yVlaue

Definition at line 1709 of file Serie.cs.

         {
             xValue = 0;
             yVlaue = 0;
             if (index < 0) return;
             var showData = GetDataList(dataZoom);
             if (index < showData.Count)
             {
                 var serieData = showData[index];
                 xValue = serieData.data[0];
                 yVlaue = serieData.data[1];
                 if (showAsPositiveNumber)
                 {
                     xValue = Math.Abs(xValue);
                     yVlaue = Math.Abs(yVlaue);
                 }
             }
         }

◆ GetYData() [1/2]

double XCharts.Serie.GetYData	(	int	index,
		DataZoom	dataZoom = `null`
	)

inline

获得维度Y索引对应的数据

Parameters

index
dataZoom

Returns

Definition at line 1605 of file Serie.cs.

         {
             if (index < 0) return 0;
             var serieData = GetDataList(dataZoom);
             if (index < serieData.Count)
             {
                 var value = serieData[index].data[1];
                 if (showAsPositiveNumber)
                 {
                     value = Math.Abs(value);
                 }
                 return value;
             }
             return 0;
         }

◆ GetYData() [2/2]

void XCharts.Serie.GetYData	(	int	index,
		out double	yData,
		out string	dataName,
		DataZoom	dataZoom = `null`
	)

inline

获得维度Y索引对应的数据和数据名

Parameters

index	索引
yData	对应的数据值
dataName	对应的数据名
dataZoom	区域缩放

Definition at line 1644 of file Serie.cs.

         {
             yData = 0;
             dataName = null;
             if (index < 0) return;
             var serieData = GetDataList(dataZoom);
             if (index < serieData.Count)
             {
                 yData = serieData[index].data[1];
                 if (showAsPositiveNumber)
                 {
                     yData = Math.Abs(yData);
                 }
                 dataName = serieData[index].name;
             }
         }

◆ IsPerformanceMode()

bool XCharts.Serie.IsPerformanceMode ( )

inline

是否为性能模式。只有折线图和柱状图才有性能模式。性能模式下不绘制Symbol，不刷新Label，不单独设置数据项配置。

Definition at line 1903 of file Serie.cs.

         {
             if (m_Type == SerieType.Line || m_Type == SerieType.Bar)
                 return m_Large && m_Data.Count > m_LargeThreshold;
             else
                 return false;
         }

◆ ParseJsonData()

void XCharts.Serie.ParseJsonData ( string jsonData )

inline

从json中导入数据

Parameters

jsonData

Definition at line 2023 of file Serie.cs.

         {
             if (string.IsNullOrEmpty(jsonData)) return;
             jsonData = jsonData.Replace("\r\n", "");
             jsonData = jsonData.Replace(" ", "");
             jsonData = jsonData.Replace("\n", "");
             int startIndex = jsonData.IndexOf("[");
             int endIndex = jsonData.LastIndexOf("]");
             if (startIndex == -1 || endIndex == -1)
             {
                 Debug.LogError("json data need include in [ ]");
                 return;
             }
             ClearData();
             string temp = jsonData.Substring(startIndex + 1, endIndex - startIndex - 1);
             if (temp.IndexOf("],") > -1 || temp.IndexOf("] ,") > -1)
             {
                 string[] datas = temp.Split(new string[] { "],", "] ," }, StringSplitOptions.RemoveEmptyEntries);
                 for (int i = 0; i < datas.Length; i++)
                 {
                     var data = datas[i].Split(new char[] { '[', ',' }, StringSplitOptions.RemoveEmptyEntries);
                     var serieData = new SerieData();
                     for (int j = 0; j < data.Length; j++)
                     {
                         var txt = data[j].Trim().Replace("]", "");
                         double value;
                         var flag = double.TryParse(txt, out value);
                         if (flag)
                         {
                             serieData.data.Add(value);
                         }
                         else serieData.name = txt.Replace("\"", "").Trim();
                     }
                     AddSerieDataHeadOrTail(serieData);
                 }
             }
             else if (temp.IndexOf("value") > -1 && temp.IndexOf("name") > -1)
             {
                 string[] datas = temp.Split(new string[] { "},", "} ,", "}" }, StringSplitOptions.RemoveEmptyEntries);
                 for (int i = 0; i < datas.Length; i++)
                 {
                     var arr = datas[i].Replace("{", "").Split(',');
                     var serieData = new SerieData();
                     foreach (var a in arr)
                     {
                         if (a.StartsWith("value:"))
                         {
                             double value = double.Parse(a.Substring(6, a.Length - 6));
                             serieData.data = new List<double>() { i, value };
                         }
                         else if (a.StartsWith("name:"))
                         {
                             string name = a.Substring(6, a.Length - 6 - 1);
                             serieData.name = name;
                         }
                         else if (a.StartsWith("selected:"))
                         {
                             string selected = a.Substring(9, a.Length - 9);
                             serieData.selected = bool.Parse(selected);
                         }
                     }
                     AddSerieDataHeadOrTail(serieData);
                 }
             }
             else
             {
                 string[] datas = temp.Split(',');
                 for (int i = 0; i < datas.Length; i++)
                 {
                     double value;
                     var flag = double.TryParse(datas[i].Trim(), out value);
                     if (flag)
                     {
                         var serieData = new SerieData();
                         serieData.data = new List<double>() { i, value };
                         AddSerieDataHeadOrTail(serieData);
                     }
                 }
             }
             SetAllDirty();
         }

◆ RemoveData()

void XCharts.Serie.RemoveData ( int index )

inline

移除指定索引的数据

Parameters

index

Definition at line 1379 of file Serie.cs.

         {
             if (index >= 0 && index < m_Data.Count)
             {
                 if (!string.IsNullOrEmpty(m_Data[index].name))
                 {
                     SetNameDirty();
                 }
                 SetVerticesDirty();
                 var serieData = m_Data[index];
                 SerieDataPool.Release(serieData);
                 if (serieData.labelObject != null)
                 {
                     SerieLabelPool.Release(serieData.labelObject.gameObject);
                 }
                 if (m_UpSmoothPoints.ContainsKey(serieData.index))
                 {
                     ListPool<Vector3>.Release(m_UpSmoothPoints[serieData.index]);
                     m_UpSmoothPoints.Remove(serieData.index);
                 }
                 if (m_DownSmoothPoints.ContainsKey(serieData.index))
                 {
                     ListPool<Vector3>.Release(m_DownSmoothPoints[serieData.index]);
                     m_DownSmoothPoints.Remove(serieData.index);
                 }
                 m_Data.RemoveAt(index);
                 m_NeedUpdateFilterData = true;
             }
         }

◆ SetDataIconColor()

void XCharts.Serie.SetDataIconColor	(	int	dataIndex,
		Color	color
	)

inline

设置指定index的数据图标的颜色

Parameters

dataIndex
color

Definition at line 1941 of file Serie.cs.

         {
             if (dataIndex >= 0 && dataIndex < m_Data.Count)
             {
                 var data = m_Data[dataIndex];
                 data.iconStyle.color = color;
             }
         }

◆ SetDataIconSize()

void XCharts.Serie.SetDataIconSize	(	int	dataIndex,
		float	width,
		float	height
	)

inline

设置指定index的数据图标的尺寸

Parameters

dataIndex
width
height

Definition at line 1926 of file Serie.cs.

         {
             if (dataIndex >= 0 && dataIndex < m_Data.Count)
             {
                 var data = m_Data[dataIndex];
                 data.iconStyle.width = width;
                 data.iconStyle.height = height;
             }
         }

◆ SetHighlight()

void XCharts.Serie.SetHighlight	(	int	index,
		bool	flag
	)

inline

设置指定索引的数据为高亮状态

Definition at line 1855 of file Serie.cs.

         {
             var serieData = GetSerieData(index);
             if (serieData != null)
             {
                 serieData.highlighted = flag;
             }
         }

◆ UpdateData() [1/2]

bool XCharts.Serie.UpdateData	(	int	index,
		int	dimension,
		double	value
	)

inline

更新指定索引指定维数的数据

Parameters

index	要更新数据的索引
dimension	要更新数据的维数
value	新的数据值

Definition at line 1788 of file Serie.cs.

         {
             if (index >= 0 && index < m_Data.Count)
             {
                 var animationOpen = animation.enable;
                 var animationDuration = animation.GetUpdateAnimationDuration();
                 var flag = m_Data[index].UpdateData(dimension, value, animationOpen, animationDuration);
                 if (flag) SetVerticesDirty();
                 return flag;
             }
             else
             {
                 return false;
             }
         }

◆ UpdateData() [2/2]

bool XCharts.Serie.UpdateData	(	int	index,
		List< double >	values
	)

inline

更新指定索引的数据项数据列表

Parameters

index
values

Definition at line 1809 of file Serie.cs.

         {
             if (index >= 0 && index < m_Data.Count && values != null)
             {
                 var serieData = m_Data[index];
                 var animationOpen = animation.enable;
                 var animationDuration = animation.GetUpdateAnimationDuration();
                 for (int i = 0; i < values.Count; i++)
                     serieData.UpdateData(i, values[i], animationOpen, animationDuration);
                 SetVerticesDirty();
                 return true;
             }
             return false;
         }

◆ UpdateXYData()

bool XCharts.Serie.UpdateXYData	(	int	index,
		float	xValue,
		float	yValue
	)

inline

更新指定索引的维度X和维度Y的数据

Parameters

index
xValue
yValue

Definition at line 1775 of file Serie.cs.

         {
             var flag1 = UpdateData(index, 0, xValue);
             var flag2 = UpdateData(index, 1, yValue);
             return flag1 || flag2;
         }

◆ UpdateYData()

bool XCharts.Serie.UpdateYData	(	int	index,
		double	value
	)

inline

更新指定索引的维度Y数据

Parameters

index
value

Definition at line 1763 of file Serie.cs.

         {
             UpdateData(index, 1, value);
             return true;
         }

Property Documentation

◆ align

Align XCharts.Serie.align

getset

组件水平方向对齐方式。

Definition at line 1079 of file Serie.cs.

         {
             get { return m_Align; }
             set { if (PropertyUtil.SetStruct(ref m_Align, value)) SetVerticesDirty(); }
         }

◆ animation

SerieAnimation XCharts.Serie.animation

getset

The start animation. 起始动画。

Definition at line 830 of file Serie.cs.

         {
             get { return m_Animation; }
             set { if (PropertyUtil.SetClass(ref m_Animation, value, true)) SetVerticesDirty(); }
         }

◆ areaStyle

AreaStyle XCharts.Serie.areaStyle

getset

The style of area. 区域填充样式。

Definition at line 492 of file Serie.cs.

         {
             get { return m_AreaStyle; }
             set { if (PropertyUtil.SetClass(ref m_AreaStyle, value, true)) SetVerticesDirty(); }
         }

◆ avoidLabelOverlap

bool XCharts.Serie.avoidLabelOverlap

getset

在饼图且标签外部显示的情况下，是否启用防止标签重叠策略，默认关闭，在标签拥挤重叠的情况下会挪动各个标签的位置，防止标签间的重叠。

Definition at line 947 of file Serie.cs.

         {
             get { return m_AvoidLabelOverlap; }
             set { if (PropertyUtil.SetStruct(ref m_AvoidLabelOverlap, value)) SetVerticesDirty(); }
         }

◆ barCategoryGap

float XCharts.Serie.barCategoryGap

getset

The bar gap of a single series, defaults to be 20% of the category gap, can be set as a fixed value. In a single coodinate system, this attribute is shared by multiple 'bar' series. This attribute should be set on the last 'bar' series in the coodinate system, then it will be adopted by all 'bar' series in the coordinate system. 同一系列的柱间距离，默认为类目间距的20，可设固定值。在同一坐标系上，此属性会被多个 'bar' 系列共享。此属性应设置于此坐标系中最后一个 'bar' 系列上才会生效，并且是对此坐标系中所有 'bar' 系列生效。

Definition at line 598 of file Serie.cs.

         {
             get { return m_BarCategoryGap; }
             set { if (PropertyUtil.SetStruct(ref m_BarCategoryGap, value)) SetVerticesDirty(); }
         }

◆ barGap

float XCharts.Serie.barGap

getset

The gap between bars between different series, is a percent value like '0.3f' , which means 30% of the bar width, can be set as a fixed value.

Set barGap as '-1' can overlap bars that belong to different series, which is useful when making a series of bar be background. In a single coodinate system, this attribute is shared by multiple 'bar' series. This attribute should be set on the last 'bar' series in the coodinate system, then it will be adopted by all 'bar' series in the coordinate system.

不同系列的柱间距离。为百分比（如 '0.3f'，表示柱子宽度的 30）如果想要两个系列的柱子重叠，可以设置 barGap 为 '-1f'。这在用柱子做背景的时候有用。在同一坐标系上，此属性会被多个 'bar' 系列共享。此属性应设置于此坐标系中最后一个 'bar' 系列上才会生效，并且是对此坐标系中所有 'bar' 系列生效。

Definition at line 585 of file Serie.cs.

         {
             get { return m_BarGap; }
             set { if (PropertyUtil.SetStruct(ref m_BarGap, value)) SetVerticesDirty(); }
         }

◆ barPercentStack

bool XCharts.Serie.barPercentStack

getset

柱形图是否为百分比堆积。相同stack的serie只要有一个barPercentStack为true，则就显示成百分比堆叠柱状图。

Definition at line 561 of file Serie.cs.

         {
             get { return m_BarPercentStack; }
             set { if (PropertyUtil.SetStruct(ref m_BarPercentStack, value)) SetVerticesDirty(); }
         }

◆ barType

BarType XCharts.Serie.barType

getset

柱形图类型。

Definition at line 553 of file Serie.cs.

         {
             get { return m_BarType; }
             set { if (PropertyUtil.SetStruct(ref m_BarType, value)) SetVerticesDirty(); }
         }

◆ barWidth

float XCharts.Serie.barWidth

getset

The width of the bar. Adaptive when default 0. 柱条的宽度，不设时自适应。支持设置成相对于类目宽度的百分比。

Definition at line 570 of file Serie.cs.

         {
             get { return m_BarWidth; }
             set { if (PropertyUtil.SetStruct(ref m_BarWidth, value)) SetVerticesDirty(); }
         }

◆ barZebraGap

float? XCharts.Serie.barZebraGap

getset

斑马线的间距。

Definition at line 614 of file Serie.cs.

         {
             get { return m_BarZebraGap; }
             set { if (PropertyUtil.SetStruct(ref m_BarZebraGap, value < 0 ? 0 : value)) SetVerticesDirty(); }
         }

◆ barZebraWidth

float? XCharts.Serie.barZebraWidth

getset

斑马线的粗细。

Definition at line 606 of file Serie.cs.

         {
             get { return m_BarZebraWidth; }
             set { if (PropertyUtil.SetStruct(ref m_BarZebraWidth, value < 0 ? 0 : value)) SetVerticesDirty(); }
         }

◆ bottom

float XCharts.Serie.bottom

getset

Distance between component and the bottom side of the container. 组件离容器下侧的距离。

Definition at line 1016 of file Serie.cs.

         {
             get { return m_Bottom; }
             set { if (PropertyUtil.SetStruct(ref m_Bottom, value)) SetAllDirty(); }
         }

◆ center

float [] XCharts.Serie.center

getset

the center of chart. 中心点。

Definition at line 656 of file Serie.cs.

         {
             get { return m_Center; }
             set { if (value != null && value.Length == 2) { m_Center = value; SetVerticesDirty(); } }
         }

◆ clip

bool XCharts.Serie.clip

getset

If clip the overflow on the coordinate system. 是否裁剪超出坐标系部分的图形。

Definition at line 898 of file Serie.cs.

         {
             get { return m_Clip; }
             set { if (PropertyUtil.SetStruct(ref m_Clip, value)) SetVerticesDirty(); }
         }

◆ clockwise

bool XCharts.Serie.clockwise

getset

是否顺时针。

Definition at line 730 of file Serie.cs.

         {
             get { return m_Clockwise; }
             set { if (PropertyUtil.SetStruct(ref m_Clockwise, value)) SetVerticesDirty(); }
         }

◆ data

List<SerieData> XCharts.Serie.data

get

系列中的数据内容数组。SerieData可以设置1到n维数据。

Definition at line 1086 of file Serie.cs.

1086 { get { return m_Data; } }

◆ dataCount

int XCharts.Serie.dataCount

get

the count of data list. 数据项个数。

Definition at line 1155 of file Serie.cs.

1155 { get { return m_Data.Count; } }

◆ dataPoints

List<Vector3> XCharts.Serie.dataPoints

get

数据项位置坐标。

Definition at line 1159 of file Serie.cs.

1159 { get { return m_DataPoints; } }

◆ dataSortType

SerieDataSortType XCharts.Serie.dataSortType

getset

组件的数据排序。

Definition at line 1063 of file Serie.cs.

         {
             get { return m_DataSortType; }
             set { if (PropertyUtil.SetStruct(ref m_DataSortType, value)) SetVerticesDirty(); }
         }

◆ emphasis

Emphasis XCharts.Serie.emphasis

getset

高亮的图形样式和文本标签样式。

Definition at line 856 of file Serie.cs.

         {
             get { return m_Emphasis; }
             set { if (PropertyUtil.SetClass(ref m_Emphasis, value, true)) SetVerticesDirty(); }
         }

◆ endAngle

float XCharts.Serie.endAngle

getset

结束角度。和时钟一样，12点钟位置是0度，顺时针到360度。

Definition at line 713 of file Serie.cs.

         {
             get { return m_EndAngle; }
             set { if (PropertyUtil.SetStruct(ref m_EndAngle, value)) SetVerticesDirty(); }
         }

◆ gaugeAxis

GaugeAxis XCharts.Serie.gaugeAxis

getset

仪表盘轴线。

Definition at line 796 of file Serie.cs.

         {
             get { return m_GaugeAxis; }
             set { if (PropertyUtil.SetClass(ref m_GaugeAxis, value, true)) SetVerticesDirty(); }
         }

◆ gaugePointer

GaugePointer XCharts.Serie.gaugePointer

getset

仪表盘指针。

Definition at line 804 of file Serie.cs.

         {
             get { return m_GaugePointer; }
             set { if (PropertyUtil.SetClass(ref m_GaugePointer, value, true)) SetVerticesDirty(); }
         }

◆ gaugeType

GaugeType XCharts.Serie.gaugeType

getset

仪表盘类型。

Definition at line 812 of file Serie.cs.

         {
             get { return m_GaugeType; }
             set { if (PropertyUtil.SetStruct(ref m_GaugeType, value)) SetVerticesDirty(); }
         }

◆ highlighted

bool XCharts.Serie.highlighted

getset

Whether the serie is highlighted. 该系列是否高亮，一般由图例悬停触发。

Definition at line 1150 of file Serie.cs.

1150 { get; internal set; }

◆ iconStyle

IconStyle XCharts.Serie.iconStyle

getset

the icon of data. 数据项图标样式。

Definition at line 881 of file Serie.cs.

         {
             get { return m_IconStyle; }
             set { if (PropertyUtil.SetClass(ref m_IconStyle, value, true)) SetAllDirty(); }
         }

◆ ignore

bool XCharts.Serie.ignore

getset

是否开启忽略数据。当为 true 时，数据值为 ignoreValue 时不进行绘制。

Definition at line 763 of file Serie.cs.

         {
             get { return m_Ignore; }
             set { if (PropertyUtil.SetStruct(ref m_Ignore, value)) SetVerticesDirty(); }
         }

◆ ignoreLineBreak

bool XCharts.Serie.ignoreLineBreak

getset

忽略数据时折线是断开还是连接。默认false为连接。

Definition at line 780 of file Serie.cs.

         {
             get { return m_IgnoreLineBreak; }
             set { if (PropertyUtil.SetStruct(ref m_IgnoreLineBreak, value)) SetVerticesDirty(); }
         }

◆ ignoreValue

double XCharts.Serie.ignoreValue

getset

忽略数据的默认值。当ignore为true才有效。

Definition at line 771 of file Serie.cs.

         {
             get { return m_IgnoreValue; }
             set { if (PropertyUtil.SetStruct(ref m_IgnoreValue, value)) SetVerticesDirty(); }
         }

◆ index

int XCharts.Serie.index

getset

The index of serie,start at 0. 系列的索引，从0开始。

Definition at line 1145 of file Serie.cs.

1145 { get; internal set; }

◆ insertDataToHead

bool XCharts.Serie.insertDataToHead

getset

Whether to add new data at the head or at the end of the list. 添加新数据时是在列表的头部还是尾部加入。

Definition at line 1055 of file Serie.cs.

         {
             get { return m_InsertDataToHead; }
             set { if (PropertyUtil.SetStruct(ref m_InsertDataToHead, value)) SetAllDirty(); }
         }

◆ itemStyle

ItemStyle XCharts.Serie.itemStyle

getset

The style of data item. 图形样式。

Definition at line 848 of file Serie.cs.

         {
             get { return m_ItemStyle; }
             set { if (PropertyUtil.SetClass(ref m_ItemStyle, value, true)) SetVerticesDirty(); }
         }

◆ label

SerieLabel XCharts.Serie.label

getset

Text label of graphic element,to explain some data information about graphic item like value, name and so on. 图形上的文本标签，可用于说明图形的一些数据信息，比如值，名称等。

Definition at line 821 of file Serie.cs.

         {
             get { return m_Label; }
             set { if (PropertyUtil.SetClass(ref m_Label, value, true)) SetAllDirty(); }
         }

◆ large

bool XCharts.Serie.large

getset

是否开启大数据量优化，在数据图形特别多而出现卡顿时候可以开启。开启后配合 largeThreshold 在数据量大于指定阈值的时候对绘制进行优化。缺点：优化后不能自定义设置单个数据项的样式，不能显示Label。

Definition at line 917 of file Serie.cs.

         {
             get { return m_Large; }
             set
             {
                 if (PropertyUtil.SetStruct(ref m_Large, value))
                 {
                     SetAllDirty();
                     label.SetComponentDirty();
                 }
             }
         }

◆ largeThreshold

int XCharts.Serie.largeThreshold

getset

开启大数量优化的阈值。只有当开启了large并且数据量大于该阀值时才进入性能模式。

Definition at line 932 of file Serie.cs.

         {
             get { return m_LargeThreshold; }
             set
             {
                 if (PropertyUtil.SetStruct(ref m_LargeThreshold, value))
                 {
                     SetAllDirty();
                     label.SetComponentDirty();
                 }
             }
         }

◆ left

float XCharts.Serie.left

getset

Distance between component and the left side of the container. 组件离容器左侧的距离。

Definition at line 989 of file Serie.cs.

         {
             get { return m_Left; }
             set { if (PropertyUtil.SetStruct(ref m_Left, value)) SetAllDirty(); }
         }

◆ legendName

string? XCharts.Serie.legendName

get

Legend name. When the serie name is not empty, the legend name is the series name; Otherwise, it is index. 图例名称。当系列名称不为空时，图例名称即为系列名称；反之则为索引index。

Definition at line 403 of file Serie.cs.

403 { get { return string.IsNullOrEmpty(name) ? ChartCached.IntToStr(index) : name; } }

◆ lineArrow

LineArrow XCharts.Serie.lineArrow

getset

The arrow of line. 折线图的箭头。

Definition at line 839 of file Serie.cs.

         {
             get { return m_LineArrow; }
             set { if (PropertyUtil.SetClass(ref m_LineArrow, value, true)) SetVerticesDirty(); }
         }

◆ lineStyle

LineStyle XCharts.Serie.lineStyle

getset

The style of line. 线条样式。

Definition at line 545 of file Serie.cs.

         {
             get { return m_LineStyle; }
             set { if (PropertyUtil.SetClass(ref m_LineStyle, value, true)) SetVerticesDirty(); }
         }

◆ lineType

LineType XCharts.Serie.lineType

getset

The type of line chart. 折线图样式类型。

Definition at line 510 of file Serie.cs.

         {
             get { return m_LineType; }
             set { if (PropertyUtil.SetStruct(ref m_LineType, value)) SetVerticesDirty(); }
         }

◆ markLine

MarkLine XCharts.Serie.markLine

getset

标线。

Definition at line 872 of file Serie.cs.

         {
             get { return m_MarkLine; }
             set { if (PropertyUtil.SetClass(ref m_MarkLine, value, true)) SetAllDirty(); }
         }

◆ max

float XCharts.Serie.max

getset

最大值。

Definition at line 681 of file Serie.cs.

         {
             get { return m_Max; }
             set { if (PropertyUtil.SetStruct(ref m_Max, value)) SetVerticesDirty(); }
         }

◆ maxCache

int? XCharts.Serie.maxCache

getset

The max number of serie data cache. The first data will be remove when the size of serie data is larger then maxCache. default:0,unlimited. 系列中可缓存的最大数据量。默认为0没有限制，大于0时超过指定值会移除旧数据再插入新数据。

Definition at line 483 of file Serie.cs.

         {
             get { return m_MaxCache; }
             set { if (PropertyUtil.SetStruct(ref m_MaxCache, value < 0 ? 0 : value)) { SetVerticesDirty(); } }
         }

◆ maxShow

int? XCharts.Serie.maxShow

getset

The max number of data to show in chart. 系列所显示数据的最大索引

Definition at line 472 of file Serie.cs.

         {
             get { return m_MaxShow; }
             set { if (PropertyUtil.SetStruct(ref m_MaxShow, value < 0 ? 0 : value)) { SetVerticesDirty(); } }
         }

◆ maxSize

float XCharts.Serie.maxSize

getset

数据最大值 max 映射的宽度。

Definition at line 697 of file Serie.cs.

         {
             get { return m_MaxSize; }
             set { if (PropertyUtil.SetStruct(ref m_MaxSize, value)) SetVerticesDirty(); }
         }

◆ min

float XCharts.Serie.min

getset

最小值。

Definition at line 673 of file Serie.cs.

         {
             get { return m_Min; }
             set { if (PropertyUtil.SetStruct(ref m_Min, value)) SetVerticesDirty(); }
         }

◆ minAngle

float XCharts.Serie.minAngle

getset

The minimum angle of sector(0-360). It prevents some sector from being too small when value is small. 最小的扇区角度（0-360）。用于防止某个值过小导致扇区太小影响交互。

Definition at line 722 of file Serie.cs.

         {
             get { return m_MinAngle; }
             set { if (PropertyUtil.SetStruct(ref m_MinAngle, value)) SetVerticesDirty(); }
         }

◆ minShow

int? XCharts.Serie.minShow

getset

The min number of data to show in chart. 系列所显示数据的最小索引

Definition at line 463 of file Serie.cs.

         {
             get { return m_MinShow; }
             set { if (PropertyUtil.SetStruct(ref m_MinShow, value < 0 ? 0 : value)) { SetVerticesDirty(); } }
         }

◆ minSize

float XCharts.Serie.minSize

getset

数据最小值 min 映射的宽度。

Definition at line 689 of file Serie.cs.

         {
             get { return m_MinSize; }
             set { if (PropertyUtil.SetStruct(ref m_MinSize, value)) SetVerticesDirty(); }
         }

◆ name

string XCharts.Serie.name

getset

Series name used for displaying in tooltip and filtering with legend. 系列名称，用于 tooltip 的显示，legend 的图例筛选。

Definition at line 395 of file Serie.cs.

         {
             get { return m_Name; }
             set { if (PropertyUtil.SetClass(ref m_Name, value)) { SetVerticesDirty(); SetNameDirty(); } }
         }

◆ orient

Orient XCharts.Serie.orient

getset

组件的朝向。

Definition at line 1071 of file Serie.cs.

         {
             get { return m_Orient; }
             set { if (PropertyUtil.SetStruct(ref m_Orient, value)) SetVerticesDirty(); }
         }

◆ pieClickOffset

bool XCharts.Serie.pieClickOffset

getset

Whether offset when mouse click pie chart item. 鼠标点击时是否开启偏移，一般用在PieChart图表中。

Definition at line 624 of file Serie.cs.

         {
             get { return m_ClickOffset; }
             set { if (PropertyUtil.SetStruct(ref m_ClickOffset, value)) SetVerticesDirty(); }
         }

◆ pieRoseType

RoseType XCharts.Serie.pieRoseType

getset

Whether to show as Nightingale chart. 是否展示成南丁格尔图，通过半径区分数据大小。

Definition at line 633 of file Serie.cs.

         {
             get { return m_RoseType; }
             set { if (PropertyUtil.SetStruct(ref m_RoseType, value)) SetVerticesDirty(); }
         }

◆ pieSpace

float XCharts.Serie.pieSpace

getset

the space of pie chart item. 饼图项间的空隙留白。

Definition at line 642 of file Serie.cs.

         {
             get { return m_Space; }
             set { if (PropertyUtil.SetStruct(ref m_Space, value)) SetVerticesDirty(); }
         }

◆ polarIndex

int XCharts.Serie.polarIndex

getset

Index of polar component that serie uses. 所使用的 polar 组件的 index。

Definition at line 454 of file Serie.cs.

         {
             get { return m_PolarIndex; }
             set { if (PropertyUtil.SetStruct(ref m_PolarIndex, value)) SetVerticesDirty(); }
         }

◆ radarIndex

int XCharts.Serie.radarIndex

getset

Index of radar component that radar chart uses. 雷达图所使用的 radar 组件的 index。

Definition at line 436 of file Serie.cs.

         {
             get { return m_RadarIndex; }
             set { if (PropertyUtil.SetStruct(ref m_RadarIndex, value)) SetVerticesDirty(); }
         }

◆ radarType

RadarType XCharts.Serie.radarType

getset

雷达图类型。

Definition at line 788 of file Serie.cs.

         {
             get { return m_RadarType; }
             set { if (PropertyUtil.SetStruct(ref m_RadarType, value)) SetVerticesDirty(); }
         }

◆ radius

float [] XCharts.Serie.radius

getset

the radius of chart. 半径。radius[0]表示内径，radius[1]表示外径。

Definition at line 665 of file Serie.cs.

         {
             get { return m_Radius; }
             set { if (value != null && value.Length == 2) { m_Radius = value; SetVerticesDirty(); } }
         }

◆ right

float XCharts.Serie.right

getset

Distance between component and the right side of the container. 组件离容器右侧的距离。

Definition at line 998 of file Serie.cs.

         {
             get { return m_Right; }
             set { if (PropertyUtil.SetStruct(ref m_Right, value)) SetAllDirty(); }
         }

◆ ringGap

float XCharts.Serie.ringGap

getset

环形图的环间隙。

Definition at line 739 of file Serie.cs.

         {
             get { return m_RingGap; }
             set { if (PropertyUtil.SetStruct(ref m_RingGap, value)) SetVerticesDirty(); }
         }

◆ roundCap

bool XCharts.Serie.roundCap

getset

是否开启圆弧效果。

Definition at line 755 of file Serie.cs.

         {
             get { return m_RoundCap; }
             set { if (PropertyUtil.SetStruct(ref m_RoundCap, value)) SetVerticesDirty(); }
         }

◆ runtimeCenterPos

Vector3 XCharts.Serie.runtimeCenterPos

getset

饼图的中心点位置。

Definition at line 1163 of file Serie.cs.

1163 { get; internal set; }

◆ runtimeDataMax

double XCharts.Serie.runtimeDataMax

getset

运行时的最大数据值

Definition at line 1175 of file Serie.cs.

1175 { get; internal set; }

◆ runtimeDataMin

double XCharts.Serie.runtimeDataMin

getset

运行时的最小数据值

Definition at line 1179 of file Serie.cs.

1179 { get; internal set; }

◆ runtimeInsideRadius

float XCharts.Serie.runtimeInsideRadius

getset

饼图的内径

Definition at line 1167 of file Serie.cs.

1167 { get; internal set; }

◆ runtimeOutsideRadius

float XCharts.Serie.runtimeOutsideRadius

getset

饼图的外径

Definition at line 1171 of file Serie.cs.

1171 { get; internal set; }

◆ runtimePieDataTotal

double XCharts.Serie.runtimePieDataTotal

getset

饼图的数据项之和

Definition at line 1183 of file Serie.cs.

1183 { get; internal set; }

◆ sampleAverage

float XCharts.Serie.sampleAverage

getset

设定的采样平均值。当sampleType 为 Peak 时，用于和过滤数据的平均值做对比是取最大值还是最小值。默认为0时会实时计算所有数据的平均值。

Definition at line 536 of file Serie.cs.

         {
             get { return m_SampleAverage; }
             set { if (PropertyUtil.SetStruct(ref m_SampleAverage, value)) SetVerticesDirty(); }
         }

◆ sampleDist

float? XCharts.Serie.sampleDist

getset

the min pixel dist of sample. 采样的最小像素距离，默认为0时不采样。当两个数据点间的水平距离小于改值时，开启采样，保证两点间的水平距离不小于改值。

Definition at line 519 of file Serie.cs.

         {
             get { return m_SampleDist; }
             set { if (PropertyUtil.SetStruct(ref m_SampleDist, value < 0 ? 0 : value)) SetVerticesDirty(); }
         }

◆ sampleType

SampleType XCharts.Serie.sampleType

getset

the type of sample. 采样类型。当sampleDist大于0时有效。

Definition at line 528 of file Serie.cs.

         {
             get { return m_SampleType; }
             set { if (PropertyUtil.SetStruct(ref m_SampleType, value)) SetVerticesDirty(); }
         }

◆ show

bool XCharts.Serie.show

getset

Whether to show serie in chart. 系列是否显示在图表上。

Definition at line 377 of file Serie.cs.

         {
             get { return m_Show; }
             set { if (PropertyUtil.SetStruct(ref m_Show, value)) { SetVerticesDirty(); SetNameDirty(); } }
         }

◆ showAsPositiveNumber

bool XCharts.Serie.showAsPositiveNumber

getset

Show negative number as positive number. 将负数数值显示为正数。一般和AxisLabel的showAsPositiveNumber配合使用。仅在折线图和柱状图中有效。

Definition at line 907 of file Serie.cs.

         {
             get { return m_ShowAsPositiveNumber; }
             set { if (PropertyUtil.SetStruct(ref m_ShowAsPositiveNumber, value)) SetComponentDirty(); }
         }

◆ showDataDimension

int XCharts.Serie.showDataDimension

getset

数据项里的数据维数。

Definition at line 888 of file Serie.cs.

888 { get { return m_ShowDataDimension; } set { m_ShowDataDimension = value; } }

◆ showDataName

bool XCharts.Serie.showDataName

getset

在Editor的inpsector上是否显示name参数

Definition at line 892 of file Serie.cs.

892 { get { return m_ShowDataName; } set { m_ShowDataName = value; } }

◆ splitNumber

int? XCharts.Serie.splitNumber

getset

刻度分割段数。最大可设置36。

Definition at line 747 of file Serie.cs.

         {
             get { return m_SplitNumber; }
             set { if (PropertyUtil.SetStruct(ref m_SplitNumber, value > 36 ? 36 : value)) SetVerticesDirty(); }
         }

◆ stack

string XCharts.Serie.stack

getset

If stack the value. On the same category axis, the series with the same stack name would be put on top of each other. 数据堆叠，同个类目轴上系列配置相同的stack值后，后一个系列的值会在前一个系列的值上相加。

Definition at line 409 of file Serie.cs.

         {
             get { return m_Stack; }
             set { if (PropertyUtil.SetClass(ref m_Stack, value)) SetVerticesDirty(); }
         }

◆ startAngle

float XCharts.Serie.startAngle

getset

起始角度。和时钟一样，12点钟位置是0度，顺时针到360度。

Definition at line 705 of file Serie.cs.

         {
             get { return m_StartAngle; }
             set { if (PropertyUtil.SetStruct(ref m_StartAngle, value)) SetVerticesDirty(); }
         }

◆ symbol

SerieSymbol XCharts.Serie.symbol

getset

the symbol of serie data item. 标记的图形。

Definition at line 501 of file Serie.cs.

         {
             get { return m_Symbol; }
             set { if (PropertyUtil.SetClass(ref m_Symbol, value, true)) SetVerticesDirty(); }
         }

◆ titleStyle

TitleStyle XCharts.Serie.titleStyle

getset

标题样式。

Definition at line 864 of file Serie.cs.

         {
             get { return m_TitleStyle; }
             set { if (PropertyUtil.SetClass(ref m_TitleStyle, value, true)) SetAllDirty(); }
         }

◆ top

float XCharts.Serie.top

getset

Distance between component and the top side of the container. 组件离容器上侧的距离。

Definition at line 1007 of file Serie.cs.

         {
             get { return m_Top; }
             set { if (PropertyUtil.SetStruct(ref m_Top, value)) SetAllDirty(); }
         }

◆ type

SerieType XCharts.Serie.type

getset

the chart type of serie. 系列的图表类型。

Definition at line 386 of file Serie.cs.

         {
             get { return m_Type; }
             set { if (PropertyUtil.SetStruct(ref m_Type, value)) SetVerticesDirty(); }
         }

◆ vesselIndex

int XCharts.Serie.vesselIndex

getset

Index of vesel component that liquid chart uses. 水位图所使用的 vessel 组件的 index。

Definition at line 445 of file Serie.cs.

         {
             get { return m_VesselIndex; }
             set { if (PropertyUtil.SetStruct(ref m_VesselIndex, value)) SetVerticesDirty(); }
         }

◆ waveHeight

float XCharts.Serie.waveHeight

getset

波高。

Definition at line 964 of file Serie.cs.

         {
             get { return m_WaveHeight; }
             set { if (PropertyUtil.SetStruct(ref m_WaveHeight, value)) SetVerticesDirty(); }
         }

◆ waveLength

float XCharts.Serie.waveLength

getset

Wave length of the wave, which is relative to the diameter. 波长。为0-1小数时指直线的百分比。

Definition at line 956 of file Serie.cs.

         {
             get { return m_WaveLength; }
             set { if (PropertyUtil.SetStruct(ref m_WaveLength, value)) SetVerticesDirty(); }
         }

◆ waveOffset

float XCharts.Serie.waveOffset

getset

波偏移。

Definition at line 972 of file Serie.cs.

         {
             get { return m_WaveOffset; }
             set { if (PropertyUtil.SetStruct(ref m_WaveOffset, value)) SetVerticesDirty(); }
         }

◆ waveSpeed

float XCharts.Serie.waveSpeed

getset

波速。正数时左移，负数时右移。

Definition at line 980 of file Serie.cs.

         {
             get { return m_WaveSpeed; }
             set { if (PropertyUtil.SetStruct(ref m_WaveSpeed, value)) SetVerticesDirty(); }
         }

◆ xAxisIndex

int XCharts.Serie.xAxisIndex

getset

the index of XAxis. 使用X轴的index。

Definition at line 418 of file Serie.cs.

         {
             get { return m_XAxisIndex; }
             set { if (PropertyUtil.SetStruct(ref m_XAxisIndex, value)) SetVerticesDirty(); }
         }

◆ xMax

double XCharts.Serie.xMax

get

维度X对应数据中的最大值。

Definition at line 1274 of file Serie.cs.

         {
             get
             {
                 var max = double.MinValue;
                 foreach (var sdata in data)
                 {
                     if (sdata.show && !IsIgnoreValue(sdata.data[0]) && sdata.data[0] > max)
                     {
                         max = sdata.data[0];
                     }
                 }
                 return max;
             }
         }

◆ xMin

double XCharts.Serie.xMin

get

维度X对应数据的最小值。

Definition at line 1312 of file Serie.cs.

         {
             get
             {
                 var min = double.MaxValue;
                 foreach (var sdata in data)
                 {
                     if (sdata.show && !IsIgnoreValue(sdata.data[0]) && sdata.data[0] < min)
                     {
                         min = sdata.data[0];
                     }
                 }
                 return min;
             }
         }

◆ xTotal

double XCharts.Serie.xTotal

get

维度X数据的总和。

Definition at line 1348 of file Serie.cs.

         {
             get
             {
                 double total = 0;
                 foreach (var sdata in data)
                 {
                     if (sdata.show && !IsIgnoreValue(sdata.data[1]))
                         total += sdata.data[0];
                 }
                 return total;
             }
         }

◆ yAxisIndex

int XCharts.Serie.yAxisIndex

getset

the index of YAxis. 使用Y轴的index。

Definition at line 427 of file Serie.cs.

         {
             get { return m_YAxisIndex; }
             set { if (PropertyUtil.SetStruct(ref m_YAxisIndex, value)) SetVerticesDirty(); }
         }

◆ yMax

double XCharts.Serie.yMax

get

维度Y对应数据中最大值。

Definition at line 1255 of file Serie.cs.

         {
             get
             {
                 var max = double.MinValue;
                 foreach (var sdata in data)
                 {
                     if (sdata.show && !IsIgnoreValue(sdata.data[1]) && sdata.data[1] > max)
                     {
                         max = sdata.data[1];
                     }
                 }
                 return max;
             }
         }

◆ yMin

double XCharts.Serie.yMin

get

维度Y对应数据的最小值。

Definition at line 1293 of file Serie.cs.

         {
             get
             {
                 var min = double.MaxValue;
                 foreach (var sdata in data)
                 {
                     if (sdata.show && !IsIgnoreValue(sdata.data[1]) && sdata.data[1] < min)
                     {
                         min = sdata.data[1];
                     }
                 }
                 return min;
             }
         }

◆ yTotal

double XCharts.Serie.yTotal

get

维度Y数据的总和。

Definition at line 1331 of file Serie.cs.

         {
             get
             {
                 double total = 0;
                 foreach (var sdata in data)
                 {
                     if (sdata.show && !IsIgnoreValue(sdata.data[1]))
                         total += sdata.GetCurrData(1, animation.GetUpdateAnimationDuration());
                 }
                 return total;
             }
         }

The documentation for this class was generated from the following file:

Serie.cs

Public Member Functions

Protected Attributes

Properties

Detailed Description

Member Function Documentation

◆ AddData() [1/2]

◆ AddData() [2/2]

◆ AddXYData()

◆ AddYData()

◆ AnimationEnable()

◆ AnimationFadeIn()

◆ AnimationFadeOut()

◆ AnimationPause()

◆ AnimationReset()

◆ AnimationRestart()

◆ AnimationResume()

◆ ClearData()

◆ ClearHighlight()

◆ GetData()

◆ GetDataList()

◆ GetSerieData()

◆ GetXYData()

◆ GetYData() [1/2]

◆ GetYData() [2/2]

◆ IsPerformanceMode()

◆ ParseJsonData()

◆ RemoveData()

◆ SetDataIconColor()

◆ SetDataIconSize()

◆ SetHighlight()

◆ UpdateData() [1/2]

◆ UpdateData() [2/2]

◆ UpdateXYData()

◆ UpdateYData()

Property Documentation

◆ align

◆ animation

◆ areaStyle

◆ avoidLabelOverlap

◆ barCategoryGap

◆ barGap

◆ barPercentStack

◆ barType

◆ barWidth

◆ barZebraGap

◆ barZebraWidth

◆ bottom

◆ center

◆ clip

◆ clockwise

◆ data

◆ dataCount

◆ dataPoints

◆ dataSortType

◆ emphasis

◆ endAngle

◆ gaugeAxis

◆ gaugePointer

◆ gaugeType

◆ highlighted

◆ iconStyle

◆ ignore

◆ ignoreLineBreak

◆ ignoreValue

◆ index

◆ insertDataToHead

◆ itemStyle

◆ label

◆ large

◆ largeThreshold

◆ left

◆ legendName

◆ lineArrow

◆ lineStyle

◆ lineType

◆ markLine

◆ max

◆ maxCache

◆ maxShow

◆ maxSize
