Vessel component for liquid chart. There can be multiple vessels in a Chart, which can be matched by vesselIndex in Serie. More...

Inheritance diagram for XCharts.Vessel:

[legend]

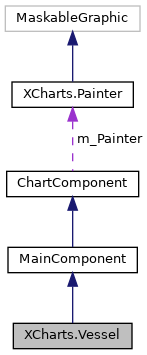

Collaboration diagram for XCharts.Vessel:

[legend]

Public Types
enum	Shape { Shape.Circle, Shape.Rect, Shape.Triangle, Shape.Diamond, Shape.None }

Properties
bool	show `[get, set]`
	Whether to show the vessel. 是否显示容器组件。 [defaut: true] More...

Shape	shape `[get, set]`
	The shape of vessel. 容器形状。 [default: Shape.Circle] More...

float	shapeWidth `[get, set]`
	Thickness of vessel. 容器厚度。 [defaut: 5f] More...

float	gap `[get, set]`
	The gap between the vessel and the liquid. 间隙。容器和液体的间隙。 [defaut: 10f] More...

float[]	center `[get, set]`
	The center of vesselß. The center[0] is the x-coordinate, and the center[1] is the y-coordinate. When value between 0 and 1 represents a percentage relative to the chart. 中心点。数组的第一项是横坐标，第二项是纵坐标。当值为0-1之间时表示百分比，设置成百分比时表示图表宽高最小值的百分比。 [default:[0.5f,0.45f]] More...

float	radius `[get, set]`
	The radius of vessel. When value between 0 and 1 represents a percentage relative to the chart. 半径。 [default: 0.35f] More...

float	width `[get, set]`
	The width of vessel. When value between 0 and 1 represents a percentage relative to the chart. 容器的宽。shape为Rect时有效。 [default: 0.35f] More...

float	height `[get, set]`
	The height of vessel. When value between 0 and 1 represents a percentage relative to the chart. 容器的高。shape为Rect时有效。 [default: 0.35f] More...

float	smoothness `[get, set]`
	The smoothness of wave. 水波平滑度。 [default: 1f] More...

Color32	backgroundColor `[get, set]`
	Background color of polar, which is transparent by default. 背景色，默认透明。 [default: `Color.clear`] More...

Color32	color `[get, set]`
	Vessel color. The default is consistent with Serie. 容器颜色。默认和serie一致。 More...

bool	autoColor `[get, set]`
	Whether automatic color. If true, the color matches serie. 是否自动颜色。为true时颜色会和serie一致。 [default: true] More...

float[]	cornerRadius `[get, set]`
	The radius of rounded corner. Its unit is px. Use array to respectively specify the 4 corner radiuses((clockwise upper left, upper right, bottom right and bottom left)). 容器的圆角半径。用数组分别指定4个圆角半径（顺时针左上，右上，右下，左下）。shape为Rect时有效。 More...

int	index `[get, set]`

Vector3	runtimeCenterPos `[get, set]`
	the runtime center position of vessel. 运行时中心点。 More...

float	runtimeRadius `[get, set]`
	the runtime radius of vessel. 运行时半径。 More...

float	runtimeInnerRadius `[get, set]`
	The actual radius after deducting shapeWidth and gap. 运行时内半径。扣除厚度和间隙后的实际半径。 More...

float	runtimeWidth `[get, set]`

float	runtimeHeight `[get, set]`

static Vessel	defaultVessel `[get]`

Properties inherited from XCharts.ChartComponent
virtual bool	vertsDirty `[get]`
	图表重绘标记。 More...

virtual bool	componentDirty `[get]`
	组件重新初始化标记。 More...

bool	anyDirty `[get]`
	需要重绘图表或重新初始化组件。 More...

Painter	painter `[get, set]`

Action	refreshComponent `[get, set]`

GameObject	gameObject `[get, set]`

Additional Inherited Members
Public Member Functions inherited from XCharts.ChartComponent
virtual void	SetVerticesDirty ()

virtual void	ClearVerticesDirty ()

virtual void	SetComponentDirty ()

virtual void	ClearComponentDirty ()

virtual void	ClearDirty ()

virtual void	SetAllDirty ()

Protected Attributes inherited from XCharts.ChartComponent
bool	m_VertsDirty

bool	m_ComponentDirty

Painter	m_Painter

Detailed Description

Vessel component for liquid chart. There can be multiple vessels in a Chart, which can be matched by vesselIndex in Serie.

容器组件。一般用于LiquidChart。一个Chart中可以有多个Vessel，Serie中用vesselIndex来对应。

Definition at line 21 of file Vessel.cs.

Member Enumeration Documentation

◆ Shape

enum XCharts.Vessel.Shape

strong

Enumerator
Circle	圆形
Rect	正方形。
Triangle	三角形。
Diamond	菱形。
None	不显示标记。

Definition at line 23 of file Vessel.cs.

         {
             Circle,
             Rect,
             Triangle,
             Diamond,
             None,
         }

Property Documentation

◆ autoColor

bool XCharts.Vessel.autoColor

getset

Whether automatic color. If true, the color matches serie. 是否自动颜色。为true时颜色会和serie一致。 [default: true]

Definition at line 180 of file Vessel.cs.

         {
             get { return m_AutoColor; }
             set { if (PropertyUtil.SetStruct(ref m_AutoColor, value)) SetVerticesDirty(); }
         }

◆ backgroundColor

Color32 XCharts.Vessel.backgroundColor

getset

Background color of polar, which is transparent by default. 背景色，默认透明。 [default: Color.clear]

Definition at line 161 of file Vessel.cs.

         {
             get { return m_BackgroundColor; }
             set { if (PropertyUtil.SetColor(ref m_BackgroundColor, value)) SetVerticesDirty(); }
         }

◆ center

float [] XCharts.Vessel.center

getset

The center of vesselß. The center[0] is the x-coordinate, and the center[1] is the y-coordinate. When value between 0 and 1 represents a percentage relative to the chart. 中心点。数组的第一项是横坐标，第二项是纵坐标。当值为0-1之间时表示百分比，设置成百分比时表示图表宽高最小值的百分比。 [default:[0.5f,0.45f]]

Definition at line 108 of file Vessel.cs.

         {
             get { return m_Center; }
             set { if (value != null) { m_Center = value; SetAllDirty(); } }
         }

◆ color

Color32 XCharts.Vessel.color

getset

Vessel color. The default is consistent with Serie. 容器颜色。默认和serie一致。

Definition at line 170 of file Vessel.cs.

         {
             get { return m_Color; }
             set { if (PropertyUtil.SetColor(ref m_Color, value)) SetVerticesDirty(); }
         }

◆ cornerRadius

float [] XCharts.Vessel.cornerRadius

getset

The radius of rounded corner. Its unit is px. Use array to respectively specify the 4 corner radiuses((clockwise upper left, upper right, bottom right and bottom left)). 容器的圆角半径。用数组分别指定4个圆角半径（顺时针左上，右上，右下，左下）。shape为Rect时有效。

Definition at line 189 of file Vessel.cs.

         {
             get { return m_CornerRadius; }
             set { if (PropertyUtil.SetClass(ref m_CornerRadius, value, true)) SetVerticesDirty(); }
         }

◆ gap

float XCharts.Vessel.gap

getset

The gap between the vessel and the liquid. 间隙。容器和液体的间隙。 [defaut: 10f]

Definition at line 96 of file Vessel.cs.

         {
             get { return m_Gap; }
             set { if (PropertyUtil.SetStruct(ref m_Gap, value)) SetVerticesDirty(); }
         }

◆ height

float XCharts.Vessel.height

getset

The height of vessel. When value between 0 and 1 represents a percentage relative to the chart. 容器的高。shape为Rect时有效。 [default: 0.35f]

Definition at line 141 of file Vessel.cs.

         {
             get { return m_Height; }
             set { if (PropertyUtil.SetStruct(ref m_Height, value)) SetAllDirty(); }
         }

◆ radius

float XCharts.Vessel.radius

getset

The radius of vessel. When value between 0 and 1 represents a percentage relative to the chart. 半径。 [default: 0.35f]

Definition at line 119 of file Vessel.cs.

         {
             get { return m_Radius; }
             set { if (PropertyUtil.SetStruct(ref m_Radius, value)) SetAllDirty(); }
         }

◆ runtimeCenterPos

Vector3 XCharts.Vessel.runtimeCenterPos

getset

the runtime center position of vessel. 运行时中心点。

Definition at line 198 of file Vessel.cs.

198 { get; internal set; }

◆ runtimeInnerRadius

float XCharts.Vessel.runtimeInnerRadius

getset

The actual radius after deducting shapeWidth and gap. 运行时内半径。扣除厚度和间隙后的实际半径。

Definition at line 208 of file Vessel.cs.

208 { get; internal set; }

◆ runtimeRadius

float XCharts.Vessel.runtimeRadius

getset

the runtime radius of vessel. 运行时半径。

Definition at line 203 of file Vessel.cs.

203 { get; internal set; }

◆ shape

Shape XCharts.Vessel.shape

getset

The shape of vessel. 容器形状。 [default: Shape.Circle]

Definition at line 76 of file Vessel.cs.

         {
             get { return m_Shape; }
             set { if (PropertyUtil.SetStruct(ref m_Shape, value)) SetVerticesDirty(); }
         }

◆ shapeWidth

float XCharts.Vessel.shapeWidth

getset

Thickness of vessel. 容器厚度。 [defaut: 5f]

Definition at line 86 of file Vessel.cs.

         {
             get { return m_ShapeWidth; }
             set { if (PropertyUtil.SetStruct(ref m_ShapeWidth, value)) SetVerticesDirty(); }
         }

◆ show

bool XCharts.Vessel.show

getset

Whether to show the vessel. 是否显示容器组件。 [defaut: true]

Definition at line 66 of file Vessel.cs.

         {
             get { return m_Show; }
             set { if (PropertyUtil.SetStruct(ref m_Show, value)) SetVerticesDirty(); }
         }

◆ smoothness

float XCharts.Vessel.smoothness

getset

The smoothness of wave. 水波平滑度。 [default: 1f]

Definition at line 151 of file Vessel.cs.

         {
             get { return m_Smoothness; }
             set { if (PropertyUtil.SetStruct(ref m_Smoothness, value)) SetAllDirty(); }
         }

◆ width

float XCharts.Vessel.width

getset

The width of vessel. When value between 0 and 1 represents a percentage relative to the chart. 容器的宽。shape为Rect时有效。 [default: 0.35f]

Definition at line 130 of file Vessel.cs.

         {
             get { return m_Width; }
             set { if (PropertyUtil.SetStruct(ref m_Width, value)) SetAllDirty(); }
         }

The documentation for this class was generated from the following file:

Vessel.cs
