XCharts.Grid Class Reference

Grid component. Drawing grid in rectangular coordinate. In a single grid, at most two X and Y axes each is allowed. Line chart, bar chart, and scatter chart can be drawn in grid. There is only one single grid component at most in a single echarts instance. More...

Inheritance diagram for XCharts.Grid:

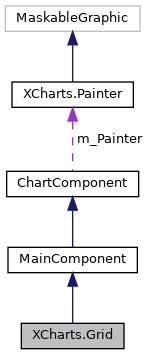

Collaboration diagram for XCharts.Grid:

Properties
bool	show [get, set]
	Whether to show the grid in rectangular coordinate. 是否显示直角坐标系网格。 More...
float	left [get, set]
	Distance between grid component and the left side of the container. grid 组件离容器左侧的距离。 More...
float	right [get, set]
	Distance between grid component and the right side of the container. grid 组件离容器右侧的距离。 More...
float	top [get, set]
	Distance between grid component and the top side of the container. grid 组件离容器上侧的距离。 More...
float	bottom [get, set]
	Distance between grid component and the bottom side of the container. grid 组件离容器下侧的距离。 More...
Color	backgroundColor [get, set]
	Background color of grid, which is transparent by default. 网格背景色，默认透明。 More...
int	index [get, set]
float	runtimeX [get]
float	runtimeY [get]
float	runtimeWidth [get]
float	runtimeHeight [get]
Vector3	runtimePosition [get]
static Grid	defaultGrid [get]
Properties inherited from XCharts.ChartComponent
virtual bool	vertsDirty [get]
	图表重绘标记。 More...
virtual bool	componentDirty [get]
	组件重新初始化标记。 More...
bool	anyDirty [get]
	需要重绘图表或重新初始化组件。 More...
Painter	painter [get, set]
Action	refreshComponent [get, set]
GameObject	gameObject [get, set]

Additional Inherited Members
Public Member Functions inherited from XCharts.ChartComponent
virtual void	SetVerticesDirty ()
virtual void	ClearVerticesDirty ()
virtual void	SetComponentDirty ()
virtual void	ClearComponentDirty ()
virtual void	ClearDirty ()
virtual void	SetAllDirty ()
Protected Attributes inherited from XCharts.ChartComponent
bool	m_VertsDirty
bool	m_ComponentDirty
Painter	m_Painter

Detailed Description

Grid component. Drawing grid in rectangular coordinate. In a single grid, at most two X and Y axes each is allowed. Line chart, bar chart, and scatter chart can be drawn in grid. There is only one single grid component at most in a single echarts instance.

网格组件。 直角坐标系内绘图网格，单个 grid 内最多可以放置上下两个 X 轴，左右两个 Y 轴。可以在网格上绘制折线图，柱状图，散点图。 单个xcharts实例中只能存在一个grid组件。

Definition at line 25 of file XGrid.cs.

Property Documentation

backgroundColor

Color XCharts.Grid.backgroundColor

getset

Background color of grid, which is transparent by default. 网格背景色，默认透明。

Definition at line 84 of file XGrid.cs.

        {
            get { return m_BackgroundColor; }
            set { if (PropertyUtil.SetColor(ref m_BackgroundColor, value)) SetVerticesDirty(); }
        }

bottom

float XCharts.Grid.bottom

getset

Distance between grid component and the bottom side of the container. grid 组件离容器下侧的距离。

Definition at line 75 of file XGrid.cs.

        {
            get { return m_Bottom; }
            set { if (PropertyUtil.SetStruct(ref m_Bottom, value)) SetAllDirty(); }
        }

left

float XCharts.Grid.left

getset

Distance between grid component and the left side of the container. grid 组件离容器左侧的距离。

Definition at line 48 of file XGrid.cs.

        {
            get { return m_Left; }
            set { if (PropertyUtil.SetStruct(ref m_Left, value)) SetAllDirty(); }
        }

right

float XCharts.Grid.right

getset

Distance between grid component and the right side of the container. grid 组件离容器右侧的距离。

Definition at line 57 of file XGrid.cs.

        {
            get { return m_Right; }
            set { if (PropertyUtil.SetStruct(ref m_Right, value)) SetAllDirty(); }
        }

show

bool XCharts.Grid.show

getset

Whether to show the grid in rectangular coordinate. 是否显示直角坐标系网格。

Definition at line 39 of file XGrid.cs.

        {
            get { return m_Show; }
            set { if (PropertyUtil.SetStruct(ref m_Show, value)) SetVerticesDirty(); }
        }

top

float XCharts.Grid.top

getset

Distance between grid component and the top side of the container. grid 组件离容器上侧的距离。

Definition at line 66 of file XGrid.cs.

        {
            get { return m_Top; }
            set { if (PropertyUtil.SetStruct(ref m_Top, value)) SetAllDirty(); }
        }

---

The documentation for this class was generated from the following file:

• XGrid.cs
