Radar coordinate conponnet for radar charts. 雷达图坐标系组件，只适用于雷达图。 More...

Inheritance diagram for XCharts.Radar:

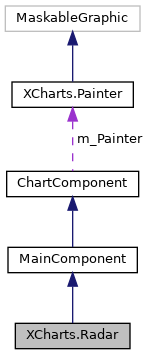

Collaboration diagram for XCharts.Radar:

[legend]

Classes
class	Indicator
	Indicator of radar chart, which is used to assign multiple variables(dimensions) in radar chart. 雷达图的指示器，用来指定雷达图中的多个变量（维度）。 More...

Public Types
enum	Shape { Polygon, Circle }
	Radar render type, in which 'Polygon' and 'Circle' are supported. 雷达图绘制类型，支持 'Polygon' 和 'Circle'。 More...

enum	PositionType { PositionType.Vertice, PositionType.Between }
	The position type of radar. 显示位置。 More...

Public Member Functions
bool	IsInIndicatorRange (int index, double value)

double	GetIndicatorMin (int index)

double	GetIndicatorMax (int index)

Vector3	GetIndicatorPosition (int index)

void	AddIndicator (Radar.Indicator indicator)

Radar.Indicator	AddIndicator (string name, float min, float max)

bool	UpdateIndicator (int indicatorIndex, string name, float min, float max)

Radar.Indicator	GetIndicator (int indicatorIndex)

Public Member Functions inherited from XCharts.ChartComponent
virtual void	SetVerticesDirty ()

virtual void	ClearVerticesDirty ()

virtual void	SetComponentDirty ()

virtual void	ClearComponentDirty ()

virtual void	ClearDirty ()

virtual void	SetAllDirty ()

Public Attributes
Dictionary< int, List< Vector3 > >	runtimeDataPosList = new Dictionary<int, List<Vector3>>()
	the data position list of radar. 雷达图的所有数据坐标点列表。 More...

Properties
bool	show `[get, set]`
	[default:true] Set this to false to prevent the radar from showing. 是否显示雷达坐标系组件。 More...

Shape	shape `[get, set]`
	Radar render type, in which 'Polygon' and 'Circle' are supported. 雷达图绘制类型，支持 'Polygon' 和 'Circle'。 More...

float	radius `[get, set]`
	the radius of radar. 雷达图的半径。 More...

int	splitNumber `[get, set]`
	Segments of indicator axis. 指示器轴的分割段数。 More...

float[]	center `[get, set]`
	the center of radar chart. 雷达图的中心点。数组的第一项是横坐标，第二项是纵坐标。当值为0-1之间时表示百分比，设置成百分比时第一项是相对于容器宽度，第二项是相对于容器高度。 More...

AxisLine	axisLine `[get, set]`
	axis line. 轴线。 More...

AxisSplitLine	splitLine `[get, set]`
	split line. 分割线。 More...

AxisSplitArea	splitArea `[get, set]`
	Split area of axis in grid area. 分割区域。 More...

bool	indicator `[get, set]`
	Whether to show indicator. 是否显示指示器。 More...

float	indicatorGap `[get, set]`
	The gap of indicator and radar. 指示器和雷达的间距。 More...

int?	ceilRate `[get, set]`
	The ratio of maximum and minimum values rounded upward. The default is 0, which is automatically calculated. 最大最小值向上取整的倍率。默认为0时自动计算。 More...

bool	isAxisTooltip `[get, set]`
	是否Tooltip显示轴线上的所有数据。 More...

PositionType	positionType `[get, set]`
	The position type of indicator. 显示位置类型。 More...

Color32	outRangeColor `[get, set]`
	The color displayed when data out of range. 数值超出范围时显示的颜色。 More...

bool	connectCenter `[get, set]`
	Whether serie data connect to radar center with line. 数值是否连线到中心点。 More...

bool	lineGradient `[get, set]`
	Whether need gradient for data line. 数值线段是否需要渐变。 More...

List< Indicator >	indicatorList `[get]`
	the indicator list. 指示器列表。 More...

int	index `[get, set]`

Vector3	runtimeCenterPos `[get, set]`
	the center position of radar in container. 雷达图在容器中的具体中心点。 More...

float	runtimeRadius `[get, set]`
	the true radius of radar. 雷达图的运行时实际半径。 More...

float	runtimeDataRadius `[get, set]`

static Radar	defaultRadar `[get]`

Properties inherited from XCharts.ChartComponent
virtual bool	vertsDirty `[get]`
	图表重绘标记。 More...

virtual bool	componentDirty `[get]`
	组件重新初始化标记。 More...

bool	anyDirty `[get]`
	需要重绘图表或重新初始化组件。 More...

Painter	painter `[get, set]`

Action	refreshComponent `[get, set]`

GameObject	gameObject `[get, set]`

Additional Inherited Members
Protected Attributes inherited from XCharts.ChartComponent
bool	m_VertsDirty

bool	m_ComponentDirty

Painter	m_Painter

Detailed Description

Radar coordinate conponnet for radar charts. 雷达图坐标系组件，只适用于雷达图。

Definition at line 21 of file Radar.cs.

Member Enumeration Documentation

◆ PositionType

enum XCharts.Radar.PositionType

strong

The position type of radar. 显示位置。

Enumerator
Vertice	Display at the vertex. 显示在顶点处。
Between	Display at the middle of line. 显示在两者之间。

Definition at line 36 of file Radar.cs.

         {
             Vertice,
             Between,
         }

◆ Shape

enum XCharts.Radar.Shape

strong

Radar render type, in which 'Polygon' and 'Circle' are supported. 雷达图绘制类型，支持 'Polygon' 和 'Circle'。

Definition at line 27 of file Radar.cs.

         {
             Polygon,
             Circle
         }

Member Data Documentation

◆ runtimeDataPosList

Dictionary<int, List<Vector3> > XCharts.Radar.runtimeDataPosList = new Dictionary<int, List<Vector3>>()

the data position list of radar. 雷达图的所有数据坐标点列表。

Definition at line 287 of file Radar.cs.

Property Documentation

◆ axisLine

AxisLine XCharts.Radar.axisLine

getset

axis line. 轴线。

Definition at line 172 of file Radar.cs.

         {
             get { return m_AxisLine; }
             set { if (PropertyUtil.SetClass(ref m_AxisLine, value, true)) SetAllDirty(); }
         }

◆ ceilRate

int? XCharts.Radar.ceilRate

getset

The ratio of maximum and minimum values rounded upward. The default is 0, which is automatically calculated. 最大最小值向上取整的倍率。默认为0时自动计算。

Definition at line 217 of file Radar.cs.

         {
             get { return m_CeilRate; }
             set { if (PropertyUtil.SetStruct(ref m_CeilRate, value < 0 ? 0 : value)) SetAllDirty(); }
         }

◆ center

float [] XCharts.Radar.center

getset

the center of radar chart. 雷达图的中心点。数组的第一项是横坐标，第二项是纵坐标。当值为0-1之间时表示百分比，设置成百分比时第一项是相对于容器宽度，第二项是相对于容器高度。

Definition at line 163 of file Radar.cs.

         {
             get { return m_Center; }
             set { if (value != null) { m_Center = value; SetAllDirty(); } }
         }

◆ connectCenter

bool XCharts.Radar.connectCenter

getset

Whether serie data connect to radar center with line. 数值是否连线到中心点。

Definition at line 252 of file Radar.cs.

         {
             get { return m_ConnectCenter; }
             set { if (PropertyUtil.SetStruct(ref m_ConnectCenter, value)) SetAllDirty(); }
         }

◆ indicator

bool XCharts.Radar.indicator

getset

Whether to show indicator. 是否显示指示器。

Definition at line 199 of file Radar.cs.

         {
             get { return m_Indicator; }
             set { if (PropertyUtil.SetStruct(ref m_Indicator, value)) SetComponentDirty(); }
         }

◆ indicatorGap

float XCharts.Radar.indicatorGap

getset

The gap of indicator and radar. 指示器和雷达的间距。

Definition at line 208 of file Radar.cs.

         {
             get { return m_IndicatorGap; }
             set { if (PropertyUtil.SetStruct(ref m_IndicatorGap, value)) SetComponentDirty(); }
         }

◆ indicatorList

List<Indicator> XCharts.Radar.indicatorList

get

the indicator list. 指示器列表。

Definition at line 269 of file Radar.cs.

269 { get { return m_IndicatorList; } }

◆ isAxisTooltip

bool XCharts.Radar.isAxisTooltip

getset

是否Tooltip显示轴线上的所有数据。

Definition at line 225 of file Radar.cs.

         {
             get { return m_IsAxisTooltip; }
             set { if (PropertyUtil.SetStruct(ref m_IsAxisTooltip, value)) SetAllDirty(); }
         }

◆ lineGradient

bool XCharts.Radar.lineGradient

getset

Whether need gradient for data line. 数值线段是否需要渐变。

Definition at line 261 of file Radar.cs.

         {
             get { return m_LineGradient; }
             set { if (PropertyUtil.SetStruct(ref m_LineGradient, value)) SetAllDirty(); }
         }

◆ outRangeColor

Color32 XCharts.Radar.outRangeColor

getset

The color displayed when data out of range. 数值超出范围时显示的颜色。

Definition at line 243 of file Radar.cs.

         {
             get { return m_OutRangeColor; }
             set { if (PropertyUtil.SetStruct(ref m_OutRangeColor, value)) SetAllDirty(); }
         }

◆ positionType

PositionType XCharts.Radar.positionType

getset

The position type of indicator. 显示位置类型。

Definition at line 234 of file Radar.cs.

         {
             get { return m_PositionType; }
             set { if (PropertyUtil.SetStruct(ref m_PositionType, value)) SetAllDirty(); }
         }

◆ radius

float XCharts.Radar.radius

getset

the radius of radar. 雷达图的半径。

Definition at line 144 of file Radar.cs.

         {
             get { return m_Radius; }
             set { if (PropertyUtil.SetStruct(ref m_Radius, value)) SetAllDirty(); }
         }

◆ runtimeCenterPos

Vector3 XCharts.Radar.runtimeCenterPos

getset

the center position of radar in container. 雷达图在容器中的具体中心点。

Definition at line 276 of file Radar.cs.

276 { get; internal set; }

◆ runtimeRadius

float XCharts.Radar.runtimeRadius

getset

the true radius of radar. 雷达图的运行时实际半径。

Definition at line 281 of file Radar.cs.

281 { get; internal set; }

◆ shape

Shape XCharts.Radar.shape

getset

Radar render type, in which 'Polygon' and 'Circle' are supported. 雷达图绘制类型，支持 'Polygon' 和 'Circle'。

Definition at line 135 of file Radar.cs.

         {
             get { return m_Shape; }
             set { if (PropertyUtil.SetStruct(ref m_Shape, value)) SetAllDirty(); }
         }

◆ show

bool XCharts.Radar.show

getset

[default:true] Set this to false to prevent the radar from showing. 是否显示雷达坐标系组件。

Definition at line 128 of file Radar.cs.

128 { get { return m_Show; } set { if (PropertyUtil.SetStruct(ref m_Show, value)) SetComponentDirty(); } }

◆ splitArea

AxisSplitArea XCharts.Radar.splitArea

getset

Split area of axis in grid area. 分割区域。

Definition at line 190 of file Radar.cs.

         {
             get { return m_SplitArea; }
             set { if (PropertyUtil.SetClass(ref m_SplitArea, value, true)) SetAllDirty(); }
         }

◆ splitLine

AxisSplitLine XCharts.Radar.splitLine

getset

split line. 分割线。

Definition at line 181 of file Radar.cs.

         {
             get { return m_SplitLine; }
             set { if (PropertyUtil.SetClass(ref m_SplitLine, value, true)) SetAllDirty(); }
         }

◆ splitNumber

int XCharts.Radar.splitNumber

getset

Segments of indicator axis. 指示器轴的分割段数。

Definition at line 153 of file Radar.cs.

         {
             get { return m_SplitNumber; }
             set { if (PropertyUtil.SetStruct(ref m_SplitNumber, value)) SetAllDirty(); }
         }

The documentation for this class was generated from the following file:

Radar.cs
