XCharts.Title Class Reference

Title component, including main title and subtitle. 标题组件，包含主标题和副标题。 More...

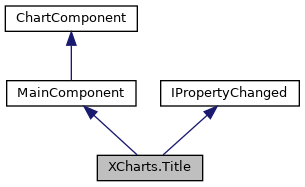

Inheritance diagram for XCharts.Title:

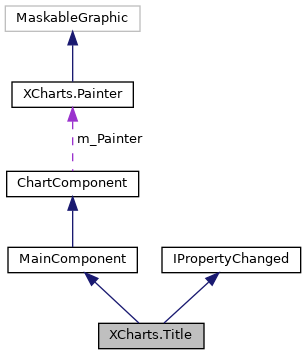

Collaboration diagram for XCharts.Title:

Public Member Functions
override void	ClearComponentDirty ()
void	OnChanged ()
Public Member Functions inherited from XCharts.ChartComponent
virtual void	SetVerticesDirty ()
virtual void	ClearVerticesDirty ()
virtual void	SetComponentDirty ()
virtual void	ClearDirty ()
virtual void	SetAllDirty ()

Properties
bool	show [get, set]
	[default:true] Set this to false to prevent the title from showing. 是否显示标题组件。 More...
string	text [get, set]
	The main title text, supporting for newlines. 主标题文本，支持使用 换行。 More...
TextStyle	textStyle [get, set]
	The text style of main title. 主标题文本样式。 More...
string	subText [get, set]
	Subtitle text, supporting for for newlines. 副标题文本，支持使用 换行。 More...
TextStyle	subTextStyle [get, set]
	The text style of sub title. 副标题文本样式。 More...
float	itemGap [get, set]
	[default:8] The gap between the main title and subtitle. 主副标题之间的间距。 More...
Location	location [get, set]
	The location of title component. 标题显示位置。 More...
int	index [get, set]
override bool	vertsDirty [get]
override bool	componentDirty [get]
static Title	defaultTitle [get]
Properties inherited from XCharts.ChartComponent
virtual bool	vertsDirty [get]
	图表重绘标记。 More...
virtual bool	componentDirty [get]
	组件重新初始化标记。 More...
bool	anyDirty [get]
	需要重绘图表或重新初始化组件。 More...
Painter	painter [get, set]
Action	refreshComponent [get, set]
GameObject	gameObject [get, set]

Additional Inherited Members
Protected Attributes inherited from XCharts.ChartComponent
bool	m_VertsDirty
bool	m_ComponentDirty
Painter	m_Painter

Detailed Description

Title component, including main title and subtitle. 标题组件，包含主标题和副标题。

Definition at line 18 of file Title.cs.

Property Documentation

itemGap

float XCharts.Title.itemGap

getset

[default:8] The gap between the main title and subtitle. 主副标题之间的间距。

Definition at line 72 of file Title.cs.

        {
            get { return m_ItemGap; }
            set { if (PropertyUtil.SetStruct(ref m_ItemGap, value)) SetComponentDirty(); }
        }

location

Location XCharts.Title.location

getset

The location of title component. 标题显示位置。

Definition at line 81 of file Title.cs.

        {
            get { return m_Location; }
            set { if (PropertyUtil.SetClass(ref m_Location, value)) SetComponentDirty(); }
        }

show

bool XCharts.Title.show

getset

[default:true] Set this to false to prevent the title from showing. 是否显示标题组件。

Definition at line 33 of file Title.cs.

{ get { return m_Show; } set { if (PropertyUtil.SetStruct(ref m_Show, value)) SetComponentDirty(); } }

subText

string XCharts.Title.subText

getset

Subtitle text, supporting for
for newlines. 副标题文本，支持使用
换行。

Definition at line 53 of file Title.cs.

        {
            get { return m_SubText; }
            set { if (PropertyUtil.SetClass(ref m_SubText, value)) SetComponentDirty(); }
        }

subTextStyle

TextStyle XCharts.Title.subTextStyle

getset

The text style of sub title. 副标题文本样式。

Definition at line 62 of file Title.cs.

        {
            get { return m_SubTextStyle; }
            set { if (PropertyUtil.SetClass(ref m_SubTextStyle, value)) SetComponentDirty(); }
        }

text

string XCharts.Title.text

getset

The main title text, supporting
for newlines. 主标题文本，支持使用
换行。

Definition at line 38 of file Title.cs.

{ get { return m_Text; } set { if (PropertyUtil.SetClass(ref m_Text, value)) SetComponentDirty(); } }

textStyle

TextStyle XCharts.Title.textStyle

getset

The text style of main title. 主标题文本样式。

Definition at line 44 of file Title.cs.

        {
            get { return m_TextStyle; }
            set { if (PropertyUtil.SetClass(ref m_TextStyle, value)) SetComponentDirty(); }
        }

---

The documentation for this class was generated from the following file:

• Title.cs
