XCharts.RadarChart Class Reference

Inheritance diagram for XCharts.RadarChart:

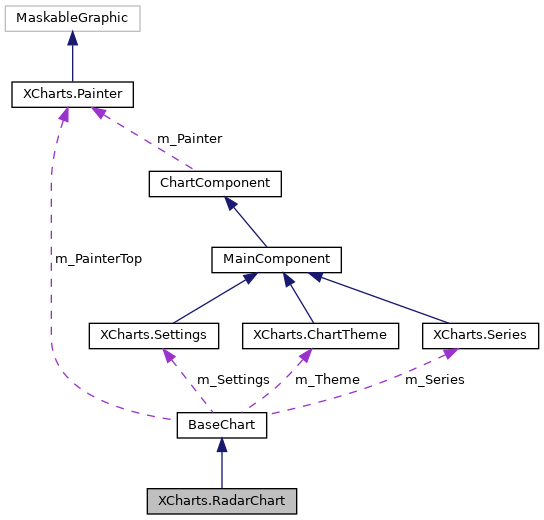

Collaboration diagram for XCharts.RadarChart:

Protected Member Functions
override void	InitComponent ()
Protected Member Functions inherited from XCharts.BaseChart
override void	InitComponent ()
override void	Awake ()
override void	Start ()
override void	Update ()
virtual void	CheckTheme ()
override void	CheckComponent ()
override void	SetAllComponentDirty ()
override void	OnDestroy ()
virtual void	CheckPainter ()
override void	InitPainter ()
void	AddSerieLabel (Serie serie, SerieData serieData, ref int count)
override bool	IsNeedCheckPointerPos ()
virtual void	CheckTootipArea (Vector2 localPostion, bool isActivedOther)
override void	CheckRefreshChart ()
override void	CheckRefreshPainter ()
void	CheckRefreshLabel ()
virtual void	OnRefreshLabel ()
override void	OnSizeChanged ()
override void	OnLocalPositionChanged ()
virtual void	OnThemeChanged ()
virtual void	OnYMaxValueChanged ()
virtual void	OnLegendButtonClick (int index, string legendName, bool show)
virtual void	OnLegendButtonEnter (int index, string legendName)
virtual void	OnLegendButtonExit (int index, string legendName)
virtual void	UpdateTooltip ()
override void	OnDrawPainterBase (VertexHelper vh, Painter painter)
virtual void	OnDrawPainterSerie (VertexHelper vh, Painter painter)
virtual void	OnDrawPainterTop (VertexHelper vh, Painter painter)
virtual void	DrawPainterSerie (VertexHelper vh, Serie serie)
virtual void	DrawPainterTop (VertexHelper vh)
virtual void	DrawTooltip (VertexHelper vh)
override void	DrawBackground (VertexHelper vh)
virtual void	DrawLegend (VertexHelper vh)
int	GetPainterIndexBySerie (Serie serie)

Additional Inherited Members
Public Member Functions inherited from XCharts.BaseChart
void	RefreshChart ()
	Redraw chart in next frame. 在下一帧刷新图表。 More...
virtual void	ClearData ()
	Remove all series and legend data. It just emptying all of serie's data without emptying the list of series. 清除所有数据，系列中只是移除数据，列表会保留。 More...
virtual void	RemoveData ()
	Remove all data from series and legend. The series list is also cleared. 清除所有系列和图例数据，系列的列表也会被清除。 More...
virtual void	RemoveData (string serieName)
	Remove legend and serie by name. 清除指定系列名称的数据。 More...
virtual Serie	AddSerie (SerieType type, string serieName=null, bool show=true, bool addToHead=false)
	Add a serie to serie list. 添加一个系列到系列列表中。 More...
virtual Serie	AddSerie (string serieType, string serieName=null, bool show=true, bool addToHead=false)
	Add a serie to serie list. 通过字符串类型的serieType添加一个系列到系列列表中。如果serieType不是已定义的SerieType类型，则设置为Custom类型。 More...
virtual Serie	InsertSerie (int index, SerieType serieType, string serieName=null, bool show=true)
virtual SerieData	AddData (string serieName, double data, string dataName=null)
	Add a data to serie. If serieName doesn't exist in legend,will be add to legend. 添加一个数据到指定的系列中。 More...
virtual SerieData	AddData (int serieIndex, double data, string dataName=null)
	Add a data to serie. 添加一个数据到指定的系列中。 More...
virtual SerieData	AddData (string serieName, List< double > multidimensionalData, string dataName=null)
	Add an arbitray dimension data to serie,such as (x,y,z,...). 添加多维数据（x,y,z...）到指定的系列中。 More...
virtual SerieData	AddData (int serieIndex, List< double > multidimensionalData, string dataName=null)
	Add an arbitray dimension data to serie,such as (x,y,z,...). 添加多维数据（x,y,z...）到指定的系列中。 More...
virtual SerieData	AddData (string serieName, double xValue, double yValue, string dataName=null)
	Add a (x,y) data to serie. 添加（x,y）数据到指定系列中。 More...
virtual SerieData	AddData (int serieIndex, double xValue, double yValue, string dataName=null)
	Add a (x,y) data to serie. 添加（x,y）数据到指定系列中。 More...
virtual SerieData	AddData (int serieIndex, double open, double close, double lowest, double heighest, string dataName=null)
virtual bool	UpdateData (string serieName, int dataIndex, double value)
	Update serie data by serie name. 更新指定系列中的指定索引数据。 More...
virtual bool	UpdateData (int serieIndex, int dataIndex, double value)
	Update serie data by serie index. 更新指定系列中的指定索引数据。 More...
virtual bool	UpdateData (string serieName, int dataIndex, List< double > multidimensionalData)
	更新指定系列指定索引的数据项的多维数据。 More...
virtual bool	UpdateData (int serieIndex, int dataIndex, List< double > multidimensionalData)
	更新指定系列指定索引的数据项的多维数据。 More...
virtual bool	UpdateData (string serieName, int dataIndex, int dimension, double value)
	更新指定系列指定索引指定维数的数据。维数从0开始。 More...
virtual bool	UpdateData (int serieIndex, int dataIndex, int dimension, double value)
	更新指定系列指定索引指定维数的数据。维数从0开始。 More...
virtual bool	UpdateDataName (string serieName, int dataIndex, string dataName)
	Update serie data name. 更新指定系列中的指定索引数据名称。 More...
virtual bool	UpdateDataName (int serieIndex, int dataIndex, string dataName)
	Update serie data name. 更新指定系列中的指定索引数据名称。 More...
virtual void	SetActive (string serieName, bool active)
	Whether to show serie. 设置指定系列是否显示。 More...
virtual void	SetActive (int serieIndex, bool active)
	Whether to show serie. 设置指定系列是否显示。 More...
virtual void	UpdateLegendColor (string legendName, bool active)
virtual bool	IsActive (string serieName)
	Whether serie is activated. 获取指定系列是否显示。 More...
virtual bool	IsActive (int serieIndex)
	Whether serie is activated. 获取指定系列是否显示。 More...
virtual bool	IsActiveByLegend (string legendName)
	Whether serie is activated. 获得指定图例名字的系列是否显示。 More...
void	RefreshLabel ()
	刷新文本标签Label，重新初始化，当有改动Label参数时手动调用改接口 More...
void	RefreshTooltip ()
	刷新Tooltip组件。 More...
bool	UpdateTheme (Theme theme)
	Update chart theme. 切换内置主题。 More...
void	UpdateTheme (ChartTheme theme)
	Update chart theme info. 切换图表主题。 More...
void	AnimationEnable (bool flag)
	Whether series animation enabel. 启用或关闭起始动画。 More...
void	AnimationFadeIn ()
	fadeIn animation. 开始渐入动画。 More...
void	AnimationFadeOut ()
	fadeIn animation. 开始渐出动画。 More...
void	AnimationPause ()
	Pause animation. 暂停动画。 More...
void	AnimationResume ()
	Stop play animation. 继续动画。 More...
void	AnimationReset ()
	Reset animation. 重置动画。 More...
void	ClickLegendButton (int legendIndex, string legendName, bool show)
	点击图例按钮 More...
bool	IsInChart (Vector2 local)
	坐标是否在图表范围内 More...
bool	IsInChart (float x, float y)
void	ClampInChart (ref Vector3 pos)
Vector3	GetTitlePosition (Title title)
bool	ContainsSerie (SerieType serieType)
virtual bool	AddDefaultCustomSerie (string serieName, int dataCount=5)
virtual string[]	GetCustomSerieInspectorShowFileds ()
virtual string[][]	GetCustomSerieInspectorCustomFileds ()
virtual string[]	GetCustomChartInspectorShowFileds ()
virtual string	GetCustomSerieTypeName ()
virtual bool	GetCustomSerieDataNameForColor ()
int	GetLegendRealShowNameIndex (string name)
virtual void	InitCustomSerieTooltip (ref StringBuilder stringBuilder, Serie serie, int index)
void	SetBasePainterMaterial (Material material)
	设置Base Painter的材质球 More...
void	SetSeriePainterMaterial (Material material)
	设置Serie Painter的材质球 More...
void	SetTopPainterMaterial (Material material)
	设置Top Painter的材质球 More...
void	RemoveVessel ()
	移除所有容器组件。 More...
void	AddVessel (Vessel vessel)
	添加容器组件。 More...
Vessel	AddVessel (Vessel.Shape shape, Vector2 center, float radius)
	添加容器组件。 More...
Vessel	GetVessel (int vesselIndex)
	获得指定索引的容器组件。 More...
void	RemoveRadar ()
	移除所有雷达坐标系组件。 More...
void	RemoveIndicator (int radarIndex)
	移除指定Radar的所有Indicator。 More...
void	AddRadar (Radar radar)
	添加雷达坐标系组件。 More...
Radar	AddRadar (Radar.Shape shape, Vector2 center, float radius, int splitNumber=5, float lineWidth=0f, bool showIndicator=true, bool showSplitArea=true)
	添加雷达坐标系组件。 More...
bool	AddIndicator (int radarIndex, Radar.Indicator indicator)
Radar.Indicator	AddIndicator (int radarIndex, string name, float min, float max)
	添加指示器。 More...
bool	UpdateIndicator (int radarIndex, int indicatorIndex, string name, float min, float max)
	更新指示器。 More...
Radar	GetRadar (int radarIndex)
	获得指定索引的雷达坐标系组件。 More...
Radar.Indicator	GetIndicator (int radarIndex, int indicatorIndex)
	获得指定雷达坐标系组件指定索引的指示器。 More...
Painter	GetPainter (int index)
void	RefreshBasePainter ()
void	RefreshTopPainter ()
void	RefreshPainter (int index)
void	RefreshPainter (Serie serie)
void	SetPainterActive (int index, bool flag)
void	Internal_CheckAnimation ()
virtual void	OnDataZoomRangeChanged (DataZoom dataZoom)
override void	OnPointerDown (PointerEventData eventData)
override void	OnBeginDrag (PointerEventData eventData)
override void	OnDrag (PointerEventData eventData)
override void	OnEndDrag (PointerEventData eventData)
override void	OnScroll (PointerEventData eventData)
void	DrawSymbol (VertexHelper vh, SerieSymbolType type, float symbolSize, float tickness, Vector3 pos, Color32 color, Color32 toColor, Color32 fillColor, float gap, float[] cornerRadius)
void	DrawSymbol (VertexHelper vh, SerieSymbolType type, float symbolSize, float tickness, Vector3 pos, Color32 color, Color32 toColor, Color32 fillColor, float gap, float[] cornerRadius, Vector3 startPos)
void	DrawLabelBackground (VertexHelper vh, Serie serie, SerieData serieData)
Protected Attributes inherited from XCharts.BaseChart
string	m_ChartName
ChartTheme	m_Theme
Settings	m_Settings
List< Title >	m_Titles = new List<Title>() { Title.defaultTitle }
List< Legend >	m_Legends = new List<Legend>() { Legend.defaultLegend }
List< Tooltip >	m_Tooltips = new List<Tooltip>() { Tooltip.defaultTooltip }
List< Grid >	m_Grids = new List<Grid>()
List< XAxis >	m_XAxes = new List<XAxis>()
List< YAxis >	m_YAxes = new List<YAxis>()
List< DataZoom >	m_DataZooms = new List<DataZoom>()
List< VisualMap >	m_VisualMaps = new List<VisualMap>()
List< Vessel >	m_Vessels = new List<Vessel>()
List< Polar >	m_Polars = new List<Polar>()
List< RadiusAxis >	m_RadiusAxes = new List<RadiusAxis>()
List< AngleAxis >	m_AngleAxes = new List<AngleAxis>()
List< Radar >	m_Radars = new List<Radar>()
Series	m_Series = Series.defaultSeries
float	m_ChartWidth
float	m_ChartHeight
float	m_ChartX
float	m_ChartY
Vector3	m_ChartPosition = Vector3.zero
Vector2	m_ChartMinAnchor
Vector2	m_ChartMaxAnchor
Vector2	m_ChartPivot
Vector2	m_ChartSizeDelta
Rect	m_ChartRect = new Rect(0, 0, 0, 0)
Action< VertexHelper >	m_OnCustomDrawBaseCallback
Action< VertexHelper >	m_OnCustomDrawTopCallback
Action< VertexHelper, Serie >	m_OnCustomDrawSerieBeforeCallback
Action< VertexHelper, Serie >	m_OnCustomDrawSerieAfterCallback
Action< PointerEventData, int, int >	m_OnPointerClickPie
bool	m_RefreshLabel = false
List< string >	m_LegendRealShowName = new List<string>()
List< Painter >	m_PainterList = new List<Painter>()
GameObject	m_SerieLabelRoot
List< IDrawSerie >	m_DrawSeries = new List<IDrawSerie>()
List< IComponentHandler >	m_ComponentHandlers = new List<IComponentHandler>()
Static Protected Attributes inherited from XCharts.BaseChart
static readonly string	s_TitleObjectName = "title"
static readonly string	s_SubTitleObjectName = "title_sub"
static readonly string	s_LegendObjectName = "legend"
static readonly string	s_SerieLabelObjectName = "label"
static readonly string	s_SerieTitleObjectName = "serie"
Properties inherited from XCharts.BaseChart
string	chartName [get, set]
	The name of chart. More...
ChartTheme	theme [get, set]
	The theme. More...
Title?	title [get]
	The title setting of chart. 标题组件 More...
List< Title >	titles [get]
Legend?	legend [get]
	The legend setting of chart. 图例组件 More...
List< Legend >	legends [get]
Tooltip?	tooltip [get]
	The tooltip setting of chart. 提示框组件 More...
Series	series [get]
	The series setting of chart. 系列列表 More...
Settings	settings [get]
	Global parameter setting component. 全局设置组件。 More...
DataZoom?	dataZoom [get]
	dataZoom component. 区域缩放组件。 More...
List< DataZoom >	dataZooms [get]
VisualMap?	visualMap [get]
	visualMap component. 视觉映射组件。 More...
List< VisualMap >	visualMaps [get]
float	chartX [get]
	The x of chart. 图表的X More...
float	chartY [get]
	The y of chart. 图表的Y More...
float	chartWidth [get]
	The width of chart. 图表的宽 More...
float	chartHeight [get]
	The height of chart. 图表的高 More...
Vector2	chartMinAnchor [get]
Vector2	chartMaxAnchor [get]
Vector2	chartPivot [get]
Vector2	chartSizeDelta [get]
Vector3	chartPosition [get]
	The position of chart. 图表的左下角起始坐标。 More...
Rect	chartRect [get]
Action< VertexHelper >	onCustomDraw [set]
	自定义绘制回调。在绘制Serie前调用。 More...
Action< VertexHelper, Serie >	onCustomDrawBeforeSerie [set]
	自定义Serie绘制回调。在每个Serie绘制完前调用。 More...
Action< VertexHelper, Serie >	onCustomDrawAfterSerie [set]
	自定义Serie绘制回调。在每个Serie绘制完后调用。 More...
Action< VertexHelper >	onCustomDrawTop [set]
	自定义Top绘制回调。在绘制Tooltip前调用。 More...
Action< PointerEventData, int, int >	onPointerClickPie [get, set]
	the callback function of click pie area. 点击饼图区域回调。参数：PointerEventData，SerieIndex，SerieDataIndex More...
Vessel?	vessel [get]
List< Vessel >	vessels [get]
	容器组件列表。 More...
Polar?	polar [get]
	极坐标。 More...
AngleAxis?	angleAxis [get]
	Angle axis of Polar Coordinate. 极坐标系的角度轴。 More...
RadiusAxis?	radiusAxis [get]
	Radial axis of polar coordinate. 极坐标系的径向轴。 More...
Radar?	radar [get]
List< Radar >	radars [get]
	雷达坐标系组件列表。 More...

Detailed Description

Definition at line 17 of file RadarChart.cs.

---

The documentation for this class was generated from the following file:

• RadarChart.cs
