Text label of chart, to explain some data information about graphic item like value, name and so on. 图形上的文本标签，可用于说明图形的一些数据信息，比如值，名称等。 More...

Inheritance diagram for XCharts.SerieLabel:

[legend]

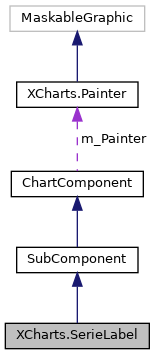

Collaboration diagram for XCharts.SerieLabel:

[legend]

Public Types
enum	Position { Position.Outside, Position.Inside, Position.Center, Position.Top, Position.Bottom, Position.Left, Position.Right, Position.Start, Position.Middle, Position.End }
	The position of label. 标签的位置。 More...

enum	LineType { LineType.BrokenLine, LineType.Curves, LineType.HorizontalLine }
	标签视觉引导线类型 More...

Public Member Functions
void	Reset ()

bool	IsInside ()

Color	GetColor (Color defaultColor)

TextAnchor	GetAutoAlignment ()

Public Member Functions inherited from XCharts.ChartComponent
virtual void	SetVerticesDirty ()

virtual void	ClearVerticesDirty ()

virtual void	SetComponentDirty ()

virtual void	ClearComponentDirty ()

virtual void	ClearDirty ()

virtual void	SetAllDirty ()

Properties
bool	show `[get, set]`
	Whether the label is showed. 是否显示文本标签。 More...

Position	position `[get, set]`
	The position of label. 标签的位置。 More...

string	formatter `[get, set]`
	标签内容字符串模版格式器。支持用换行。模板变量有： {a}：系列名。 {b}：数据名。 {c}：数据值。 {d}：百分比。 More...

Vector3	offset `[get, set]`
	offset to the host graphic element. 距离图形元素的偏移 More...

float	margin `[get, set]`
	距离轴线的距离。 More...

float	backgroundWidth `[get, set]`
	the width of background. If set as default value 0, it means than the background width auto set as the text width. 标签的背景宽度。一般不用指定，不指定时则自动是文字的宽度。 More...

float	backgroundHeight `[get, set]`
	the height of background. If set as default value 0, it means than the background height auto set as the text height. 标签的背景高度。一般不用指定，不指定时则自动是文字的高度。 More...

float	paddingLeftRight `[get, set]`
	the text padding of left and right. defaut:2. 左右边距。 More...

float	paddingTopBottom `[get, set]`
	the text padding of top and bottom. defaut:2. 上下边距。 More...

bool	line `[get, set]`
	Whether to show visual guide line.Will show when label position is set as 'outside'. 是否显示视觉引导线。在 label 位置设置为'outside'的时候会显示视觉引导线。 More...

LineType	lineType `[get, set]`
	the type of visual guide line. 视觉引导线类型。 More...

Color32	lineColor `[get, set]`
	the color of visual guild line. 视觉引导线颜色。默认和serie一致取自调色板。 More...

float	lineWidth `[get, set]`
	the width of visual guild line. 视觉引导线的宽度。 More...

float	lineGap `[get, set]`
	the gap of container and guild line. 视觉引导线和容器的间距。 More...

float	lineLength1 `[get, set]`
	The length of the first segment of visual guide line. 视觉引导线第一段的长度。 More...

float	lineLength2 `[get, set]`
	The length of the second segment of visual guide line. 视觉引导线第二段的长度。 More...

bool	border `[get, set]`
	Whether to show border. 是否显示边框。 More...

float	borderWidth `[get, set]`
	the width of border. 边框宽度。 More...

Color32	borderColor `[get, set]`
	the color of border. 边框颜色。 More...

string	numericFormatter `[get, set]`
	Standard numeric format strings. 标准数字格式字符串。用于将数值格式化显示为字符串。使用Axx的形式：A是格式说明符的单字符，支持C货币、D十进制、E指数、F定点数、G常规、N数字、P百分比、R往返、X十六进制的。xx是精度说明，从0-99。参考：https://docs.microsoft.com/zh-cn/dotnet/standard/base-types/standard-numeric-format-strings More...

bool	autoOffset `[get, set]`
	是否开启自动偏移。当开启时，Y的偏移会自动判断曲线的开口来决定向上还是向下偏移。 More...

TextStyle	textStyle `[get, set]`
	the sytle of text. 文本样式。 More...

DelegateSerieLabelFormatter	formatterFunction `[get, set]`

Properties inherited from XCharts.ChartComponent
virtual bool	vertsDirty `[get]`
	图表重绘标记。 More...

virtual bool	componentDirty `[get]`
	组件重新初始化标记。 More...

bool	anyDirty `[get]`
	需要重绘图表或重新初始化组件。 More...

Painter	painter `[get, set]`

Action	refreshComponent `[get, set]`

GameObject	gameObject `[get, set]`

Additional Inherited Members
Protected Attributes inherited from XCharts.ChartComponent
bool	m_VertsDirty

bool	m_ComponentDirty

Painter	m_Painter

Detailed Description

Text label of chart, to explain some data information about graphic item like value, name and so on. 图形上的文本标签，可用于说明图形的一些数据信息，比如值，名称等。

Definition at line 18 of file SerieLabel.cs.

Member Enumeration Documentation

◆ LineType

enum XCharts.SerieLabel.LineType

strong

标签视觉引导线类型

Enumerator
BrokenLine	折线
Curves	曲线
HorizontalLine	水平线

Definition at line 81 of file SerieLabel.cs.

         {
             BrokenLine,
             Curves,
             HorizontalLine
         }

◆ Position

enum XCharts.SerieLabel.Position

strong

The position of label. 标签的位置。

Enumerator
Outside	Outside of sectors of pie chart, which relates to corresponding sector through visual guide line. 饼图扇区外侧，通过视觉引导线连到相应的扇区。
Inside	Inside the sectors of pie chart. 饼图扇区内部。
Center	In the center of pie chart. 在饼图中心位置。
Top	top of symbol. 图形标志的顶部。
Bottom	the bottom of symbol. 图形标志的底部。
Left	the left of symbol. 图形标志的左边。
Right	the right of symbol. 图形标志的右边。
Start	the start of line. 线的起始点。
Middle	the middle of line. 线的中点。
End	the end of line. 线的结束点。

Definition at line 24 of file SerieLabel.cs.

         {
             Outside,
             Inside,
             Center,
             Top,
             Bottom,
             Left,
             Right,
             Start,
             Middle,
             End
         }

Property Documentation

◆ autoOffset

bool XCharts.SerieLabel.autoOffset

getset

是否开启自动偏移。当开启时，Y的偏移会自动判断曲线的开口来决定向上还是向下偏移。

Definition at line 341 of file SerieLabel.cs.

         {
             get { return m_AutoOffset; }
             set { if (PropertyUtil.SetStruct(ref m_AutoOffset, value)) SetAllDirty(); }
         }

◆ backgroundHeight

float XCharts.SerieLabel.backgroundHeight

getset

the height of background. If set as default value 0, it means than the background height auto set as the text height. 标签的背景高度。一般不用指定，不指定时则自动是文字的高度。

Definition at line 213 of file SerieLabel.cs.

         {
             get { return m_BackgroundHeight; }
             set { if (PropertyUtil.SetStruct(ref m_BackgroundHeight, value)) SetComponentDirty(); }
         }

◆ backgroundWidth

float XCharts.SerieLabel.backgroundWidth

getset

the width of background. If set as default value 0, it means than the background width auto set as the text width. 标签的背景宽度。一般不用指定，不指定时则自动是文字的宽度。

Definition at line 203 of file SerieLabel.cs.

         {
             get { return m_BackgroundWidth; }
             set { if (PropertyUtil.SetStruct(ref m_BackgroundWidth, value)) SetComponentDirty(); }
         }

◆ border

bool XCharts.SerieLabel.border

getset

Whether to show border. 是否显示边框。

Definition at line 303 of file SerieLabel.cs.

         {
             get { return m_Border; }
             set { if (PropertyUtil.SetStruct(ref m_Border, value)) SetVerticesDirty(); }
         }

◆ borderColor

Color32 XCharts.SerieLabel.borderColor

getset

the color of border. 边框颜色。

Definition at line 321 of file SerieLabel.cs.

         {
             get { return m_BorderColor; }
             set { if (PropertyUtil.SetStruct(ref m_BorderColor, value)) SetVerticesDirty(); }
         }

◆ borderWidth

float XCharts.SerieLabel.borderWidth

getset

the width of border. 边框宽度。

Definition at line 312 of file SerieLabel.cs.

         {
             get { return m_BorderWidth; }
             set { if (PropertyUtil.SetStruct(ref m_BorderWidth, value)) SetVerticesDirty(); }
         }

◆ formatter

string XCharts.SerieLabel.formatter

getset

标签内容字符串模版格式器。支持用
换行。模板变量有：

{a}：系列名。
{b}：数据名。
{c}：数据值。
{d}：百分比。

示例：“{b}:{c}”

Definition at line 176 of file SerieLabel.cs.

         {
             get { return m_Formatter; }
             set { if (PropertyUtil.SetClass(ref m_Formatter, value)) SetVerticesDirty(); }
         }

◆ line

bool XCharts.SerieLabel.line

getset

Whether to show visual guide line.Will show when label position is set as 'outside'. 是否显示视觉引导线。在 label 位置设置为'outside'的时候会显示视觉引导线。

Definition at line 240 of file SerieLabel.cs.

         {
             get { return m_Line; }
             set { if (PropertyUtil.SetStruct(ref m_Line, value)) SetComponentDirty(); }
         }

◆ lineColor

Color32 XCharts.SerieLabel.lineColor

getset

the color of visual guild line. 视觉引导线颜色。默认和serie一致取自调色板。

Definition at line 258 of file SerieLabel.cs.

         {
             get { return m_LineColor; }
             set { if (PropertyUtil.SetStruct(ref m_LineColor, value)) SetVerticesDirty(); }
         }

◆ lineGap

float XCharts.SerieLabel.lineGap

getset

the gap of container and guild line. 视觉引导线和容器的间距。

Definition at line 276 of file SerieLabel.cs.

         {
             get { return m_LineGap; }
             set { if (PropertyUtil.SetStruct(ref m_LineGap, value)) SetVerticesDirty(); }
         }

◆ lineLength1

float XCharts.SerieLabel.lineLength1

getset

The length of the first segment of visual guide line. 视觉引导线第一段的长度。

Definition at line 285 of file SerieLabel.cs.

         {
             get { return m_LineLength1; }
             set { if (PropertyUtil.SetStruct(ref m_LineLength1, value)) SetVerticesDirty(); }
         }

◆ lineLength2

float XCharts.SerieLabel.lineLength2

getset

The length of the second segment of visual guide line. 视觉引导线第二段的长度。

Definition at line 294 of file SerieLabel.cs.

         {
             get { return m_LineLength2; }
             set { if (PropertyUtil.SetStruct(ref m_LineLength2, value)) SetVerticesDirty(); }
         }

◆ lineType

LineType XCharts.SerieLabel.lineType

getset

the type of visual guide line. 视觉引导线类型。

Definition at line 249 of file SerieLabel.cs.

         {
             get { return m_LineType; }
             set { if (PropertyUtil.SetStruct(ref m_LineType, value)) SetVerticesDirty(); }
         }

◆ lineWidth

float XCharts.SerieLabel.lineWidth

getset

the width of visual guild line. 视觉引导线的宽度。

Definition at line 267 of file SerieLabel.cs.

         {
             get { return m_LineWidth; }
             set { if (PropertyUtil.SetStruct(ref m_LineWidth, value)) SetVerticesDirty(); }
         }

◆ margin

float XCharts.SerieLabel.margin

getset

距离轴线的距离。

Definition at line 193 of file SerieLabel.cs.

         {
             get { return m_Margin; }
             set { if (PropertyUtil.SetStruct(ref m_Margin, value)) SetVerticesDirty(); }
         }

◆ numericFormatter

string XCharts.SerieLabel.numericFormatter

getset

Standard numeric format strings. 标准数字格式字符串。用于将数值格式化显示为字符串。使用Axx的形式：A是格式说明符的单字符，支持C货币、D十进制、E指数、F定点数、G常规、N数字、P百分比、R往返、X十六进制的。xx是精度说明，从0-99。参考：https://docs.microsoft.com/zh-cn/dotnet/standard/base-types/standard-numeric-format-strings

Definition at line 333 of file SerieLabel.cs.

         {
             get { return m_NumericFormatter; }
             set { if (PropertyUtil.SetClass(ref m_NumericFormatter, value)) SetComponentDirty(); }
         }

◆ offset

Vector3 XCharts.SerieLabel.offset

getset

offset to the host graphic element. 距离图形元素的偏移

Definition at line 185 of file SerieLabel.cs.

         {
             get { return m_Offset; }
             set { if (PropertyUtil.SetStruct(ref m_Offset, value)) SetVerticesDirty(); }
         }

◆ paddingLeftRight

float XCharts.SerieLabel.paddingLeftRight

getset

the text padding of left and right. defaut:2. 左右边距。

Definition at line 222 of file SerieLabel.cs.

         {
             get { return m_PaddingLeftRight; }
             set { if (PropertyUtil.SetStruct(ref m_PaddingLeftRight, value)) SetComponentDirty(); }
         }

◆ paddingTopBottom

float XCharts.SerieLabel.paddingTopBottom

getset

the text padding of top and bottom. defaut:2. 上下边距。

Definition at line 231 of file SerieLabel.cs.

         {
             get { return m_PaddingTopBottom; }
             set { if (PropertyUtil.SetStruct(ref m_PaddingTopBottom, value)) SetComponentDirty(); }
         }

◆ position

Position XCharts.SerieLabel.position

getset

The position of label. 标签的位置。

Definition at line 158 of file SerieLabel.cs.

         {
             get { return m_Position; }
             set { if (PropertyUtil.SetStruct(ref m_Position, value)) SetVerticesDirty(); }
         }

◆ show

bool XCharts.SerieLabel.show

getset

Whether the label is showed. 是否显示文本标签。

Definition at line 149 of file SerieLabel.cs.

         {
             get { return m_Show; }
             set { if (PropertyUtil.SetStruct(ref m_Show, value)) SetAllDirty(); }
         }

◆ textStyle

TextStyle XCharts.SerieLabel.textStyle

getset

the sytle of text. 文本样式。

Definition at line 351 of file SerieLabel.cs.

         {
             get { return m_TextStyle; }
             set { if (PropertyUtil.SetClass(ref m_TextStyle, value)) SetAllDirty(); }
         }

The documentation for this class was generated from the following file:

SerieLabel.cs
