图形样式。 More...

Inheritance diagram for XCharts.ItemStyle:

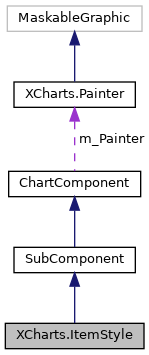

Collaboration diagram for XCharts.ItemStyle:

[legend]

Public Types
enum	Type { Type.Solid, Type.Dashed, Type.Dotted }
	线的类型。 More...

Public Member Functions
void	Reset ()

bool	NeedShowBorder ()
	是否需要显示边框。 More...

Color32	GetColor ()

Color32	GetColor0 ()

Color32	GetColor (Color32 defaultColor)

Color32	GetColor0 (Color32 defaultColor)

Color32	GetBorderColor (Color32 defaultColor)

Color32	GetBorderColor0 (Color32 defaultColor)

bool	IsNeedGradient ()

Color32	GetGradientColor (float value, Color32 defaultColor)

Public Member Functions inherited from XCharts.ChartComponent
virtual void	SetVerticesDirty ()

virtual void	ClearVerticesDirty ()

virtual void	SetComponentDirty ()

virtual void	ClearComponentDirty ()

virtual void	ClearDirty ()

virtual void	SetAllDirty ()

Properties
bool	show `[get, set]`
	是否启用。 More...

Color32	color `[get, set]`
	数据项颜色。 More...

Color32	color0 `[get, set]`
	数据项颜色。 More...

Color32	toColor `[get, set]`
	Gradient color1. 渐变色的颜色1。 More...

Color32	toColor2 `[get, set]`
	Gradient color2.Only valid in line diagrams. 渐变色的颜色2。只在折线图中有效。 More...

Color32	backgroundColor `[get, set]`
	数据项背景颜色。 More...

Color32	centerColor `[get, set]`
	中心区域颜色。 More...

float	centerGap `[get, set]`
	中心区域间隙。 More...

float	backgroundWidth `[get, set]`
	数据项背景宽度。 More...

Type	borderType `[get, set]`
	边框的类型。 More...

Color32	borderColor `[get, set]`
	边框的颜色。 More...

Color32	borderColor0 `[get, set]`
	边框的颜色。 More...

Color32	borderToColor `[get, set]`
	边框的渐变色。 More...

float	borderWidth `[get, set]`
	边框宽。 More...

float	opacity `[get, set]`
	透明度。支持从 0 到 1 的数字，为 0 时不绘制该图形。 More...

string	tooltipFormatter `[get, set]`
	提示框单项的字符串模版格式器。具体配置参考`Tooltip`的`formatter` More...

string	numericFormatter `[get, set]`
	Standard numeric format strings. 标准数字格式字符串。用于将数值格式化显示为字符串。使用Axx的形式：A是格式说明符的单字符，支持C货币、D十进制、E指数、F定点数、G常规、N数字、P百分比、R往返、X十六进制的。xx是精度说明，从0-99。参考：https://docs.microsoft.com/zh-cn/dotnet/standard/base-types/standard-numeric-format-strings More...

float[]	cornerRadius `[get, set]`
	The radius of rounded corner. Its unit is px. Use array to respectively specify the 4 corner radiuses((clockwise upper left, upper right, bottom right and bottom left)). 圆角半径。用数组分别指定4个圆角半径（顺时针左上，右上，右下，左下）。 More...

float?	runtimeBorderWidth `[get]`
	实际边框宽。边框不显示时为0。 More...

Properties inherited from XCharts.ChartComponent
virtual bool	vertsDirty `[get]`
	图表重绘标记。 More...

virtual bool	componentDirty `[get]`
	组件重新初始化标记。 More...

bool	anyDirty `[get]`
	需要重绘图表或重新初始化组件。 More...

Painter	painter `[get, set]`

Action	refreshComponent `[get, set]`

GameObject	gameObject `[get, set]`

Additional Inherited Members
Protected Attributes inherited from XCharts.ChartComponent
bool	m_VertsDirty

bool	m_ComponentDirty

Painter	m_Painter

Detailed Description

图形样式。

Definition at line 18 of file ItemStyle.cs.

Member Enumeration Documentation

◆ Type

enum XCharts.ItemStyle.Type

strong

线的类型。

Enumerator
Solid	实线
Dashed	虚线
Dotted	点线

Definition at line 23 of file ItemStyle.cs.

         {
             Solid,
             Dashed,
             Dotted
         }

Member Function Documentation

◆ NeedShowBorder()

bool XCharts.ItemStyle.NeedShowBorder ( )

inline

是否需要显示边框。

Definition at line 246 of file ItemStyle.cs.

         {
             return borderWidth != 0 && !ChartHelper.IsClearColor(borderColor);
         }

Property Documentation

◆ backgroundColor

Color32 XCharts.ItemStyle.backgroundColor

getset

数据项背景颜色。

Definition at line 133 of file ItemStyle.cs.

         {
             get { return m_BackgroundColor; }
             set { if (PropertyUtil.SetColor(ref m_BackgroundColor, value)) SetVerticesDirty(); }
         }

◆ backgroundWidth

float XCharts.ItemStyle.backgroundWidth

getset

数据项背景宽度。

Definition at line 157 of file ItemStyle.cs.

         {
             get { return m_BackgroundWidth; }
             set { if (PropertyUtil.SetStruct(ref m_BackgroundWidth, value)) SetVerticesDirty(); }
         }

◆ borderColor

Color32 XCharts.ItemStyle.borderColor

getset

边框的颜色。

Definition at line 173 of file ItemStyle.cs.

         {
             get { return m_BorderColor; }
             set { if (PropertyUtil.SetColor(ref m_BorderColor, value)) SetVerticesDirty(); }
         }

◆ borderColor0

Color32 XCharts.ItemStyle.borderColor0

getset

边框的颜色。

Definition at line 181 of file ItemStyle.cs.

         {
             get { return m_BorderColor0; }
             set { if (PropertyUtil.SetColor(ref m_BorderColor0, value)) SetVerticesDirty(); }
         }

◆ borderToColor

Color32 XCharts.ItemStyle.borderToColor

getset

边框的渐变色。

Definition at line 189 of file ItemStyle.cs.

         {
             get { return m_BorderToColor; }
             set { if (PropertyUtil.SetColor(ref m_BorderToColor, value)) SetVerticesDirty(); }
         }

◆ borderType

Type XCharts.ItemStyle.borderType

getset

边框的类型。

Definition at line 165 of file ItemStyle.cs.

         {
             get { return m_BorderType; }
             set { if (PropertyUtil.SetStruct(ref m_BorderType, value)) SetVerticesDirty(); }
         }

◆ borderWidth

float XCharts.ItemStyle.borderWidth

getset

边框宽。

Definition at line 197 of file ItemStyle.cs.

         {
             get { return m_BorderWidth; }
             set { if (PropertyUtil.SetStruct(ref m_BorderWidth, value)) SetVerticesDirty(); }
         }

◆ centerColor

Color32 XCharts.ItemStyle.centerColor

getset

中心区域颜色。

Definition at line 141 of file ItemStyle.cs.

         {
             get { return m_CenterColor; }
             set { if (PropertyUtil.SetColor(ref m_CenterColor, value)) SetVerticesDirty(); }
         }

◆ centerGap

float XCharts.ItemStyle.centerGap

getset

中心区域间隙。

Definition at line 149 of file ItemStyle.cs.

         {
             get { return m_CenterGap; }
             set { if (PropertyUtil.SetStruct(ref m_CenterGap, value)) SetVerticesDirty(); }
         }

◆ color

Color32 XCharts.ItemStyle.color

getset

数据项颜色。

Definition at line 99 of file ItemStyle.cs.

         {
             get { return m_Color; }
             set { if (PropertyUtil.SetColor(ref m_Color, value)) SetVerticesDirty(); }
         }

◆ color0

Color32 XCharts.ItemStyle.color0

getset

数据项颜色。

Definition at line 107 of file ItemStyle.cs.

         {
             get { return m_Color0; }
             set { if (PropertyUtil.SetColor(ref m_Color0, value)) SetVerticesDirty(); }
         }

◆ cornerRadius

float [] XCharts.ItemStyle.cornerRadius

getset

The radius of rounded corner. Its unit is px. Use array to respectively specify the 4 corner radiuses((clockwise upper left, upper right, bottom right and bottom left)). 圆角半径。用数组分别指定4个圆角半径（顺时针左上，右上，右下，左下）。

Definition at line 234 of file ItemStyle.cs.

         {
             get { return m_CornerRadius; }
             set { if (PropertyUtil.SetClass(ref m_CornerRadius, value, true)) SetVerticesDirty(); }
         }

◆ numericFormatter

string XCharts.ItemStyle.numericFormatter

getset

Standard numeric format strings. 标准数字格式字符串。用于将数值格式化显示为字符串。使用Axx的形式：A是格式说明符的单字符，支持C货币、D十进制、E指数、F定点数、G常规、N数字、P百分比、R往返、X十六进制的。xx是精度说明，从0-99。参考：https://docs.microsoft.com/zh-cn/dotnet/standard/base-types/standard-numeric-format-strings

Definition at line 225 of file ItemStyle.cs.

         {
             get { return m_NumericFormatter; }
             set { if (PropertyUtil.SetClass(ref m_NumericFormatter, value)) SetComponentDirty(); }
         }

◆ opacity

float XCharts.ItemStyle.opacity

getset

透明度。支持从 0 到 1 的数字，为 0 时不绘制该图形。

Definition at line 205 of file ItemStyle.cs.

         {
             get { return m_Opacity; }
             set { if (PropertyUtil.SetStruct(ref m_Opacity, value)) SetVerticesDirty(); }
         }

◆ runtimeBorderWidth

float? XCharts.ItemStyle.runtimeBorderWidth

get

实际边框宽。边框不显示时为0。

Definition at line 241 of file ItemStyle.cs.

241 { get { return NeedShowBorder() ? borderWidth : 0; } }

◆ show

bool XCharts.ItemStyle.show

getset

是否启用。

Definition at line 91 of file ItemStyle.cs.

         {
             get { return m_Show; }
             set { if (PropertyUtil.SetStruct(ref m_Show, value)) SetVerticesDirty(); }
         }

◆ toColor

Color32 XCharts.ItemStyle.toColor

getset

Gradient color1. 渐变色的颜色1。

Definition at line 116 of file ItemStyle.cs.

         {
             get { return m_ToColor; }
             set { if (PropertyUtil.SetColor(ref m_ToColor, value)) SetVerticesDirty(); }
         }

◆ toColor2

Color32 XCharts.ItemStyle.toColor2

getset

Gradient color2.Only valid in line diagrams. 渐变色的颜色2。只在折线图中有效。

Definition at line 125 of file ItemStyle.cs.

         {
             get { return m_ToColor2; }
             set { if (PropertyUtil.SetColor(ref m_ToColor2, value)) SetVerticesDirty(); }
         }

◆ tooltipFormatter

string XCharts.ItemStyle.tooltipFormatter

getset

提示框单项的字符串模版格式器。具体配置参考Tooltip的formatter

Definition at line 213 of file ItemStyle.cs.

         {
             get { return m_TooltipFormatter; }
             set { if (PropertyUtil.SetClass(ref m_TooltipFormatter, value)) SetVerticesDirty(); }
         }

The documentation for this class was generated from the following file:

ItemStyle.cs
