Settings related to axis label. 坐标轴刻度标签的相关设置。 More...

Inheritance diagram for XCharts.AxisLabel:

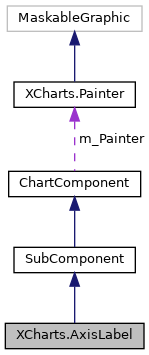

Collaboration diagram for XCharts.AxisLabel:

[legend]

Public Member Functions
override void	ClearComponentDirty ()

AxisLabel	Clone ()

void	Copy (AxisLabel axisLabel)

void	SetRelatedText (ChartText txt, float labelWidth)

string	GetFormatterContent (int labelIndex, string category)

string	GetFormatterContent (int labelIndex, double value, double minValue, double maxValue, bool isLog=false)

string	GetFormatterDateTime (int labelIndex, double value)

Public Member Functions inherited from XCharts.ChartComponent
virtual void	SetVerticesDirty ()

virtual void	ClearVerticesDirty ()

virtual void	SetComponentDirty ()

virtual void	ClearDirty ()

virtual void	SetAllDirty ()

Properties
bool	show `[get, set]`
	Set this to false to prevent the axis label from appearing. 是否显示刻度标签。 More...

int	interval `[get, set]`
	The display interval of the axis label. 坐标轴刻度标签的显示间隔，在类目轴中有效。0表示显示所有标签，1表示隔一个隔显示一个标签，以此类推。 More...

bool	inside `[get, set]`
	Set this to true so the axis labels face the inside direction. 刻度标签是否朝内，默认朝外。 More...

float	margin `[get, set]`
	The margin between the axis label and the axis line. 刻度标签与轴线之间的距离。 More...

string	formatter `[get, set]`
	图例内容字符串模版格式器。支持用换行。模板变量为图例名称 {value}。 More...

string	numericFormatter `[get, set]`
	Standard numeric format strings. 标准数字格式字符串。用于将数值格式化显示为字符串。使用Axx的形式：A是格式说明符的单字符，支持C货币、D十进制、E指数、F定点数、G常规、N数字、P百分比、R往返、X十六进制的。xx是精度说明，从0-99。参考：https://docs.microsoft.com/zh-cn/dotnet/standard/base-types/standard-numeric-format-strings More...

bool	showAsPositiveNumber `[get, set]`
	Show negative number as positive number. 将负数数值显示为正数。一般和`Serie`的`showAsPositiveNumber`配合使用。 More...

bool	onZero `[get, set]`
	刻度标签显示在0刻度上。 More...

float	width `[get, set]`
	文本的宽。为0时会自动匹配。 More...

float	height `[get, set]`
	文本的高。为0时会自动匹配。 More...

bool	showStartLabel `[get, set]`
	Whether to display the first label. 是否显示第一个文本。 More...

bool	showEndLabel `[get, set]`
	Whether to display the last label. 是否显示最后一个文本。 More...

TextLimit	textLimit `[get, set]`
	文本限制。 More...

TextStyle	textStyle `[get, set]`
	The text style of axis name. 文本样式。 More...

DelegateAxisLabelFormatter	formatterFunction `[set]`

override bool	componentDirty `[get]`

static AxisLabel	defaultAxisLabel `[get]`

Properties inherited from XCharts.ChartComponent
virtual bool	vertsDirty `[get]`
	图表重绘标记。 More...

virtual bool	componentDirty `[get]`
	组件重新初始化标记。 More...

bool	anyDirty `[get]`
	需要重绘图表或重新初始化组件。 More...

Painter	painter `[get, set]`

Action	refreshComponent `[get, set]`

GameObject	gameObject `[get, set]`

Additional Inherited Members
Protected Attributes inherited from XCharts.ChartComponent
bool	m_VertsDirty

bool	m_ComponentDirty

Painter	m_Painter

Detailed Description

Settings related to axis label. 坐标轴刻度标签的相关设置。

Definition at line 19 of file AxisLabel.cs.

Property Documentation

◆ formatter

string XCharts.AxisLabel.formatter

getset

图例内容字符串模版格式器。支持用
换行。模板变量为图例名称 {value}。

Definition at line 78 of file AxisLabel.cs.

         {
             get { return m_Formatter; }
             set { if (PropertyUtil.SetClass(ref m_Formatter, value)) SetComponentDirty(); }
         }

◆ height

float XCharts.AxisLabel.height

getset

文本的高。为0时会自动匹配。

Definition at line 126 of file AxisLabel.cs.

         {
             get { return m_Height; }
             set { if (PropertyUtil.SetStruct(ref m_Height, value)) SetComponentDirty(); }
         }

◆ inside

bool XCharts.AxisLabel.inside

getset

Set this to true so the axis labels face the inside direction. 刻度标签是否朝内，默认朝外。

Definition at line 60 of file AxisLabel.cs.

         {
             get { return m_Inside; }
             set { if (PropertyUtil.SetStruct(ref m_Inside, value)) SetComponentDirty(); }
         }

◆ interval

int XCharts.AxisLabel.interval

getset

The display interval of the axis label. 坐标轴刻度标签的显示间隔，在类目轴中有效。0表示显示所有标签，1表示隔一个隔显示一个标签，以此类推。

Definition at line 51 of file AxisLabel.cs.

         {
             get { return m_Interval; }
             set { if (PropertyUtil.SetStruct(ref m_Interval, value)) SetComponentDirty(); }
         }

◆ margin

float XCharts.AxisLabel.margin

getset

The margin between the axis label and the axis line. 刻度标签与轴线之间的距离。

Definition at line 69 of file AxisLabel.cs.

         {
             get { return m_Margin; }
             set { if (PropertyUtil.SetStruct(ref m_Margin, value)) SetComponentDirty(); }
         }

◆ numericFormatter

string XCharts.AxisLabel.numericFormatter

getset

Standard numeric format strings. 标准数字格式字符串。用于将数值格式化显示为字符串。使用Axx的形式：A是格式说明符的单字符，支持C货币、D十进制、E指数、F定点数、G常规、N数字、P百分比、R往返、X十六进制的。xx是精度说明，从0-99。参考：https://docs.microsoft.com/zh-cn/dotnet/standard/base-types/standard-numeric-format-strings

Definition at line 91 of file AxisLabel.cs.

         {
             get { return m_NumericFormatter; }
             set { if (PropertyUtil.SetClass(ref m_NumericFormatter, value)) SetComponentDirty(); }
         }

◆ onZero

bool XCharts.AxisLabel.onZero

getset

刻度标签显示在0刻度上。

Definition at line 110 of file AxisLabel.cs.

         {
             get { return m_OnZero; }
             set { if (PropertyUtil.SetStruct(ref m_OnZero, value)) SetComponentDirty(); }
         }

◆ show

bool XCharts.AxisLabel.show

getset

Set this to false to prevent the axis label from appearing. 是否显示刻度标签。

Definition at line 42 of file AxisLabel.cs.

         {
             get { return m_Show; }
             set { if (PropertyUtil.SetStruct(ref m_Show, value)) SetComponentDirty(); }
         }

◆ showAsPositiveNumber

bool XCharts.AxisLabel.showAsPositiveNumber

getset

Show negative number as positive number. 将负数数值显示为正数。一般和Serie的showAsPositiveNumber配合使用。

Definition at line 101 of file AxisLabel.cs.

         {
             get { return m_ShowAsPositiveNumber; }
             set { if (PropertyUtil.SetStruct(ref m_ShowAsPositiveNumber, value)) SetComponentDirty(); }
         }

◆ showEndLabel

bool XCharts.AxisLabel.showEndLabel

getset

Whether to display the last label. 是否显示最后一个文本。

Definition at line 144 of file AxisLabel.cs.

         {
             get { return m_ShowEndLabel; }
             set { if (PropertyUtil.SetStruct(ref m_ShowEndLabel, value)) SetComponentDirty(); }
         }

◆ showStartLabel

bool XCharts.AxisLabel.showStartLabel

getset

Whether to display the first label. 是否显示第一个文本。

Definition at line 135 of file AxisLabel.cs.

         {
             get { return m_ShowStartLabel; }
             set { if (PropertyUtil.SetStruct(ref m_ShowStartLabel, value)) SetComponentDirty(); }
         }

◆ textLimit

TextLimit XCharts.AxisLabel.textLimit

getset

文本限制。

Definition at line 152 of file AxisLabel.cs.

         {
             get { return m_TextLimit; }
             set { if (value != null) { m_TextLimit = value; SetComponentDirty(); } }
         }

◆ textStyle

TextStyle XCharts.AxisLabel.textStyle

getset

The text style of axis name. 文本样式。

Definition at line 162 of file AxisLabel.cs.

         {
             get { return m_TextStyle; }
             set { if (PropertyUtil.SetClass(ref m_TextStyle, value)) SetComponentDirty(); }
         }

◆ width

float XCharts.AxisLabel.width

getset

文本的宽。为0时会自动匹配。

Definition at line 118 of file AxisLabel.cs.

         {
             get { return m_Width; }
             set { if (PropertyUtil.SetStruct(ref m_Width, value)) SetComponentDirty(); }
         }

The documentation for this class was generated from the following file:

AxisLabel.cs
