系列数据项的标记的图形 More...

Inheritance diagram for XCharts.SerieSymbol:

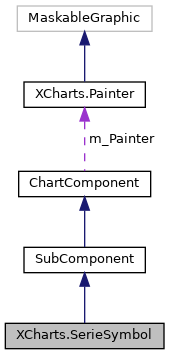

Collaboration diagram for XCharts.SerieSymbol:

[legend]

Public Member Functions
void	Reset ()

float	GetSize (List< double > data, float themeSize)
	根据指定的sizeType获得标记的大小 More...

float	GetSelectedSize (List< double > data, float themeSelectedSize)
	根据sizeType获得高亮时的标记大小 More...

bool	ShowSymbol (int dataIndex, int dataCount)

Public Member Functions inherited from XCharts.ChartComponent
virtual void	SetVerticesDirty ()

virtual void	ClearVerticesDirty ()

virtual void	SetComponentDirty ()

virtual void	ClearComponentDirty ()

virtual void	ClearDirty ()

virtual void	SetAllDirty ()

Properties
bool	show `[get, set]`
	Whether the symbol is showed. 是否显示标记。 More...

SerieSymbolType	type `[get, set]`
	the type of symbol. 标记类型。 More...

SerieSymbolSizeType	sizeType `[get, set]`
	the type of symbol size. 标记图形的大小获取方式。 More...

float	size `[get, set]`
	the size of symbol. 标记的大小。 More...

float	selectedSize `[get, set]`
	the size of selected symbol. 被选中的标记的大小。 More...

int	dataIndex `[get, set]`
	whitch data index is when the sizeType assined as FromData. 当sizeType指定为FromData时，指定的数据源索引。 More...

float	dataScale `[get, set]`
	the scale of data when sizeType assined as FromData. 当sizeType指定为FromData时，指定的倍数系数。 More...

float	selectedDataScale `[get, set]`
	the scale of selected data when sizeType assined as FromData. 当sizeType指定为FromData时，指定的高亮倍数系数。 More...

SymbolSizeCallback	sizeCallback `[get, set]`
	the callback of size when sizeType assined as Callback. 当sizeType指定为Callback时，指定的回调函数。 More...

SymbolSizeCallback	selectedSizeCallback `[get, set]`
	the callback of size when sizeType assined as Callback. 当sizeType指定为Callback时，指定的高亮回调函数。 More...

int	startIndex `[get, set]`
	the index start to show symbol. 开始显示图形标记的索引。 More...

int	interval `[get, set]`
	the interval of show symbol. 显示图形标记的间隔。0表示显示所有标签，1表示隔一个隔显示一个标签，以此类推。 More...

bool	forceShowLast `[get, set]`
	whether to show the last symbol. 是否强制显示最后一个图形标记。 More...

float	gap `[get, set]`
	the gap of symbol and line segment. 图形标记和线条的间隙距离。 More...

float	width `[get, set]`
	图形的宽。 More...

float	height `[get, set]`
	图形的高。 More...

bool	repeat `[get, set]`
	图形是否重复。 More...

Sprite	image `[get, set]`
	自定义的标记图形。 More...

Image.Type	imageType `[get, set]`

Vector2	offset `[get, set]`
	图形的偏移。 More...

Vector3	offset3 `[get]`

List< float >	animationSize `[get]`
	the setting for effect scatter. 带有涟漪特效动画的散点图的动画参数。 More...

Properties inherited from XCharts.ChartComponent
virtual bool	vertsDirty `[get]`
	图表重绘标记。 More...

virtual bool	componentDirty `[get]`
	组件重新初始化标记。 More...

bool	anyDirty `[get]`
	需要重绘图表或重新初始化组件。 More...

Painter	painter `[get, set]`

Action	refreshComponent `[get, set]`

GameObject	gameObject `[get, set]`

Additional Inherited Members
Protected Attributes inherited from XCharts.ChartComponent
bool	m_VertsDirty

bool	m_ComponentDirty

Painter	m_Painter

Detailed Description

系列数据项的标记的图形

Definition at line 91 of file SerieSymbol.cs.

Member Function Documentation

◆ GetSelectedSize()

float XCharts.SerieSymbol.GetSelectedSize	(	List< double >	data,
		float	themeSelectedSize
	)

inline

根据sizeType获得高亮时的标记大小

Parameters

data

Returns

Definition at line 349 of file SerieSymbol.cs.

         {
             switch (m_SizeType)
             {
                 case SerieSymbolSizeType.Custom:
                     return selectedSize == 0 ? themeSelectedSize : selectedSize;
                 case SerieSymbolSizeType.FromData:
                     if (data != null && dataIndex >= 0 && dataIndex < data.Count)
                     {
                         return (float)data[dataIndex] * m_SelectedDataScale;
                     }
                     else
                     {
                         return selectedSize == 0 ? themeSelectedSize : selectedSize;
                     }
                 case SerieSymbolSizeType.Callback:
                     if (data != null && selectedSizeCallback != null) return selectedSizeCallback(data);
                     else return selectedSize == 0 ? themeSelectedSize : selectedSize;
                 default: return selectedSize == 0 ? themeSelectedSize : selectedSize;
             }
         }

◆ GetSize()

float XCharts.SerieSymbol.GetSize	(	List< double >	data,
		float	themeSize
	)

inline

根据指定的sizeType获得标记的大小

Parameters

data

Returns

Definition at line 322 of file SerieSymbol.cs.

         {
             switch (m_SizeType)
             {
                 case SerieSymbolSizeType.Custom:
                     return size == 0 ? themeSize : size;
                 case SerieSymbolSizeType.FromData:
                     if (data != null && dataIndex >= 0 && dataIndex < data.Count)
                     {
                         return (float)data[dataIndex] * m_DataScale;
                     }
                     else
                     {
                         return size == 0 ? themeSize : size;
                     }
                 case SerieSymbolSizeType.Callback:
                     if (data != null && sizeCallback != null) return sizeCallback(data);
                     else return size == 0 ? themeSize : size;
                 default: return size == 0 ? themeSize : size;
             }
         }

Property Documentation

◆ animationSize

List<float> XCharts.SerieSymbol.animationSize

get

the setting for effect scatter. 带有涟漪特效动画的散点图的动画参数。

Definition at line 315 of file SerieSymbol.cs.

315 { get { return m_AnimationSize; } }

◆ dataIndex

int XCharts.SerieSymbol.dataIndex

getset

whitch data index is when the sizeType assined as FromData. 当sizeType指定为FromData时，指定的数据源索引。

Definition at line 188 of file SerieSymbol.cs.

         {
             get { return m_DataIndex; }
             set { if (PropertyUtil.SetStruct(ref m_DataIndex, value)) SetVerticesDirty(); }
         }

◆ dataScale

float XCharts.SerieSymbol.dataScale

getset

the scale of data when sizeType assined as FromData. 当sizeType指定为FromData时，指定的倍数系数。

Definition at line 197 of file SerieSymbol.cs.

         {
             get { return m_DataScale; }
             set { if (PropertyUtil.SetStruct(ref m_DataScale, value)) SetVerticesDirty(); }
         }

◆ forceShowLast

bool XCharts.SerieSymbol.forceShowLast

getset

whether to show the last symbol. 是否强制显示最后一个图形标记。

Definition at line 251 of file SerieSymbol.cs.

         {
             get { return m_ForceShowLast; }
             set { if (PropertyUtil.SetStruct(ref m_ForceShowLast, value)) SetVerticesDirty(); }
         }

◆ gap

float XCharts.SerieSymbol.gap

getset

the gap of symbol and line segment. 图形标记和线条的间隙距离。

Definition at line 260 of file SerieSymbol.cs.

         {
             get { return m_Gap; }
             set { if (PropertyUtil.SetStruct(ref m_Gap, value)) SetVerticesDirty(); }
         }

◆ height

float XCharts.SerieSymbol.height

getset

图形的高。

Definition at line 276 of file SerieSymbol.cs.

         {
             get { return m_Height; }
             set { if (PropertyUtil.SetStruct(ref m_Height, value)) SetAllDirty(); }
         }

◆ image

Sprite XCharts.SerieSymbol.image

getset

自定义的标记图形。

Definition at line 292 of file SerieSymbol.cs.

         {
             get { return m_Image; }
             set { if (PropertyUtil.SetClass(ref m_Image, value)) SetAllDirty(); }
         }

◆ interval

int XCharts.SerieSymbol.interval

getset

the interval of show symbol. 显示图形标记的间隔。0表示显示所有标签，1表示隔一个隔显示一个标签，以此类推。

Definition at line 242 of file SerieSymbol.cs.

         {
             get { return m_Interval; }
             set { if (PropertyUtil.SetStruct(ref m_Interval, value)) SetVerticesDirty(); }
         }

◆ offset

Vector2 XCharts.SerieSymbol.offset

getset

图形的偏移。

Definition at line 305 of file SerieSymbol.cs.

         {
             get { return m_Offset; }
             set { if (PropertyUtil.SetStruct(ref m_Offset, value)) SetAllDirty(); }
         }

◆ repeat

bool XCharts.SerieSymbol.repeat

getset

图形是否重复。

Definition at line 284 of file SerieSymbol.cs.

         {
             get { return m_Repeat; }
             set { if (PropertyUtil.SetStruct(ref m_Repeat, value)) SetAllDirty(); }
         }

◆ selectedDataScale

float XCharts.SerieSymbol.selectedDataScale

getset

the scale of selected data when sizeType assined as FromData. 当sizeType指定为FromData时，指定的高亮倍数系数。

Definition at line 206 of file SerieSymbol.cs.

         {
             get { return m_SelectedDataScale; }
             set { if (PropertyUtil.SetStruct(ref m_SelectedDataScale, value)) SetVerticesDirty(); }
         }

◆ selectedSize

float XCharts.SerieSymbol.selectedSize

getset

the size of selected symbol. 被选中的标记的大小。

Definition at line 179 of file SerieSymbol.cs.

         {
             get { return m_SelectedSize; }
             set { if (PropertyUtil.SetStruct(ref m_SelectedSize, value)) SetVerticesDirty(); }
         }

◆ selectedSizeCallback

SymbolSizeCallback XCharts.SerieSymbol.selectedSizeCallback

getset

the callback of size when sizeType assined as Callback. 当sizeType指定为Callback时，指定的高亮回调函数。

Definition at line 224 of file SerieSymbol.cs.

         {
             get { return m_SelectedSizeCallback; }
             set { if (PropertyUtil.SetClass(ref m_SelectedSizeCallback, value)) SetVerticesDirty(); }
         }

◆ show

bool XCharts.SerieSymbol.show

getset

Whether the symbol is showed. 是否显示标记。

Definition at line 143 of file SerieSymbol.cs.

         {
             get { return m_Show; }
             set { if (PropertyUtil.SetStruct(ref m_Show, value)) SetAllDirty(); }
         }

◆ size

float XCharts.SerieSymbol.size

getset

the size of symbol. 标记的大小。

Definition at line 170 of file SerieSymbol.cs.

         {
             get { return m_Size; }
             set { if (PropertyUtil.SetStruct(ref m_Size, value)) SetVerticesDirty(); }
         }

◆ sizeCallback

SymbolSizeCallback XCharts.SerieSymbol.sizeCallback

getset

the callback of size when sizeType assined as Callback. 当sizeType指定为Callback时，指定的回调函数。

Definition at line 215 of file SerieSymbol.cs.

         {
             get { return m_SizeCallback; }
             set { if (PropertyUtil.SetClass(ref m_SizeCallback, value)) SetVerticesDirty(); }
         }

◆ sizeType

SerieSymbolSizeType XCharts.SerieSymbol.sizeType

getset

the type of symbol size. 标记图形的大小获取方式。

Definition at line 161 of file SerieSymbol.cs.

         {
             get { return m_SizeType; }
             set { if (PropertyUtil.SetStruct(ref m_SizeType, value)) SetVerticesDirty(); }
         }

◆ startIndex

int XCharts.SerieSymbol.startIndex

getset

the index start to show symbol. 开始显示图形标记的索引。

Definition at line 233 of file SerieSymbol.cs.

         {
             get { return m_StartIndex; }
             set { if (PropertyUtil.SetStruct(ref m_StartIndex, value)) SetVerticesDirty(); }
         }

◆ type

SerieSymbolType XCharts.SerieSymbol.type

getset

the type of symbol. 标记类型。

Definition at line 152 of file SerieSymbol.cs.

         {
             get { return m_Type; }
             set { if (PropertyUtil.SetStruct(ref m_Type, value)) SetVerticesDirty(); }
         }

◆ width

float XCharts.SerieSymbol.width

getset

图形的宽。

Definition at line 268 of file SerieSymbol.cs.

         {
             get { return m_Width; }
             set { if (PropertyUtil.SetStruct(ref m_Width, value)) SetAllDirty(); }
         }

The documentation for this class was generated from the following file:

SerieSymbol.cs
