The style of line. 线条样式。注：修改 lineStyle 中的颜色不会影响图例颜色，如果需要图例颜色和折线图颜色一致，需修改 itemStyle.color，线条颜色默认也会取该颜色。 toColor，toColor2可设置水平方向的渐变，如需要设置垂直方向的渐变，可使用VisualMap。 More...

Inheritance diagram for XCharts.LineStyle:

[legend]

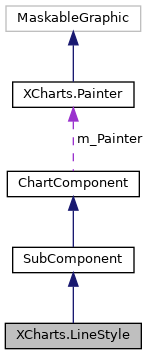

Collaboration diagram for XCharts.LineStyle:

[legend]

Public Types
enum	Type { Type.Solid, Type.Dashed, Type.Dotted, Type.DashDot, Type.DashDotDot, None }
	线的类型。 More...

Public Member Functions
	LineStyle (float width)

	LineStyle (LineStyle.Type type)

	LineStyle (LineStyle.Type type, float width)

LineStyle	Clone ()

void	Copy (LineStyle lineStyle)

Color32	GetColor ()

bool	IsNeedGradient ()

Color32	GetGradientColor (float value, Color32 defaultColor)

Type	GetType (Type themeType)

float	GetWidth (float themeWidth)

float	GetLength (float themeLength)

Color32	GetColor (Color32 themeColor)

Public Member Functions inherited from XCharts.ChartComponent
virtual void	SetVerticesDirty ()

virtual void	ClearVerticesDirty ()

virtual void	SetComponentDirty ()

virtual void	ClearComponentDirty ()

virtual void	ClearDirty ()

virtual void	SetAllDirty ()

Properties
bool	show `[get, set]`
	Whether show line. 是否显示线条。当作为子组件，它的父组件有参数控制是否显示时，改参数无效。 More...

Type	type `[get, set]`
	the type of line. 线的类型。 More...

Color32	color `[get, set]`
	the color of line, default use serie color. 线的颜色。 More...

Color32	toColor `[get, set]`
	the middle color of line, default use serie color. 线的渐变颜色（需要水平方向渐变时）。 More...

Color32	toColor2 `[get, set]`
	the end color of line, default use serie color. 线的渐变颜色2（需要水平方向三个渐变色的渐变时）。 More...

float	width `[get, set]`
	the width of line. 线宽。 /// More...

float	length `[get, set]`
	the length of line. 线长。 /// More...

float	opacity `[get, set]`
	Opacity of the line. Supports value from 0 to 1, and the line will not be drawn when set to 0. 线的透明度。支持从 0 到 1 的数字，为 0 时不绘制该图形。 More...

Properties inherited from XCharts.ChartComponent
virtual bool	vertsDirty `[get]`
	图表重绘标记。 More...

virtual bool	componentDirty `[get]`
	组件重新初始化标记。 More...

bool	anyDirty `[get]`
	需要重绘图表或重新初始化组件。 More...

Painter	painter `[get, set]`

Action	refreshComponent `[get, set]`

GameObject	gameObject `[get, set]`

Additional Inherited Members
Protected Attributes inherited from XCharts.ChartComponent
bool	m_VertsDirty

bool	m_ComponentDirty

Painter	m_Painter

Detailed Description

The style of line. 线条样式。注：修改 lineStyle 中的颜色不会影响图例颜色，如果需要图例颜色和折线图颜色一致，需修改 itemStyle.color，线条颜色默认也会取该颜色。 toColor，toColor2可设置水平方向的渐变，如需要设置垂直方向的渐变，可使用VisualMap。

Definition at line 20 of file LineStyle.cs.

Member Enumeration Documentation

◆ Type

enum XCharts.LineStyle.Type

strong

线的类型。

Enumerator
Solid	实线
Dashed	虚线
Dotted	点线
DashDot	点划线
DashDotDot	双点划线

Definition at line 25 of file LineStyle.cs.

         {
             Solid,
             Dashed,
             Dotted,
             DashDot,
             DashDotDot,
             None,
         }

Property Documentation

◆ color

Color32 XCharts.LineStyle.color

getset

the color of line, default use serie color. 线的颜色。

Definition at line 81 of file LineStyle.cs.

         {
             get { return m_Color; }
             set { if (PropertyUtil.SetColor(ref m_Color, value)) SetVerticesDirty(); }
         }

◆ length

float XCharts.LineStyle.length

getset

the length of line. 线长。 ///

Definition at line 117 of file LineStyle.cs.

         {
             get { return m_Length; }
             set { if (PropertyUtil.SetStruct(ref m_Length, value)) SetVerticesDirty(); }
         }

◆ opacity

float XCharts.LineStyle.opacity

getset

Opacity of the line. Supports value from 0 to 1, and the line will not be drawn when set to 0. 线的透明度。支持从 0 到 1 的数字，为 0 时不绘制该图形。

Definition at line 126 of file LineStyle.cs.

         {
             get { return m_Opacity; }
             set { if (PropertyUtil.SetStruct(ref m_Opacity, value)) SetVerticesDirty(); }
         }

◆ show

bool XCharts.LineStyle.show

getset

Whether show line. 是否显示线条。当作为子组件，它的父组件有参数控制是否显示时，改参数无效。

Definition at line 63 of file LineStyle.cs.

         {
             get { return m_Show; }
             set { if (PropertyUtil.SetStruct(ref m_Show, value)) SetVerticesDirty(); }
         }

◆ toColor

Color32 XCharts.LineStyle.toColor

getset

the middle color of line, default use serie color. 线的渐变颜色（需要水平方向渐变时）。

Definition at line 90 of file LineStyle.cs.

         {
             get { return m_ToColor; }
             set { if (PropertyUtil.SetColor(ref m_ToColor, value)) SetVerticesDirty(); }
         }

◆ toColor2

Color32 XCharts.LineStyle.toColor2

getset

the end color of line, default use serie color. 线的渐变颜色2（需要水平方向三个渐变色的渐变时）。

Definition at line 99 of file LineStyle.cs.

         {
             get { return m_ToColor2; }
             set { if (PropertyUtil.SetColor(ref m_ToColor2, value)) SetVerticesDirty(); }
         }

◆ type

Type XCharts.LineStyle.type

getset

the type of line. 线的类型。

Definition at line 72 of file LineStyle.cs.

         {
             get { return m_Type; }
             set { if (PropertyUtil.SetStruct(ref m_Type, value)) SetVerticesDirty(); }
         }

◆ width

float XCharts.LineStyle.width

getset

the width of line. 线宽。 ///

Definition at line 108 of file LineStyle.cs.

         {
             get { return m_Width; }
             set { if (PropertyUtil.SetStruct(ref m_Width, value)) SetVerticesDirty(); }
         }

The documentation for this class was generated from the following file:

LineStyle.cs
