XCharts.MarkLine Class Reference

Use a line in the chart to illustrate. 图表标线。 More...

Inheritance diagram for XCharts.MarkLine:

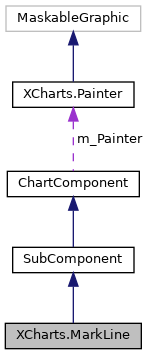

Collaboration diagram for XCharts.MarkLine:

Properties
bool	show [get, set]
	Whether to display the marking line. 是否显示标线。 More...
SerieAnimation	animation [get, set]
	The animation of markline. 标线的动画样式。 More...
List< MarkLineData >	data [get, set]
	A list of marked data. When the group of data item is 0, each data item represents a line; When the group is not 0, two data items of the same group represent the starting point and the ending point of the line respectively to form a line. In this case, the relevant style parameters of the line are the parameters of the starting point. 标线的数据列表。当数据项的group为0时，每个数据项表示一条标线；当group不为0时，相同group的两个数据项分别表 示标线的起始点和终止点来组成一条标线，此时标线的相关样式参数取起始点的参数。 More...
static MarkLine	defaultMarkLine [get]
Properties inherited from XCharts.ChartComponent
virtual bool	vertsDirty [get]
	图表重绘标记。 More...
virtual bool	componentDirty [get]
	组件重新初始化标记。 More...
bool	anyDirty [get]
	需要重绘图表或重新初始化组件。 More...
Painter	painter [get, set]
Action	refreshComponent [get, set]
GameObject	gameObject [get, set]

Additional Inherited Members
Public Member Functions inherited from XCharts.ChartComponent
virtual void	SetVerticesDirty ()
virtual void	ClearVerticesDirty ()
virtual void	SetComponentDirty ()
virtual void	ClearComponentDirty ()
virtual void	ClearDirty ()
virtual void	SetAllDirty ()
Protected Attributes inherited from XCharts.ChartComponent
bool	m_VertsDirty
bool	m_ComponentDirty
Painter	m_Painter

Detailed Description

Use a line in the chart to illustrate. 图表标线。

Definition at line 197 of file MarkLine.cs.

Property Documentation

animation

SerieAnimation XCharts.MarkLine.animation

getset

The animation of markline. 标线的动画样式。

Definition at line 217 of file MarkLine.cs.

        {
            get { return m_Animation; }
            set { if (PropertyUtil.SetClass(ref m_Animation, value)) SetVerticesDirty(); }
        }

data

List<MarkLineData> XCharts.MarkLine.data

getset

A list of marked data. When the group of data item is 0, each data item represents a line; When the group is not 0, two data items of the same group represent the starting point and the ending point of the line respectively to form a line. In this case, the relevant style parameters of the line are the parameters of the starting point. 标线的数据列表。当数据项的group为0时，每个数据项表示一条标线；当group不为0时，相同group的两个数据项分别表 示标线的起始点和终止点来组成一条标线，此时标线的相关样式参数取起始点的参数。

Definition at line 230 of file MarkLine.cs.

        {
            get { return m_Data; }
            set { if (PropertyUtil.SetClass(ref m_Data, value)) SetVerticesDirty(); }
        }

show

bool XCharts.MarkLine.show

getset

Whether to display the marking line. 是否显示标线。

Definition at line 208 of file MarkLine.cs.

        {
            get { return m_Show; }
            set { if (PropertyUtil.SetStruct(ref m_Show, value)) SetVerticesDirty(); }
        }

---

The documentation for this class was generated from the following file:

• MarkLine.cs
