The basic class of rectangular coordinate chart，such as LineChart,BarChart and ScatterChart. 直角坐标系类型图表的基类，如折线图LineChart，柱状图BarChart，散点图ScatterChart都属于这类型的图表。不可用直接将CoordinateChart绑定到GameObject上。 More...

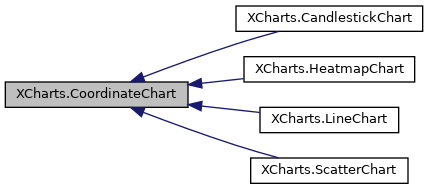

Inheritance diagram for XCharts.CoordinateChart:

[legend]

Public Member Functions
override void	ClearData ()
	Remove all data from series,legend and axis. It just emptying all of serie's data without emptying the list of series. 清空所有图例，系列和坐标轴类目数据。系列中指示清空系列中的数据，会保留系列列表。 More...

override void	RemoveData ()
	Remove all data from series,legend and axis. The series list is also cleared. 清空所有图例，系列和坐标轴类目数据。系列的列表也会被清空。 More...

void	ClearAxisData ()
	Remove all data of Axes. 清除所有x轴和y轴的类目数据。 More...

void	AddXAxisData (string category, int xAxisIndex=0)
	Add a category data to xAxis. 添加一个类目数据到指定的x轴。 More...

void	UpdateXAxisData (int index, string category, int xAxisIndex=0)
	Update category data. 更新X轴类目数据。 More...

void	AddXAxisIcon (Sprite icon, int xAxisIndex=0)
	Add an icon to xAxis. 添加一个图标到指定的x轴。 More...

void	UdpateXAxisIcon (int index, Sprite icon, int xAxisIndex=0)
	Update xAxis icon. 更新X轴图标。 More...

void	AddYAxisData (string category, int yAxisIndex=0)
	Add a category data to yAxis. 添加一个类目数据到指定的y轴。 More...

void	UpdateYAxisData (int index, string category, int yAxisIndex=0)
	Update category data. 更新Y轴类目数据。 More...

void	AddYAxisIcon (Sprite icon, int yAxisIndex=0)
	Add an icon to yAxis. 添加一个图标到指定的y轴。 More...

void	UpdateYAxisIcon (int index, Sprite icon, int yAxisIndex=0)
	更新Y轴图标。 More...

bool	IsValue ()
	reutrn true when all the show axis is `Value` type. 纯数值坐标轴（数值轴或对数轴）。 More...

bool	IsCategory ()
	纯类目轴。 More...

bool	IsInGrid (Grid grid, Vector2 local)
	坐标是否在坐标轴内。 More...

bool	IsInGrid (Grid grid, Vector3 local)

bool	IsInGrid (Grid grid, float x, float y)

bool	IsInAnyGrid (Vector2 local)

Grid	GetGrid (Vector2 local)

void	RefreshDataZoom ()
	在下一帧刷新DataZoom More...

void	RefreshAxisMinMaxValue ()
	立即刷新数值坐标轴的最大最小值 More...

Vector3	ClampInGrid (Grid grid, Vector3 pos)

void	CovertXYAxis (int index)
	转换X轴和Y轴的配置 More...

void	UpdateCoordinate ()
	更新坐标系原点和宽高 More...

void	SetMaxCache (int maxCache)
	设置可缓存的最大数据量。当数据量超过该值时，会自动删除第一个值再加入最新值。 More...

Grid	GetGrid (int index)

XAxis	GetXAxis (int index)

YAxis	GetYAxis (int index)

override void	OnDataZoomRangeChanged (DataZoom dataZoom)

bool	IsAnyYAxisIsCategory ()

void	Internal_RefreshLabelPosition (Serie serie, SerieData serieData, SerieLabel serieLabel, Vector3 pos, bool IsNeedCheckPosition, bool isYAxis)

void	Internal_CheckClipAndDrawPolygon (VertexHelper vh, Vector3 p1, Vector3 p2, Vector3 p3, Vector3 p4, Color32 color, bool clip, Grid grid)

void	Internal_CheckClipAndDrawPolygon (VertexHelper vh, Vector3 p, float radius, Color32 color, bool clip, bool vertical, Grid grid)

void	Internal_CheckClipAndDrawPolygon (VertexHelper vh, Vector3 p1, Vector3 p2, Vector3 p3, Vector3 p4, Color32 startColor, Color32 toColor, bool clip, Grid grid)

void	Internal_CheckClipAndDrawPolygon (VertexHelper vh, ref Vector3 p1, ref Vector3 p2, ref Vector3 p3, ref Vector3 p4, Color32 startColor, Color32 toColor, bool clip, Grid grid)

void	Internal_CheckClipAndDrawTriangle (VertexHelper vh, Vector3 p1, Vector3 p2, Vector3 p3, Color32 color, bool clip, Grid grid)

void	Internal_CheckClipAndDrawTriangle (VertexHelper vh, Vector3 p1, Vector3 p2, Vector3 p3, Color32 color, Color32 color2, Color32 color3, bool clip, Grid grid)

void	Internal_CheckClipAndDrawLine (VertexHelper vh, Vector3 p1, Vector3 p2, float size, Color32 color, bool clip, Grid grid)

void	Internal_CheckClipAndDrawSymbol (VertexHelper vh, SerieSymbolType type, float symbolSize, float tickness, Vector3 pos, Color32 color, Color32 toColor, Color32 backgroundColor, float gap, bool clip, float[] cornerRadius, Grid grid, Vector3 startPos)

void	Internal_CheckClipAndDrawZebraLine (VertexHelper vh, Vector3 p1, Vector3 p2, float size, float zebraWidth, float zebraGap, Color32 color, Color32 toColor, bool clip, Grid grid)

Grid	GetAxisGridOrDefault (Axis axis)

Grid	GetDataZoomGridOrDefault (DataZoom dataZoom)

Grid	GetSerieGridOrDefault (Serie serie)

XAxis	GetSerieXAxisOrDefault (Serie serie)

YAxis	GetSerieYAxisOrDefault (Serie serie)

float	GetXAxisOnZeroOffset (XAxis axis)

float	GetYAxisOnZeroOffset (YAxis axis)

YAxis	GetRelatedYAxis (XAxis axis)

XAxis	GetRelatedXAxis (YAxis axis)

float	Internal_CheckBarAnimation (Serie serie, int dataIndex, float barHig, out bool isBarEnd)

float	Internal_GetBarGap (SerieType type)

double	Internal_GetBarSameStackTotalValue (string stack, int dataIndex, SerieType type)

float	Internal_GetBarTotalWidth (float categoryWidth, float gap, SerieType type)

int	Internal_GetBarIndex (Serie currSerie, SerieType type)

Protected Member Functions
override void	InitComponent ()

override void	Update ()

override void	DrawPainterBase (VertexHelper vh)

override void	DrawBackground (VertexHelper vh)

void	DrawClip (VertexHelper vh)

override void	DrawPainterSerie (VertexHelper vh, Serie serie)

override void	DrawPainterTop (VertexHelper vh)

override void	CheckTootipArea (Vector2 local, bool isActivedOther)

virtual void	UpdateTooltipValue (Vector2 local)

override void	UpdateTooltip ()

void	UpdateAxisTooltipLabel (int axisIndex, Axis axis)

virtual void	InitAxisRuntimeData (Axis axis)

virtual void	CheckMinMaxValue ()

virtual void	GetSeriesMinMaxValue (Axis axis, int axisIndex, out double tempMinValue, out double tempMaxValue)

void	UpdateAxisLabelText (Axis axis)

virtual void	OnCoordinateChanged ()

override void	OnSizeChanged ()

void	DrawXTooltipIndicator (VertexHelper vh)

void	DrawYTooltipIndicator (VertexHelper vh)

virtual void	DrawLabelBackground (VertexHelper vh)

override void	OnRefreshLabel ()

Color32	GetXLerpColor (Color32 areaColor, Color32 areaToColor, Vector3 pos, Grid grid)

Color32	GetYLerpColor (Color32 areaColor, Color32 areaToColor, Vector3 pos, Grid grid)

void	UpdateSerieGridIndex ()

void	DrawYBarSerie (VertexHelper vh, Serie serie, int colorIndex)

void	DrawXBarSerie (VertexHelper vh, Serie serie, int colorIndex)

void	DrawCandlestickSerie (VertexHelper vh, int colorIndex, Serie serie)

void	DrawHeatmapSerie (VertexHelper vh, int colorIndex, Serie serie)

void	DrawLinePoint (VertexHelper vh, Serie serie)

void	DrawLineArrow (VertexHelper vh, Serie serie)

void	DrawXLineSerie (VertexHelper vh, Serie serie, int colorIndex)

void	DrawYLineSerie (VertexHelper vh, Serie serie, int colorIndex)

void	DrawScatterSerie (VertexHelper vh, int colorIndex, Serie serie)

Protected Attributes
StringBuilder	sb = new StringBuilder(100)

Action< PointerEventData, int >	m_OnPointerClickBar

Properties
Grid?	grid `[get]`
	grid component. 网格组件。 More...

List< Grid >	grids `[get]`

List< XAxis >	xAxes `[get]`
	the x Axes，xAxes[0] is the first x axis, xAxes[1] is the second x axis. 两个x轴。 More...

List< YAxis >	yAxes `[get]`
	the y Axes, yAxes[0] is the first y axis, yAxes[1] is the second y axis. 两个y轴。 More...

XAxis?	xAxis0 `[get]`
	X轴（下） More...

XAxis?	xAxis1 `[get]`
	X轴（上） More...

YAxis?	yAxis0 `[get]`
	Y轴（左） More...

YAxis?	yAxis1 `[get]`
	Y轴（右） More...

Detailed Description

The basic class of rectangular coordinate chart，such as LineChart,BarChart and ScatterChart. 直角坐标系类型图表的基类，如折线图LineChart，柱状图BarChart，散点图ScatterChart都属于这类型的图表。不可用直接将CoordinateChart绑定到GameObject上。

Definition at line 18 of file CoordinateChart_API.cs.

Member Function Documentation

◆ AddXAxisData()

void XCharts.CoordinateChart.AddXAxisData	(	string	category,
		int	xAxisIndex = `0`
	)

inline

Add a category data to xAxis. 添加一个类目数据到指定的x轴。

Parameters

category	the category data
xAxisIndex	which xAxis should category add to

Definition at line 101 of file CoordinateChart_API.cs.

         {
             var xAxis = GetXAxis(xAxisIndex);
             if (xAxis != null)
             {
                 xAxis.AddData(category);
             }
         }

◆ AddXAxisIcon()

void XCharts.CoordinateChart.AddXAxisIcon	(	Sprite	icon,
		int	xAxisIndex = `0`
	)

inline

Add an icon to xAxis. 添加一个图标到指定的x轴。

Parameters

icon
xAxisIndex

Definition at line 132 of file CoordinateChart_API.cs.

         {
             var xAxis = GetXAxis(xAxisIndex);
             if (xAxis != null)
             {
                 xAxis.AddIcon(icon);
             }
         }

◆ AddYAxisData()

void XCharts.CoordinateChart.AddYAxisData	(	string	category,
		int	yAxisIndex = `0`
	)

inline

Add a category data to yAxis. 添加一个类目数据到指定的y轴。

Parameters

category	the category data
yAxisIndex	which yAxis should category add to

Definition at line 163 of file CoordinateChart_API.cs.

         {
             var yAxis = GetYAxis(yAxisIndex);
             if (yAxis != null)
             {
                 yAxis.AddData(category);
             }
         }

◆ AddYAxisIcon()

void XCharts.CoordinateChart.AddYAxisIcon	(	Sprite	icon,
		int	yAxisIndex = `0`
	)

inline

Add an icon to yAxis. 添加一个图标到指定的y轴。

Parameters

icon
yAxisIndex

Definition at line 194 of file CoordinateChart_API.cs.

         {
             var yAxis = GetYAxis(yAxisIndex);
             if (yAxis != null)
             {
                 yAxis.AddIcon(icon);
             }
         }

◆ ClearAxisData()

void XCharts.CoordinateChart.ClearAxisData ( )

inline

Remove all data of Axes. 清除所有x轴和y轴的类目数据。

Definition at line 81 of file CoordinateChart_API.cs.

         {
             foreach (var axis in m_XAxes)
             {
                 axis.data.Clear();
                 axis.SetAllDirty();
             }
             foreach (var axis in m_YAxes)
             {
                 axis.data.Clear();
                 axis.SetAllDirty();
             }
         }

◆ ClearData()

override void XCharts.CoordinateChart.ClearData ( )

inline

Remove all data from series,legend and axis. It just emptying all of serie's data without emptying the list of series. 清空所有图例，系列和坐标轴类目数据。系列中指示清空系列中的数据，会保留系列列表。

Definition at line 60 of file CoordinateChart_API.cs.

         {
             base.ClearData();
             ClearAxisData();
         }

◆ CovertXYAxis()

void XCharts.CoordinateChart.CovertXYAxis ( int index )

inline

转换X轴和Y轴的配置

Parameters

index 坐标轴索引，0或1

Definition at line 334 of file CoordinateChart_API.cs.

         {
             if (index >= 0 && index <= 1)
             {
                 var xAxis = m_XAxes[index];
                 var yAxis = m_YAxes[index];
                 var tempX = m_XAxes[index].Clone();
                 xAxis.Copy(m_YAxes[index]);
                 yAxis.Copy(tempX);
                 xAxis.runtimeZeroXOffset = 0;
                 xAxis.runtimeZeroYOffset = 0;
                 yAxis.runtimeZeroXOffset = 0;
                 yAxis.runtimeZeroYOffset = 0;
                 xAxis.runtimeMinValue = 0;
                 xAxis.runtimeMaxValue = 0;
                 yAxis.runtimeMinValue = 0;
                 yAxis.runtimeMaxValue = 0;
                 RefreshChart();
             }
         }

◆ IsCategory()

bool XCharts.CoordinateChart.IsCategory ( )

inline

纯类目轴。

Definition at line 238 of file CoordinateChart_API.cs.

         {
             foreach (var axis in m_XAxes)
             {
                 if (axis.show && !axis.IsCategory()) return false;
             }
             foreach (var axis in m_YAxes)
             {
                 if (axis.show && !axis.IsCategory()) return false;
             }
             return true;
         }

◆ IsInGrid()

bool XCharts.CoordinateChart.IsInGrid	(	Grid	grid,
		Vector2	local
	)

inline

坐标是否在坐标轴内。

Definition at line 254 of file CoordinateChart_API.cs.

         {
             return IsInGrid(grid, local.x, local.y);
         }

◆ IsValue()

bool XCharts.CoordinateChart.IsValue ( )

inline

reutrn true when all the show axis is Value type. 纯数值坐标轴（数值轴或对数轴）。

Definition at line 222 of file CoordinateChart_API.cs.

         {
             foreach (var axis in m_XAxes)
             {
                 if (axis.show && !axis.IsValue() && !axis.IsLog()) return false;
             }
             foreach (var axis in m_YAxes)
             {
                 if (axis.show && !axis.IsValue() && !axis.IsLog()) return false;
             }
             return true;
         }

◆ RefreshAxisMinMaxValue()

void XCharts.CoordinateChart.RefreshAxisMinMaxValue ( )

inline

立即刷新数值坐标轴的最大最小值

Definition at line 311 of file CoordinateChart_API.cs.

         {
             CheckMinMaxValue();
         }

◆ RefreshDataZoom()

void XCharts.CoordinateChart.RefreshDataZoom ( )

inline

在下一帧刷新DataZoom

Definition at line 297 of file CoordinateChart_API.cs.

         {
             foreach (var handler in m_ComponentHandlers)
             {
                 if (handler is DataZoomHandler)
                 {
                     (handler as DataZoomHandler).RefreshDataZoomLabel();
                 }
             }
         }

◆ RemoveData()

override void XCharts.CoordinateChart.RemoveData ( )

inline

Remove all data from series,legend and axis. The series list is also cleared. 清空所有图例，系列和坐标轴类目数据。系列的列表也会被清空。

Definition at line 71 of file CoordinateChart_API.cs.

         {
             base.RemoveData();
             ClearAxisData();
         }

◆ SetMaxCache()

void XCharts.CoordinateChart.SetMaxCache ( int maxCache )

inline

设置可缓存的最大数据量。当数据量超过该值时，会自动删除第一个值再加入最新值。

Definition at line 373 of file CoordinateChart_API.cs.

         {
             foreach (var serie in m_Series.list) serie.maxCache = maxCache;
             foreach (var axis in m_XAxes) axis.maxCache = maxCache;
             foreach (var axis in m_YAxes) axis.maxCache = maxCache;
         }

◆ UdpateXAxisIcon()

void XCharts.CoordinateChart.UdpateXAxisIcon	(	int	index,
		Sprite	icon,
		int	xAxisIndex = `0`
	)

inline

Update xAxis icon. 更新X轴图标。

Parameters

index
icon
xAxisIndex

Definition at line 148 of file CoordinateChart_API.cs.

         {
             var xAxis = GetXAxis(xAxisIndex);
             if (xAxis != null)
             {
                 xAxis.UpdateIcon(index, icon);
             }
         }

◆ UpdateCoordinate()

void XCharts.CoordinateChart.UpdateCoordinate ( )

inline

更新坐标系原点和宽高

Definition at line 358 of file CoordinateChart_API.cs.

         {
             foreach (var grid in m_Grids)
             {
                 grid.UpdateRuntimeData(m_ChartX, m_ChartY, m_ChartWidth, m_ChartHeight);
             }
             foreach (var dataZoom in m_DataZooms)
             {
                 dataZoom.UpdateRuntimeData(m_ChartX, m_ChartY, m_ChartWidth, m_ChartHeight);
             }
         }

◆ UpdateXAxisData()

void XCharts.CoordinateChart.UpdateXAxisData	(	int	index,
		string	category,
		int	xAxisIndex = `0`
	)

inline

Update category data. 更新X轴类目数据。

Parameters

index	the index of category data
category
xAxisIndex	which xAxis index to update to

Definition at line 117 of file CoordinateChart_API.cs.

         {
             var xAxis = GetXAxis(xAxisIndex);
             if (xAxis != null)
             {
                 xAxis.UpdateData(index, category);
             }
         }

◆ UpdateYAxisData()

void XCharts.CoordinateChart.UpdateYAxisData	(	int	index,
		string	category,
		int	yAxisIndex = `0`
	)

inline

Update category data. 更新Y轴类目数据。

Parameters

index	the index of category data
category
yAxisIndex	which yAxis index to update to

Definition at line 179 of file CoordinateChart_API.cs.

         {
             var yAxis = GetYAxis(yAxisIndex);
             if (yAxis != null)
             {
                 yAxis.UpdateData(index, category);
             }
         }

◆ UpdateYAxisIcon()

void XCharts.CoordinateChart.UpdateYAxisIcon	(	int	index,
		Sprite	icon,
		int	yAxisIndex = `0`
	)

inline

更新Y轴图标。

Parameters

index
icon
yAxisIndex

Definition at line 209 of file CoordinateChart_API.cs.

         {
             var yAxis = GetYAxis(yAxisIndex);
             if (yAxis != null)
             {
                 yAxis.UpdateIcon(index, icon);
             }
         }

Property Documentation

◆ grid

Grid? XCharts.CoordinateChart.grid

get

grid component. 网格组件。

Definition at line 24 of file CoordinateChart_API.cs.

24 { get { return m_Grids.Count > 0 ? m_Grids[0] : null; } }

◆ xAxes

List<XAxis> XCharts.CoordinateChart.xAxes

get

the x Axes，xAxes[0] is the first x axis, xAxes[1] is the second x axis. 两个x轴。

Definition at line 30 of file CoordinateChart_API.cs.

30 { get { return m_XAxes; } }

◆ xAxis0

XAxis? XCharts.CoordinateChart.xAxis0

get

X轴（下）

Definition at line 40 of file CoordinateChart_API.cs.

40 { get { return m_XAxes.Count > 0 ? m_XAxes[0] : null; } }

◆ xAxis1

XAxis? XCharts.CoordinateChart.xAxis1

get

X轴（上）

Definition at line 44 of file CoordinateChart_API.cs.

44 { get { return m_XAxes.Count > 1 ? m_XAxes[1] : null; } }

◆ yAxes

List<YAxis> XCharts.CoordinateChart.yAxes

get

the y Axes, yAxes[0] is the first y axis, yAxes[1] is the second y axis. 两个y轴。

Definition at line 35 of file CoordinateChart_API.cs.

35 { get { return m_YAxes; } }

◆ yAxis0

YAxis? XCharts.CoordinateChart.yAxis0

get

Y轴（左）

Definition at line 48 of file CoordinateChart_API.cs.

48 { get { return m_YAxes.Count > 0 ? m_YAxes[0] : null; } }

◆ yAxis1

YAxis? XCharts.CoordinateChart.yAxis1

get

Y轴（右）

Definition at line 52 of file CoordinateChart_API.cs.

52 { get { return m_YAxes.Count > 1 ? m_YAxes[1] : null; } }

The documentation for this class was generated from the following files:

Public Member Functions

Protected Member Functions

Protected Attributes

Properties

Detailed Description

Member Function Documentation

◆ AddXAxisData()

◆ AddXAxisIcon()

◆ AddYAxisData()

◆ AddYAxisIcon()

◆ ClearAxisData()

◆ ClearData()

◆ CovertXYAxis()

◆ IsCategory()

◆ IsInGrid()

◆ IsValue()

◆ RefreshAxisMinMaxValue()

◆ RefreshDataZoom()

◆ RemoveData()

◆ SetMaxCache()

◆ UdpateXAxisIcon()

◆ UpdateCoordinate()

◆ UpdateXAxisData()

◆ UpdateYAxisData()

◆ UpdateYAxisIcon()

Property Documentation

◆ grid

◆ xAxes

◆ xAxis0

◆ xAxis1

◆ yAxes

◆ yAxis0

◆ yAxis1
