The axis in rectangular coordinate. 直角坐标系的坐标轴组件。 More...

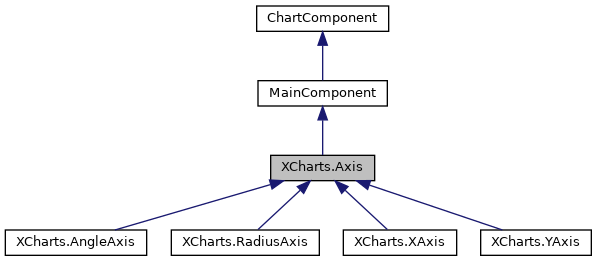

Inheritance diagram for XCharts.Axis:

[legend]

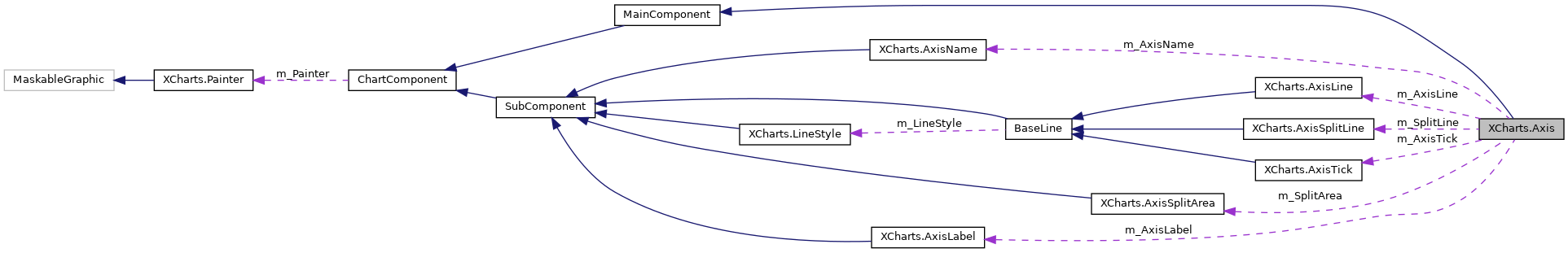

Collaboration diagram for XCharts.Axis:

[legend]

Public Types
enum	AxisType { AxisType.Value, AxisType.Category, AxisType.Log, AxisType.Time }
	the type of axis. 坐标轴类型。 More...

enum	AxisMinMaxType { AxisMinMaxType.Default, AxisMinMaxType.MinMax, AxisMinMaxType.Custom }
	the type of axis min and max value. 坐标轴最大最小刻度显示类型。 More...

enum	AxisPosition { Left, Right, Bottom, Top }
	the position of axis in grid. 坐标轴在Grid中的位置 More...

Public Member Functions
override void	ClearComponentDirty ()

override void	ClearVerticesDirty ()

Axis	Clone ()

override void	SetComponentDirty ()

void	Copy (Axis axis)

void	ClearData ()
	清空类目数据 More...

bool	IsCategory ()
	是否为类目轴。 More...

bool	IsValue ()
	是否为数值轴。 More...

bool	IsLog ()
	是否为对数轴。 More...

bool	IsTime ()
	是否为时间轴。 More...

void	SetNeedUpdateFilterData ()

void	AddData (string category)
	添加一个类目到类目数据列表 More...

void	UpdateData (int index, string category)
	更新类目数据 More...

void	AddIcon (Sprite icon)
	添加图标 More...

void	UpdateIcon (int index, Sprite icon)
	更新图标 More...

string	GetData (int index)
	获得指定索引的类目数据 More...

string	GetData (int index, DataZoom dataZoom)
	获得在dataZoom范围内指定索引的类目数据 More...

Sprite	GetIcon (int index)

double	GetCurrMinValue (float duration)

double	GetCurrMaxValue (float duration)

bool	IsValueChanging (float duration)

float	GetLogValue (double value)

bool	IsLeft ()

bool	IsRight ()

bool	IsTop ()

bool	IsBottom ()

Public Member Functions inherited from XCharts.ChartComponent
virtual void	SetVerticesDirty ()

virtual void	ClearDirty ()

virtual void	SetAllDirty ()

Protected Attributes
bool	m_Show = true

AxisType	m_Type

AxisMinMaxType	m_MinMaxType

int	m_GridIndex

int	m_PolarIndex

AxisPosition	m_Position

float	m_Offset

float	m_Min

float	m_Max

int	m_SplitNumber = 5

float	m_Interval = 0

bool	m_BoundaryGap = true

int	m_MaxCache = 0

float	m_LogBase = 10

bool	m_LogBaseE = false

int	m_CeilRate = 0

bool	m_Inverse = false

List< Sprite >	m_Icons = new List<Sprite>()

List< string >	m_Data = new List<string>()

AxisLine	m_AxisLine = AxisLine.defaultAxisLine

AxisName	m_AxisName = AxisName.defaultAxisName

AxisTick	m_AxisTick = AxisTick.defaultTick

AxisLabel	m_AxisLabel = AxisLabel.defaultAxisLabel

AxisSplitLine	m_SplitLine = AxisSplitLine.defaultSplitLine

AxisSplitArea	m_SplitArea = AxisSplitArea.defaultSplitArea

List< string >	m_RuntimeData = new List<string>()

Protected Attributes inherited from XCharts.ChartComponent
bool	m_VertsDirty

bool	m_ComponentDirty

Painter	m_Painter

Properties
bool	show `[get, set]`
	Whether to show axis. 是否显示坐标轴。 More...

AxisType	type `[get, set]`
	the type of axis. 坐标轴类型。 More...

AxisMinMaxType	minMaxType `[get, set]`
	the type of axis minmax. 坐标轴刻度最大最小值显示类型。 More...

int	gridIndex `[get, set]`
	The index of the grid on which the axis are located, by default, is in the first grid. 坐标轴所在的 grid 的索引，默认位于第一个 grid。 More...

int	polarIndex `[get, set]`
	The index of the polar on which the axis are located, by default, is in the first polar. 坐标轴所在的 ploar 的索引，默认位于第一个 polar。 More...

AxisPosition	position `[get, set]`
	the position of axis in grid. 坐标轴在Grid中的位置。 More...

float	offset `[get, set]`
	the offset of axis from the default position. Useful when the same position has multiple axes. 坐标轴相对默认位置的偏移。在相同position有多个坐标轴时有用。 More...

float	min `[get, set]`
	The minimun value of axis.Valid when `minMaxType` is `Custom` 设定的坐标轴刻度最小值，当minMaxType为Custom时有效。 More...

float	max `[get, set]`
	The maximum value of axis.Valid when `minMaxType` is `Custom` 设定的坐标轴刻度最大值，当minMaxType为Custom时有效。 More...

int	splitNumber `[get, set]`
	Number of segments that the axis is split into. 坐标轴的分割段数。 More...

float	interval `[get, set]`
	Compulsively set segmentation interval for axis.This is unavailable for category axis. 强制设置坐标轴分割间隔。无法在类目轴中使用。 More...

bool?	boundaryGap `[get, set]`
	The boundary gap on both sides of a coordinate axis, which is valid only for category axis with type: 'Category'. 坐标轴两边是否留白。只对类目轴有效。 More...

float	logBase `[get, set]`
	Base of logarithm, which is valid only for numeric axes with type: 'Log'. 对数轴的底数，只在对数轴（type:'Log'）中有效。 More...

bool	logBaseE `[get, set]`
	On the log axis, if base e is the natural number, and is true, logBase fails. 对数轴是否以自然数 e 为底数，为 true 时 logBase 失效。 More...

int?	maxCache `[get, set]`
	The max number of axis data cache. The first data will be remove when the size of axis data is larger then maxCache. 可缓存的最大数据量。默认为0没有限制，大于0时超过指定值会移除旧数据再插入新数据。 More...

int?	ceilRate `[get, set]`
	The ratio of maximum and minimum values rounded upward. The default is 0, which is automatically calculated. 最大最小值向上取整的倍率。默认为0时自动计算。 More...

bool	inverse `[get, set]`
	Whether the axis are reversed or not. Invalid in `Category` axis. 是否反向坐标轴。在类目轴中无效。 More...

bool	clockwise `[get, set]`
	Whether the positive position of axis is in clockwise. True for clockwise by default. 刻度增长是否按顺时针，默认顺时针。 More...

List< string >	data `[get, set]`
	Category data, available in type: 'Category' axis. 类目数据，在类目轴（type: 'category'）中有效。 More...

List< Sprite >	icons `[get, set]`
	类目数据对应的图标。 More...

AxisLine	axisLine `[get, set]`
	axis Line. 坐标轴轴线。 /// More...

AxisName	axisName `[get, set]`
	axis name. 坐标轴名称。 More...

AxisTick	axisTick `[get, set]`
	axis tick. 坐标轴刻度。 More...

AxisLabel	axisLabel `[get, set]`
	axis label. 坐标轴刻度标签。 More...

AxisSplitLine	splitLine `[get, set]`
	axis split line. 坐标轴分割线。 More...

AxisSplitArea	splitArea `[get, set]`
	axis split area. 坐标轴分割区域。 More...

bool	insertDataToHead `[get, set]`
	Whether to add new data at the head or at the end of the list. 添加新数据时是在列表的头部还是尾部加入。 More...

IconStyle	iconStyle `[get, set]`
	图标样式。 More...

override bool	vertsDirty `[get]`

override bool	componentDirty `[get]`

int	index `[get, set]`

List< ChartLabel >	runtimeAxisLabelList `[get, set]`

double	runtimeMinValue `[get, set]`
	the current minimun value. 当前最小值。 More...

double	runtimeMaxValue `[get, set]`
	the current maximum value. 当前最大值。 More...

float	runtimeZeroXOffset `[get, set]`
	the x offset of zero position. 坐标轴原点在X轴的偏移。 More...

float	runtimeZeroYOffset `[get, set]`
	the y offset of zero position. 坐标轴原点在Y轴的偏移。 More...

int?	runtimeMinLogIndex `[get]`

int?	runtimeMaxLogIndex `[get]`

bool	runtimeLastCheckInverse `[get, set]`

double	runtimeMinMaxRange `[get, set]`

List< string >	runtimeData `[get]`

float	runtimeScaleWidth `[get, set]`

Properties inherited from XCharts.ChartComponent
virtual bool	vertsDirty `[get]`
	图表重绘标记。 More...

virtual bool	componentDirty `[get]`
	组件重新初始化标记。 More...

bool	anyDirty `[get]`
	需要重绘图表或重新初始化组件。 More...

Painter	painter `[get, set]`

Action	refreshComponent `[get, set]`

GameObject	gameObject `[get, set]`

Detailed Description

The axis in rectangular coordinate. 直角坐标系的坐标轴组件。

Definition at line 20 of file Axis.cs.

Member Enumeration Documentation

◆ AxisMinMaxType

enum XCharts.Axis.AxisMinMaxType

strong

the type of axis min and max value. 坐标轴最大最小刻度显示类型。

Enumerator
Default	0 - maximum. 0-最大值。
MinMax	minimum - maximum. 最小值-最大值。
Custom	Customize the minimum and maximum. 自定义最小值最大值。

Definition at line 54 of file Axis.cs.

         {
             Default,
             MinMax,
             Custom
         }

◆ AxisPosition

enum XCharts.Axis.AxisPosition

strong

the position of axis in grid. 坐标轴在Grid中的位置

Definition at line 76 of file Axis.cs.

         {
             Left,
             Right,
             Bottom,
             Top
         }

◆ AxisType

enum XCharts.Axis.AxisType

strong

the type of axis. 坐标轴类型。

Enumerator
Value	Numerical axis, suitable for continuous data. 数值轴。适用于连续数据。
Category	Category axis, suitable for discrete category data. Data should only be set via data for this type. 类目轴。适用于离散的类目数据，为该类型时必须通过 data 设置类目数据。
Log	Log axis, suitable for log data. 对数轴。适用于对数数据。
Time	Time axis, suitable for continuous time series data. 时间轴。适用于连续的时序数据。

Definition at line 26 of file Axis.cs.

         {
             Value,
             Category,
             Log,
             Time
         }

Member Function Documentation

◆ AddData()

void XCharts.Axis.AddData ( string category )

inline

添加一个类目到类目数据列表

Parameters

◆ AddIcon()

void XCharts.Axis.AddIcon ( Sprite icon )

inline

添加图标

Parameters

icon

Definition at line 613 of file Axis.cs.

         {
             if (maxCache > 0)
             {
                 while (m_Icons.Count > maxCache)
                 {
                     m_Icons.RemoveAt(m_InsertDataToHead ? m_Icons.Count - 1 : 0);
                 }
             }
             if (m_InsertDataToHead) m_Icons.Insert(0, icon);
             else m_Icons.Add(icon);
             SetAllDirty();
         }

◆ ClearData()

void XCharts.Axis.ClearData ( )

inline

清空类目数据

Definition at line 528 of file Axis.cs.

         {
             m_Data.Clear();
             m_Icons.Clear();
             m_RuntimeData.Clear();
             SetAllDirty();
         }

◆ GetData() [1/2]

string XCharts.Axis.GetData ( int index )

inline

获得指定索引的类目数据

Parameters

index

Returns

Definition at line 646 of file Axis.cs.

         {
             if (index >= 0 && index < m_Data.Count)
                 return m_Data[index];
             else
                 return null;
         }

◆ GetData() [2/2]

string XCharts.Axis.GetData	(	int	index,
		DataZoom	dataZoom
	)

inline

获得在dataZoom范围内指定索引的类目数据

Parameters

index	类目数据索引
dataZoom	区域缩放

Returns

Definition at line 660 of file Axis.cs.

         {
             var showData = GetDataList(dataZoom);
             if (index >= 0 && index < showData.Count)
                 return showData[index];
             else
                 return "";
         }

◆ IsCategory()

bool XCharts.Axis.IsCategory ( )

inline

是否为类目轴。

Returns

Definition at line 540 of file Axis.cs.

         {
             return type == AxisType.Category;
         }

◆ IsLog()

bool XCharts.Axis.IsLog ( )

inline

是否为对数轴。

Returns

Definition at line 558 of file Axis.cs.

         {
             return type == AxisType.Log;
         }

◆ IsTime()

bool XCharts.Axis.IsTime ( )

inline

是否为时间轴。

Definition at line 566 of file Axis.cs.

         {
             return type == AxisType.Time;
         }

◆ IsValue()

bool XCharts.Axis.IsValue ( )

inline

是否为数值轴。

Returns

Definition at line 549 of file Axis.cs.

         {
             return type == AxisType.Value;
         }

◆ UpdateData()

void XCharts.Axis.UpdateData	(	int	index,
		string	category
	)

inline

更新类目数据

Parameters

index
category

Definition at line 600 of file Axis.cs.

         {
             if (index >= 0 && index < m_Data.Count)
             {
                 m_Data[index] = category;
                 SetComponentDirty();
             }
         }

◆ UpdateIcon()

void XCharts.Axis.UpdateIcon	(	int	index,
		Sprite	icon
	)

inline

更新图标

Parameters

index
icon

Definition at line 632 of file Axis.cs.

         {
             if (index >= 0 && index < m_Icons.Count)
             {
                 m_Icons[index] = icon;
                 SetComponentDirty();
             }
         }

Property Documentation

◆ axisLabel

AxisLabel XCharts.Axis.axisLabel

getset

axis label. 坐标轴刻度标签。

Definition at line 332 of file Axis.cs.

         {
             get { return m_AxisLabel; }
             set { if (value != null) { m_AxisLabel = value; SetComponentDirty(); } }
         }

◆ axisLine

AxisLine XCharts.Axis.axisLine

getset

axis Line. 坐标轴轴线。 ///

Definition at line 305 of file Axis.cs.

         {
             get { return m_AxisLine; }
             set { if (value != null) { m_AxisLine = value; SetVerticesDirty(); } }
         }

◆ axisName

AxisName XCharts.Axis.axisName

getset

axis name. 坐标轴名称。

Definition at line 314 of file Axis.cs.

         {
             get { return m_AxisName; }
             set { if (value != null) { m_AxisName = value; SetComponentDirty(); } }
         }

◆ axisTick

AxisTick XCharts.Axis.axisTick

getset

axis tick. 坐标轴刻度。

Definition at line 323 of file Axis.cs.

         {
             get { return m_AxisTick; }
             set { if (value != null) { m_AxisTick = value; SetVerticesDirty(); } }
         }

◆ boundaryGap

bool? XCharts.Axis.boundaryGap

getset

The boundary gap on both sides of a coordinate axis, which is valid only for category axis with type: 'Category'. 坐标轴两边是否留白。只对类目轴有效。

Definition at line 220 of file Axis.cs.

         {
             get { return IsCategory() ? m_BoundaryGap : false; }
             set { if (PropertyUtil.SetStruct(ref m_BoundaryGap, value)) SetAllDirty(); }
         }

◆ ceilRate

int? XCharts.Axis.ceilRate

getset

The ratio of maximum and minimum values rounded upward. The default is 0, which is automatically calculated. 最大最小值向上取整的倍率。默认为0时自动计算。

Definition at line 261 of file Axis.cs.

         {
             get { return m_CeilRate; }
             set { if (PropertyUtil.SetStruct(ref m_CeilRate, value < 0 ? 0 : value)) SetAllDirty(); }
         }

◆ clockwise

bool XCharts.Axis.clockwise

getset

Whether the positive position of axis is in clockwise. True for clockwise by default. 刻度增长是否按顺时针，默认顺时针。

Definition at line 279 of file Axis.cs.

         {
             get { return m_Clockwise; }
             set { if (PropertyUtil.SetStruct(ref m_Clockwise, value)) SetAllDirty(); }
         }

◆ data

List<string> XCharts.Axis.data

getset

Category data, available in type: 'Category' axis. 类目数据，在类目轴（type: 'category'）中有效。

Definition at line 288 of file Axis.cs.

         {
             get { return m_Data; }
             set { if (value != null) { m_Data = value; SetAllDirty(); } }
         }

◆ gridIndex

int XCharts.Axis.gridIndex

getset

The index of the grid on which the axis are located, by default, is in the first grid. 坐标轴所在的 grid 的索引，默认位于第一个 grid。

Definition at line 148 of file Axis.cs.

         {
             get { return m_GridIndex; }
             set { if (PropertyUtil.SetStruct(ref m_GridIndex, value)) SetAllDirty(); }
         }

◆ icons

List<Sprite> XCharts.Axis.icons

getset

类目数据对应的图标。

Definition at line 296 of file Axis.cs.

         {
             get { return m_Icons; }
             set { if (value != null) { m_Icons = value; SetAllDirty(); } }
         }

◆ iconStyle

IconStyle XCharts.Axis.iconStyle

getset

图标样式。

Definition at line 367 of file Axis.cs.

         {
             get { return m_IconStyle; }
             set { if (PropertyUtil.SetClass(ref m_IconStyle, value)) SetAllDirty(); }
         }

◆ insertDataToHead

bool XCharts.Axis.insertDataToHead

getset

Whether to add new data at the head or at the end of the list. 添加新数据时是在列表的头部还是尾部加入。

Definition at line 359 of file Axis.cs.

         {
             get { return m_InsertDataToHead; }
             set { if (PropertyUtil.SetStruct(ref m_InsertDataToHead, value)) SetAllDirty(); }
         }

◆ interval

float XCharts.Axis.interval

getset

Compulsively set segmentation interval for axis.This is unavailable for category axis. 强制设置坐标轴分割间隔。无法在类目轴中使用。

Definition at line 211 of file Axis.cs.

         {
             get { return m_Interval; }
             set { if (PropertyUtil.SetStruct(ref m_Interval, value)) SetAllDirty(); }
         }

◆ inverse

bool XCharts.Axis.inverse

getset

Whether the axis are reversed or not. Invalid in Category axis. 是否反向坐标轴。在类目轴中无效。

Definition at line 270 of file Axis.cs.

         {
             get { return m_Inverse; }
             set { if (m_Type == AxisType.Value && PropertyUtil.SetStruct(ref m_Inverse, value)) SetAllDirty(); }
         }

◆ logBase

float XCharts.Axis.logBase

getset

Base of logarithm, which is valid only for numeric axes with type: 'Log'. 对数轴的底数，只在对数轴（type:'Log'）中有效。

Definition at line 229 of file Axis.cs.

         {
             get { return m_LogBase; }
             set
             {
                 if (value <= 0 || value == 1) value = 10;
                 if (PropertyUtil.SetStruct(ref m_LogBase, value)) SetAllDirty();
             }
         }

◆ logBaseE

bool XCharts.Axis.logBaseE

getset

On the log axis, if base e is the natural number, and is true, logBase fails. 对数轴是否以自然数 e 为底数，为 true 时 logBase 失效。

Definition at line 242 of file Axis.cs.

         {
             get { return m_LogBaseE; }
             set { if (PropertyUtil.SetStruct(ref m_LogBaseE, value)) SetAllDirty(); }
         }

◆ max

float XCharts.Axis.max

getset

The maximum value of axis.Valid when minMaxType is Custom 设定的坐标轴刻度最大值，当minMaxType为Custom时有效。

Definition at line 193 of file Axis.cs.

         {
             get { return m_Max; }
             set { if (PropertyUtil.SetStruct(ref m_Max, value)) SetAllDirty(); }
         }

◆ maxCache

int? XCharts.Axis.maxCache

getset

The max number of axis data cache. The first data will be remove when the size of axis data is larger then maxCache. 可缓存的最大数据量。默认为0没有限制，大于0时超过指定值会移除旧数据再插入新数据。

Definition at line 252 of file Axis.cs.

         {
             get { return m_MaxCache; }
             set { if (PropertyUtil.SetStruct(ref m_MaxCache, value < 0 ? 0 : value)) SetAllDirty(); }
         }

◆ min

float XCharts.Axis.min

getset

The minimun value of axis.Valid when minMaxType is Custom 设定的坐标轴刻度最小值，当minMaxType为Custom时有效。

Definition at line 184 of file Axis.cs.

         {
             get { return m_Min; }
             set { if (PropertyUtil.SetStruct(ref m_Min, value)) SetAllDirty(); }
         }

◆ minMaxType

AxisMinMaxType XCharts.Axis.minMaxType

getset

the type of axis minmax. 坐标轴刻度最大最小值显示类型。

Definition at line 139 of file Axis.cs.

         {
             get { return m_MinMaxType; }
             set { if (PropertyUtil.SetStruct(ref m_MinMaxType, value)) SetAllDirty(); }
         }

◆ offset

float XCharts.Axis.offset

getset

the offset of axis from the default position. Useful when the same position has multiple axes. 坐标轴相对默认位置的偏移。在相同position有多个坐标轴时有用。

Definition at line 175 of file Axis.cs.

         {
             get { return m_Offset; }
             set { if (PropertyUtil.SetStruct(ref m_Offset, value)) SetAllDirty(); }
         }

◆ polarIndex

int XCharts.Axis.polarIndex

getset

The index of the polar on which the axis are located, by default, is in the first polar. 坐标轴所在的 ploar 的索引，默认位于第一个 polar。

Definition at line 157 of file Axis.cs.

         {
             get { return m_PolarIndex; }
             set { if (PropertyUtil.SetStruct(ref m_PolarIndex, value)) SetAllDirty(); }
         }

◆ position

AxisPosition XCharts.Axis.position

getset

the position of axis in grid. 坐标轴在Grid中的位置。

Definition at line 166 of file Axis.cs.

         {
             get { return m_Position; }
             set { if (PropertyUtil.SetStruct(ref m_Position, value)) SetAllDirty(); }
         }

◆ runtimeMaxValue

double XCharts.Axis.runtimeMaxValue

getset

the current maximum value. 当前最大值。

Definition at line 416 of file Axis.cs.

         {
             get { return m_RuntimeMaxValue; }
             internal set
             {
                 m_RuntimeMaxValue = value;
                 m_RuntimeLastMaxValue = value;
                 m_RuntimeMaxValueUpdateTime = Time.time;
                 m_RuntimeMaxValueChanged = false;
             }
         }

◆ runtimeMinValue

double XCharts.Axis.runtimeMinValue

getset

the current minimun value. 当前最小值。

Definition at line 401 of file Axis.cs.

         {
             get { return m_RuntimeMinValue; }
             internal set
             {
                 m_RuntimeMinValue = value;
                 m_RuntimeLastMinValue = value;
                 m_RuntimeMinValueUpdateTime = Time.time;
                 m_RuntimeMinValueChanged = true;
             }
         }

◆ runtimeZeroXOffset

float XCharts.Axis.runtimeZeroXOffset

getset

the x offset of zero position. 坐标轴原点在X轴的偏移。

Definition at line 430 of file Axis.cs.

430 { get; internal set; }

◆ runtimeZeroYOffset

float XCharts.Axis.runtimeZeroYOffset

getset

the y offset of zero position. 坐标轴原点在Y轴的偏移。

Definition at line 435 of file Axis.cs.

435 { get; internal set; }

◆ show

bool XCharts.Axis.show

getset

Whether to show axis. 是否显示坐标轴。

Definition at line 121 of file Axis.cs.

         {
             get { return m_Show; }
             set { if (PropertyUtil.SetStruct(ref m_Show, value)) SetAllDirty(); }
         }

◆ splitArea

AxisSplitArea XCharts.Axis.splitArea

getset

axis split area. 坐标轴分割区域。

Definition at line 350 of file Axis.cs.

         {
             get { return m_SplitArea; }
             set { if (value != null) { m_SplitArea = value; SetVerticesDirty(); } }
         }

◆ splitLine

AxisSplitLine XCharts.Axis.splitLine

getset

axis split line. 坐标轴分割线。

Definition at line 341 of file Axis.cs.

         {
             get { return m_SplitLine; }
             set { if (value != null) { m_SplitLine = value; SetVerticesDirty(); } }
         }

◆ splitNumber

int XCharts.Axis.splitNumber

getset

Number of segments that the axis is split into. 坐标轴的分割段数。

Definition at line 202 of file Axis.cs.

         {
             get { return m_SplitNumber; }
             set { if (PropertyUtil.SetStruct(ref m_SplitNumber, value)) SetAllDirty(); }
         }

◆ type

AxisType XCharts.Axis.type

getset

the type of axis. 坐标轴类型。

Definition at line 130 of file Axis.cs.

         {
             get { return m_Type; }
             set { if (PropertyUtil.SetStruct(ref m_Type, value)) SetAllDirty(); }
         }

The documentation for this class was generated from the following file:

Axis.cs

Public Types

Public Member Functions

Protected Attributes

Properties

Detailed Description

Member Enumeration Documentation

◆ AxisMinMaxType

◆ AxisPosition

◆ AxisType

Member Function Documentation

◆ AddData()

◆ AddIcon()

◆ ClearData()

◆ GetData() [1/2]

◆ GetData() [2/2]

◆ IsCategory()

◆ IsLog()

◆ IsTime()

◆ IsValue()

◆ UpdateData()

◆ UpdateIcon()

Property Documentation

◆ axisLabel

◆ axisLine

◆ axisName

◆ axisTick

◆ boundaryGap

◆ ceilRate

◆ clockwise

◆ data

◆ gridIndex

◆ icons

◆ iconStyle

◆ insertDataToHead

◆ interval

◆ inverse

◆ logBase

◆ logBaseE

◆ max

◆ maxCache

◆ min

◆ minMaxType

◆ offset

◆ polarIndex

◆ position

◆ runtimeMaxValue

◆ runtimeMinValue

◆ runtimeZeroXOffset

◆ runtimeZeroYOffset

◆ show

◆ splitArea

◆ splitLine

◆ splitNumber

◆ type
