XCharts.AxisTick Class Reference

Settings related to axis tick. 坐标轴刻度相关设置。 More...

Inheritance diagram for XCharts.AxisTick:

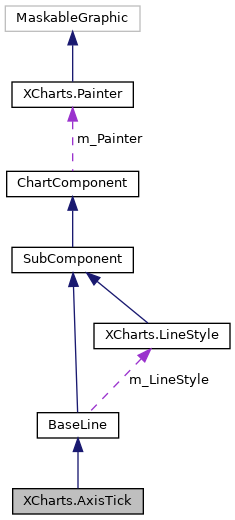

Collaboration diagram for XCharts.AxisTick:

Public Member Functions
AxisTick	Clone ()
void	Copy (AxisTick axisTick)
Public Member Functions inherited from XCharts.BaseLine
	BaseLine (bool show)
void	Copy (BaseLine axisLine)
LineStyle.Type	GetType (LineStyle.Type themeType)
float	GetWidth (float themeWidth)
float	GetLength (float themeLength)
Color32	GetColor (Color32 themeColor)
Public Member Functions inherited from XCharts.ChartComponent
virtual void	SetVerticesDirty ()
virtual void	ClearVerticesDirty ()
virtual void	SetComponentDirty ()
virtual void	ClearComponentDirty ()
virtual void	ClearDirty ()
virtual void	SetAllDirty ()

Properties
bool	alignWithLabel [get, set]
	Align axis tick with label, which is available only when boundaryGap is set to be true in category axis. 类目轴中在 boundaryGap 为 true 的时候有效，可以保证刻度线和标签对齐。 More...
bool	inside [get, set]
	Set this to true so the axis labels face the inside direction. 坐标轴刻度是否朝内，默认朝外。 More...
bool	showStartTick [get, set]
	Whether to display the first tick. 是否显示第一个刻度。 More...
bool	showEndTick [get, set]
	Whether to display the last tick. 是否显示最后一个刻度。 More...
static AxisTick	defaultTick [get]
Properties inherited from XCharts.BaseLine
bool	show [get, set]
	Set this to false to prevent the axis line from showing. 是否显示坐标轴轴线。 More...
LineStyle	lineStyle [get, set]
	线条样式 More...
static BaseLine	defaultBaseLine [get]
Properties inherited from XCharts.ChartComponent
virtual bool	vertsDirty [get]
	图表重绘标记。 More...
virtual bool	componentDirty [get]
	组件重新初始化标记。 More...
bool	anyDirty [get]
	需要重绘图表或重新初始化组件。 More...
Painter	painter [get, set]
Action	refreshComponent [get, set]
GameObject	gameObject [get, set]

Additional Inherited Members
Protected Attributes inherited from XCharts.BaseLine
bool	m_Show
LineStyle	m_LineStyle = new LineStyle()
Protected Attributes inherited from XCharts.ChartComponent
bool	m_VertsDirty
bool	m_ComponentDirty
Painter	m_Painter

Detailed Description

Settings related to axis tick. 坐标轴刻度相关设置。

Definition at line 18 of file AxisTick.cs.

Property Documentation

alignWithLabel

bool XCharts.AxisTick.alignWithLabel

getset

Align axis tick with label, which is available only when boundaryGap is set to be true in category axis. 类目轴中在 boundaryGap 为 true 的时候有效，可以保证刻度线和标签对齐。

Definition at line 30 of file AxisTick.cs.

        {
            get { return m_AlignWithLabel; }
            set { if (PropertyUtil.SetStruct(ref m_AlignWithLabel, value)) SetVerticesDirty(); }
        }

inside

bool XCharts.AxisTick.inside

getset

Set this to true so the axis labels face the inside direction. 坐标轴刻度是否朝内，默认朝外。

Definition at line 39 of file AxisTick.cs.

        {
            get { return m_Inside; }
            set { if (PropertyUtil.SetStruct(ref m_Inside, value)) SetVerticesDirty(); }
        }

showEndTick

bool XCharts.AxisTick.showEndTick

getset

Whether to display the last tick. 是否显示最后一个刻度。

Definition at line 57 of file AxisTick.cs.

        {
            get { return m_ShowEndTick; }
            set { if (PropertyUtil.SetStruct(ref m_ShowEndTick, value)) SetVerticesDirty(); }
        }

showStartTick

bool XCharts.AxisTick.showStartTick

getset

Whether to display the first tick. 是否显示第一个刻度。

Definition at line 48 of file AxisTick.cs.

        {
            get { return m_ShowStartTick; }
            set { if (PropertyUtil.SetStruct(ref m_ShowStartTick, value)) SetVerticesDirty(); }
        }

---

The documentation for this class was generated from the following file:

• AxisTick.cs
