XCharts.TextLimit Class Reference

Text character limitation and adaptation component. When the length of the text exceeds the set length, it is cropped and suffixes are appended to the end.Only valid in the category axis. 文本字符限制和自适应。当文本长度超过设定的长度时进行裁剪，并将后缀附加在最后。 只在类目轴中有效。 More...

Inheritance diagram for XCharts.TextLimit:

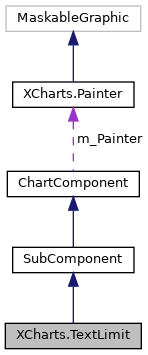

Collaboration diagram for XCharts.TextLimit:

Public Member Functions
TextLimit	Clone ()
void	Copy (TextLimit textLimit)
void	SetRelatedText (ChartText txt, float labelWidth)
string	GetLimitContent (string content)
Public Member Functions inherited from XCharts.ChartComponent
virtual void	SetVerticesDirty ()
virtual void	ClearVerticesDirty ()
virtual void	SetComponentDirty ()
virtual void	ClearComponentDirty ()
virtual void	ClearDirty ()
virtual void	SetAllDirty ()

Properties
bool	enable [get, set]
	Whether to enable text limit. 是否启用文本自适应。 [default:true] More...
float	maxWidth [get, set]
	Set the maximum width. A default of 0 indicates automatic fetch; otherwise, custom. Clipping occurs when the width of the text is greater than this value. 设定最大宽度。默认为0表示自动获取，否则表示自定义。当文本的宽度大于该值进行裁剪。 More...
float	gap [get, set]
	White pixel distance at both ends. 两边留白像素距离。 [default:10f] More...
string	suffix [get, set]
	Suffixes when the length exceeds. 长度超出时的后缀。 [default: "..."] More...
Properties inherited from XCharts.ChartComponent
virtual bool	vertsDirty [get]
	图表重绘标记。 More...
virtual bool	componentDirty [get]
	组件重新初始化标记。 More...
bool	anyDirty [get]
	需要重绘图表或重新初始化组件。 More...
Painter	painter [get, set]
Action	refreshComponent [get, set]
GameObject	gameObject [get, set]

Additional Inherited Members
Protected Attributes inherited from XCharts.ChartComponent
bool	m_VertsDirty
bool	m_ComponentDirty
Painter	m_Painter

Detailed Description

Text character limitation and adaptation component. When the length of the text exceeds the set length, it is cropped and suffixes are appended to the end.Only valid in the category axis. 文本字符限制和自适应。当文本长度超过设定的长度时进行裁剪，并将后缀附加在最后。 只在类目轴中有效。

Definition at line 21 of file TextLimit.cs.

Property Documentation

enable

bool XCharts.TextLimit.enable

getset

Whether to enable text limit. 是否启用文本自适应。 [default:true]

Definition at line 34 of file TextLimit.cs.

        {
            get { return m_Enable; }
            set { if (PropertyUtil.SetStruct(ref m_Enable, value)) SetComponentDirty(); }
        }

gap

float XCharts.TextLimit.gap

getset

White pixel distance at both ends. 两边留白像素距离。 [default:10f]

Definition at line 54 of file TextLimit.cs.

        {
            get { return m_Gap; }
            set { if (PropertyUtil.SetStruct(ref m_Gap, value)) SetComponentDirty(); }
        }

maxWidth

float XCharts.TextLimit.maxWidth

getset

Set the maximum width. A default of 0 indicates automatic fetch; otherwise, custom. Clipping occurs when the width of the text is greater than this value. 设定最大宽度。默认为0表示自动获取，否则表示自定义。当文本的宽度大于该值进行裁剪。

Definition at line 44 of file TextLimit.cs.

        {
            get { return m_MaxWidth; }
            set { if (PropertyUtil.SetStruct(ref m_MaxWidth, value)) SetComponentDirty(); }
        }

suffix

string XCharts.TextLimit.suffix

getset

Suffixes when the length exceeds. 长度超出时的后缀。 [default: "..."]

Definition at line 64 of file TextLimit.cs.

        {
            get { return m_Suffix; }
            set { if (PropertyUtil.SetClass(ref m_Suffix, value)) SetComponentDirty(); }
        }

---

The documentation for this class was generated from the following file:

• TextLimit.cs
