XCharts.Background Class Reference

Background component. Due to the limitations of the framework, there are two limitations to the use of background component: 1: The parent node of chart cannot have a layout control class component. 2: The parent node of Chart can only have one child node of the current chart. More...

Inheritance diagram for XCharts.Background:

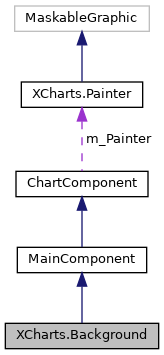

Collaboration diagram for XCharts.Background:

Properties
bool	show [get, set]
	Whether to enable the background component. However, the ability to activate the background component is subject to other conditions. 是否启用背景组件。但能否激活背景组件还要受其他条件限制。 More...
Sprite	image [get, set]
	the image of background. 背景图。 More...
Image.Type	imageType [get, set]
	the fill type of background image. 背景图填充类型。 More...
Color	imageColor [get, set]
	背景图颜色。 More...
bool	hideThemeBackgroundColor [get, set]
	Whether to hide the background color set in the theme when the background component is on. 当background组件开启时，是否隐藏主题中设置的背景色。 More...
static Background	defaultBackground [get]
Properties inherited from XCharts.ChartComponent
virtual bool	vertsDirty [get]
	图表重绘标记。 More...
virtual bool	componentDirty [get]
	组件重新初始化标记。 More...
bool	anyDirty [get]
	需要重绘图表或重新初始化组件。 More...
Painter	painter [get, set]
Action	refreshComponent [get, set]
GameObject	gameObject [get, set]

Additional Inherited Members
Public Member Functions inherited from XCharts.ChartComponent
virtual void	SetVerticesDirty ()
virtual void	ClearVerticesDirty ()
virtual void	SetComponentDirty ()
virtual void	ClearComponentDirty ()
virtual void	ClearDirty ()
virtual void	SetAllDirty ()
Protected Attributes inherited from XCharts.ChartComponent
bool	m_VertsDirty
bool	m_ComponentDirty
Painter	m_Painter

Detailed Description

Background component. Due to the limitations of the framework, there are two limitations to the use of background component: 1: The parent node of chart cannot have a layout control class component. 2: The parent node of Chart can only have one child node of the current chart.

背景组件。 由于框架的局限性，背景组件使用有以下两个限制： 1：chart的父节点不能有布局控制类组件。 2：chart的父节点只能有当前chart一个子节点。 背景组件的开启需要通过接口来开启：BaseChart.EnableBackground(bool flag)

Definition at line 28 of file Background.cs.

Property Documentation

hideThemeBackgroundColor

bool XCharts.Background.hideThemeBackgroundColor

getset

Whether to hide the background color set in the theme when the background component is on. 当background组件开启时，是否隐藏主题中设置的背景色。

Definition at line 80 of file Background.cs.

        {
            get { return m_HideThemeBackgroundColor; }
            set { if (PropertyUtil.SetStruct(ref m_HideThemeBackgroundColor, value)) SetVerticesDirty(); }
        }


Sprite XCharts.Background.image

getset

the image of background. 背景图。

Definition at line 51 of file Background.cs.

        {
            get { return m_Image; }
            set { if (PropertyUtil.SetClass(ref m_Image, value)) SetComponentDirty(); }
        }

imageColor

Color XCharts.Background.imageColor

getset

背景图颜色。

Definition at line 70 of file Background.cs.

        {
            get { return m_ImageColor; }
            set { if (PropertyUtil.SetColor(ref m_ImageColor, value)) SetComponentDirty(); }
        }

imageType

Image.Type XCharts.Background.imageType

getset

the fill type of background image. 背景图填充类型。

Definition at line 61 of file Background.cs.

        {
            get { return m_ImageType; }
            set { if (PropertyUtil.SetStruct(ref m_ImageType, value)) SetComponentDirty(); }
        }

show

bool XCharts.Background.show

getset

Whether to enable the background component. However, the ability to activate the background component is subject to other conditions. 是否启用背景组件。但能否激活背景组件还要受其他条件限制。

Definition at line 42 of file Background.cs.

        {
            get { return m_Show; }
            internal set { if (PropertyUtil.SetStruct(ref m_Show, value)) SetComponentDirty(); }
        }

---

The documentation for this class was generated from the following file:

• Background.cs
