XCharts.Location Class Reference

Location type. Quick to set the general location. 位置类型。通过Align快速设置大体位置，再通过left，right，top，bottom微调具体位置。 More...

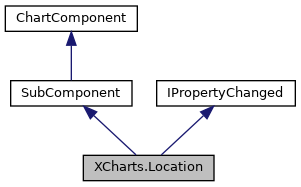

Inheritance diagram for XCharts.Location:

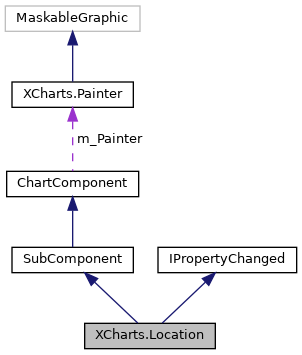

Collaboration diagram for XCharts.Location:

Public Types
enum	Align {   TopLeft, TopRight, TopCenter, BottomLeft,   BottomRight, BottomCenter, Center, CenterLeft,   CenterRight }
	对齐方式 More...

Public Member Functions
Vector3	GetPosition (float chartWidth, float chartHeight)
	返回在坐标系中的具体位置 More...
void	OnChanged ()
	属性变更时更新textAnchor,minAnchor,maxAnchor,pivot More...
Public Member Functions inherited from XCharts.ChartComponent
virtual void	SetVerticesDirty ()
virtual void	ClearVerticesDirty ()
virtual void	SetComponentDirty ()
virtual void	ClearComponentDirty ()
virtual void	ClearDirty ()
virtual void	SetAllDirty ()

Properties
Align	align [get, set]
	对齐方式。 More...
float	left [get, set]
	Distance between component and the left side of the container. 离容器左侧的距离。 More...
float	right [get, set]
	Distance between component and the left side of the container. 离容器右侧的距离。 More...
float	top [get, set]
	Distance between component and the left side of the container. 离容器上侧的距离。 More...
float	bottom [get, set]
	Distance between component and the left side of the container. 离容器下侧的距离。 More...
TextAnchor	runtimeTextAlignment [get]
	the anchor of text. Location对应的Anchor锚点 More...
Vector2	runtimeAnchorMin [get]
	the minimum achor. Location对应的anchorMin。 More...
Vector2	runtimeAnchorMax [get]
	the maximun achor. Location对应的anchorMax. More...
Vector2	runtimePivot [get]
	the povot. Loation对应的中心点。 More...
static Location	defaultLeft [get]
static Location	defaultRight [get]
static Location	defaultTop [get]
static Location	defaultBottom [get]
Properties inherited from XCharts.ChartComponent
virtual bool	vertsDirty [get]
	图表重绘标记。 More...
virtual bool	componentDirty [get]
	组件重新初始化标记。 More...
bool	anyDirty [get]
	需要重绘图表或重新初始化组件。 More...
Painter	painter [get, set]
Action	refreshComponent [get, set]
GameObject	gameObject [get, set]

Additional Inherited Members
Protected Attributes inherited from XCharts.ChartComponent
bool	m_VertsDirty
bool	m_ComponentDirty
Painter	m_Painter

Detailed Description

Location type. Quick to set the general location. 位置类型。通过Align快速设置大体位置，再通过left，right，top，bottom微调具体位置。

Definition at line 21 of file Location.cs.

Member Enumeration Documentation

Align

enum XCharts.Location.Align

strong

对齐方式

Definition at line 26 of file Location.cs.

        {
            TopLeft,
            TopRight,
            TopCenter,
            BottomLeft,
            BottomRight,
            BottomCenter,
            Center,
            CenterLeft,
            CenterRight
        }

Member Function Documentation

GetPosition()

Vector3 XCharts.Location.GetPosition ( float  chartWidth, float  chartHeight  )

inline

返回在坐标系中的具体位置

Parameters

chartWidth
chartHeight

Returns

Definition at line 283 of file Location.cs.

        {
            switch (align)
            {
                case Align.BottomCenter:
                    return new Vector3(chartWidth / 2, bottom);
                case Align.BottomLeft:
                    return new Vector3(left, bottom);
                case Align.BottomRight:
                    return new Vector3(chartWidth - right, bottom);
                case Align.Center:
                    return new Vector3(chartWidth / 2, chartHeight / 2);
                case Align.CenterLeft:
                    return new Vector3(left, chartHeight / 2);
                case Align.CenterRight:
                    return new Vector3(chartWidth - right, chartHeight / 2);
                case Align.TopCenter:
                    return new Vector3(chartWidth / 2, chartHeight - top);
                case Align.TopLeft:
                    return new Vector3(left, chartHeight - top);
                case Align.TopRight:
                    return new Vector3(chartWidth - right, chartHeight - top);
                default:
                    return Vector2.zero;
            }
        }

OnChanged()

void XCharts.Location.OnChanged ( )

inline

属性变更时更新textAnchor,minAnchor,maxAnchor,pivot

Implements XCharts.IPropertyChanged.

Definition at line 313 of file Location.cs.

        {
            UpdateAlign();
        }

Property Documentation

align

Align XCharts.Location.align

getset

对齐方式。

Definition at line 57 of file Location.cs.

        {
            get { return m_Align; }
            set { if (PropertyUtil.SetStruct(ref m_Align, value)) { SetComponentDirty(); UpdateAlign(); } }
        }

bottom

float XCharts.Location.bottom

getset

Distance between component and the left side of the container. 离容器下侧的距离。

Definition at line 93 of file Location.cs.

        {
            get { return m_Bottom; }
            set { if (PropertyUtil.SetStruct(ref m_Bottom, value)) { SetComponentDirty(); UpdateAlign(); } }
        }

left

float XCharts.Location.left

getset

Distance between component and the left side of the container. 离容器左侧的距离。

Definition at line 66 of file Location.cs.

        {
            get { return m_Left; }
            set { if (PropertyUtil.SetStruct(ref m_Left, value)) { SetComponentDirty(); UpdateAlign(); } }
        }

right

float XCharts.Location.right

getset

Distance between component and the left side of the container. 离容器右侧的距离。

Definition at line 75 of file Location.cs.

        {
            get { return m_Right; }
            set { if (PropertyUtil.SetStruct(ref m_Right, value)) { SetComponentDirty(); UpdateAlign(); } }
        }

runtimeAnchorMax

Vector2 XCharts.Location.runtimeAnchorMax

get

the maximun achor. Location对应的anchorMax.

Definition at line 119 of file Location.cs.

{ get { return m_AnchorMax; } }

runtimeAnchorMin

Vector2 XCharts.Location.runtimeAnchorMin

get

the minimum achor. Location对应的anchorMin。

Definition at line 113 of file Location.cs.

{ get { return m_AnchorMin; } }

runtimePivot

Vector2 XCharts.Location.runtimePivot

get

the povot. Loation对应的中心点。

Definition at line 125 of file Location.cs.

{ get { return m_Pivot; } }

runtimeTextAlignment

TextAnchor XCharts.Location.runtimeTextAlignment

get

the anchor of text. Location对应的Anchor锚点

Definition at line 103 of file Location.cs.

{ get { return m_TextAlignment; } }

top

float XCharts.Location.top

getset

Distance between component and the left side of the container. 离容器上侧的距离。

Definition at line 84 of file Location.cs.

        {
            get { return m_Top; }
            set { if (PropertyUtil.SetStruct(ref m_Top, value)) { SetComponentDirty(); UpdateAlign(); } }
        }

---

The documentation for this class was generated from the following file:

• Location.cs
