The base class of all graphs or components. 所有图形的基类。 More...

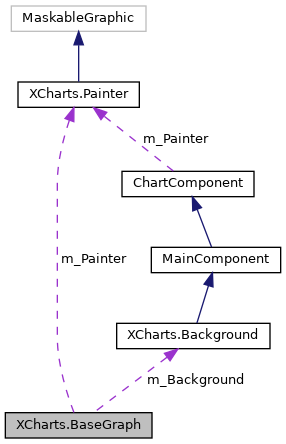

Collaboration diagram for XCharts.BaseGraph:

[legend]

Public Member Functions
virtual void	SetSize (float width, float height)
	设置图形的宽高（在非stretch pivot下才有效，其他情况需要自己调整RectTransform） More...

void	SetPainterDirty ()
	重新初始化Painter More...

void	RefreshGraph ()
	Redraw graph in next frame. 在下一帧刷新图形。 More...

void	RefreshAllComponent ()

string	CheckWarning ()
	检测警告信息。 More...

void	RemoveChartObject ()
	移除所有图表子节点，会自动重现初始化。 More...

bool	ScreenPointToChartPoint (Vector2 screenPoint, out Vector2 chartPoint)

virtual void	OnPointerClick (PointerEventData eventData)

virtual void	OnPointerDown (PointerEventData eventData)

virtual void	OnPointerUp (PointerEventData eventData)

virtual void	OnPointerEnter (PointerEventData eventData)

virtual void	OnPointerExit (PointerEventData eventData)

virtual void	OnBeginDrag (PointerEventData eventData)

virtual void	OnEndDrag (PointerEventData eventData)

virtual void	OnDrag (PointerEventData eventData)

virtual void	OnScroll (PointerEventData eventData)

Protected Member Functions
virtual void	InitComponent ()

override void	Awake ()

override void	Start ()

virtual void	Update ()

virtual void	SetAllComponentDirty ()

virtual void	CheckComponent ()

void	CheckComponentDirty (ChartComponent component)

override void	OnDestroy ()

override void	OnPopulateMesh (VertexHelper vh)

virtual void	InitPainter ()

void	UpdateSize ()

virtual void	CheckIsInScrollRect ()

virtual bool	IsNeedCheckPointerPos ()

virtual void	CheckRefreshChart ()

virtual void	CheckRefreshPainter ()

virtual void	OnSizeChanged ()

virtual void	OnLocalPositionChanged ()

virtual void	OnDrawPainterBase (VertexHelper vh, Painter painter)

virtual void	DrawPainterBase (VertexHelper vh)

virtual void	DrawBackground (VertexHelper vh)

Protected Attributes
bool	m_MultiComponentMode = false

bool	m_DebugMode = false

bool	m_EnableTextMeshPro = false

Background	m_Background = Background.defaultBackground

Painter	m_Painter

int	m_SiblingIndex

float	m_GraphWidth

float	m_GraphHeight

float	m_GraphX

float	m_GraphY

Vector3	m_GraphPosition = Vector3.zero

Vector2	m_GraphMinAnchor

Vector2	m_GraphMaxAnchor

Vector2	m_GraphPivot

Vector2	m_GraphSizeDelta

Vector2	m_GraphAnchoredPosition

Rect	m_GraphRect = new Rect(0, 0, 0, 0)

bool	m_RefreshChart = false

bool	m_ForceOpenRaycastTarget

bool	m_IsControlledByLayout = false

bool	m_PainerDirty = false

bool	m_IsOnValidate = false

Vector3	m_LastLocalPosition

Action< PointerEventData, BaseGraph >	m_OnPointerClick

Action< PointerEventData, BaseGraph >	m_OnPointerDown

Action< PointerEventData, BaseGraph >	m_OnPointerUp

Action< PointerEventData, BaseGraph >	m_OnPointerEnter

Action< PointerEventData, BaseGraph >	m_OnPointerExit

Action< PointerEventData, BaseGraph >	m_OnBeginDrag

Action< PointerEventData, BaseGraph >	m_OnDrag

Action< PointerEventData, BaseGraph >	m_OnEndDrag

Action< PointerEventData, BaseGraph >	m_OnScroll

Static Protected Attributes
static readonly string	s_BackgroundObjectName = "background"

Properties
Background	background `[get]`
	The background component. 背景组件。 More...

float	graphX `[get]`
	The x of graph. 图形的X More...

float	graphY `[get]`
	The y of graph. 图形的Y More...

float	graphWidth `[get]`
	The width of graph. 图形的宽 More...

float	graphHeight `[get]`
	The height of graph. 图形的高 More...

Vector3	graphPosition `[get]`
	The position of graph. 图形的左下角起始坐标。 More...

Rect	graphRect `[get]`

Vector2	pointerPos `[get, protected set]`
	The postion of pointer. 鼠标位置。 More...

bool	isPointerInChart `[get, protected set]`
	Whether the mouse pointer is in the chart. 鼠标是否在图表内。 More...

string	warningInfo `[get, protected set]`
	警告信息。 More...

bool	isControlledByLayout `[get]`

bool	forceOpenRaycastTarget `[get, set]`
	强制开启鼠标事件检测。 More...

Action< PointerEventData, BaseGraph >	onPointerClick `[set]`
	鼠标点击回调。 More...

Action< PointerEventData, BaseGraph >	onPointerDown `[set]`
	鼠标按下回调。 More...

Action< PointerEventData, BaseGraph >	onPointerUp `[set]`
	鼠标弹起回调。 More...

Action< PointerEventData, BaseGraph >	onPointerEnter `[set]`
	鼠标进入回调。 More...

Action< PointerEventData, BaseGraph >	onPointerExit `[set]`
	鼠标退出回调。 More...

Action< PointerEventData, BaseGraph >	onBeginDrag `[set]`
	鼠标开始拖拽回调。 More...

Action< PointerEventData, BaseGraph >	onDrag `[set]`
	鼠标拖拽回调。 More...

Action< PointerEventData, BaseGraph >	onEndDrag `[set]`
	鼠标结束拖拽回调。 More...

Action< PointerEventData, BaseGraph >	onScroll `[set]`
	鼠标滚动回调。 More...

Vector2	graphAnchorMax `[get]`

Vector2	graphAnchorMin `[get]`

Vector2	graphPivot `[get]`

HideFlags?	chartHideFlags `[get]`

Detailed Description

The base class of all graphs or components. 所有图形的基类。

Definition at line 18 of file BaseGraph_API.cs.

Member Function Documentation

◆ CheckWarning()

string XCharts.BaseGraph.CheckWarning ( )

inline

检测警告信息。

Returns

Definition at line 152 of file BaseGraph_API.cs.

         {
             warningInfo = CheckHelper.CheckChart(this);
             return warningInfo;
         }

◆ RefreshGraph()

void XCharts.BaseGraph.RefreshGraph ( )

inline

Redraw graph in next frame. 在下一帧刷新图形。

Definition at line 137 of file BaseGraph_API.cs.

         {
             m_RefreshChart = true;
         }

◆ RemoveChartObject()

void XCharts.BaseGraph.RemoveChartObject ( )

inline

移除所有图表子节点，会自动重现初始化。

Definition at line 161 of file BaseGraph_API.cs.

         {
             ChartHelper.DestroyAllChildren(transform);
             //SetAllComponentDirty();
         }

◆ SetPainterDirty()

void XCharts.BaseGraph.SetPainterDirty ( )

inline

重新初始化Painter

Definition at line 128 of file BaseGraph_API.cs.

         {
             m_PainerDirty = true;
         }

◆ SetSize()

virtual void XCharts.BaseGraph.SetSize	(	float	width,
		float	height
	)

inlinevirtual

设置图形的宽高（在非stretch pivot下才有效，其他情况需要自己调整RectTransform）

Parameters

width
height

Definition at line 113 of file BaseGraph_API.cs.

         {
             if (LayerHelper.IsFixedWidthHeight(rectTransform))
             {
                 rectTransform.sizeDelta = new Vector2(width, height);
             }
             else
             {
                 Debug.LogError("Can't set size on stretch pivot,you need to modify rectTransform by yourself.");
             }
         }

Property Documentation

◆ background

Background XCharts.BaseGraph.background

get

The background component. 背景组件。

Definition at line 25 of file BaseGraph_API.cs.

25 { get { return m_Background; } }

◆ forceOpenRaycastTarget

bool XCharts.BaseGraph.forceOpenRaycastTarget

getset

强制开启鼠标事件检测。

Definition at line 70 of file BaseGraph_API.cs.

70 { get { return m_ForceOpenRaycastTarget; } set { m_ForceOpenRaycastTarget = value; } }

◆ graphHeight

float XCharts.BaseGraph.graphHeight

get

The height of graph. 图形的高

Definition at line 45 of file BaseGraph_API.cs.

45 { get { return m_GraphHeight; } }

◆ graphPosition

Vector3 XCharts.BaseGraph.graphPosition

get

The position of graph. 图形的左下角起始坐标。

Definition at line 50 of file BaseGraph_API.cs.

50 { get { return m_GraphPosition; } }

◆ graphWidth

float XCharts.BaseGraph.graphWidth

get

The width of graph. 图形的宽

Definition at line 40 of file BaseGraph_API.cs.

40 { get { return m_GraphWidth; } }

◆ graphX

float XCharts.BaseGraph.graphX

get

The x of graph. 图形的X

Definition at line 30 of file BaseGraph_API.cs.

30 { get { return m_GraphX; } }

◆ graphY

float XCharts.BaseGraph.graphY

get

The y of graph. 图形的Y

Definition at line 35 of file BaseGraph_API.cs.

35 { get { return m_GraphY; } }

◆ isPointerInChart

bool XCharts.BaseGraph.isPointerInChart

getprotected set

Whether the mouse pointer is in the chart. 鼠标是否在图表内。

Definition at line 61 of file BaseGraph_API.cs.

61 { get; protected set; }

◆ onBeginDrag

Action<PointerEventData, BaseGraph> XCharts.BaseGraph.onBeginDrag

set

鼠标开始拖拽回调。

Definition at line 94 of file BaseGraph_API.cs.

94 { set { m_OnBeginDrag = value; m_ForceOpenRaycastTarget = true; } }

◆ onDrag

Action<PointerEventData, BaseGraph> XCharts.BaseGraph.onDrag

set

鼠标拖拽回调。

Definition at line 98 of file BaseGraph_API.cs.

98 { set { m_OnDrag = value; m_ForceOpenRaycastTarget = true; } }

◆ onEndDrag

Action<PointerEventData, BaseGraph> XCharts.BaseGraph.onEndDrag

set

鼠标结束拖拽回调。

Definition at line 102 of file BaseGraph_API.cs.

102 { set { m_OnEndDrag = value; m_ForceOpenRaycastTarget = true; } }

◆ onPointerClick

Action<PointerEventData, BaseGraph> XCharts.BaseGraph.onPointerClick

set

鼠标点击回调。

Definition at line 74 of file BaseGraph_API.cs.

74 { set { m_OnPointerClick = value; m_ForceOpenRaycastTarget = true; } }

◆ onPointerDown

Action<PointerEventData, BaseGraph> XCharts.BaseGraph.onPointerDown

set

鼠标按下回调。

Definition at line 78 of file BaseGraph_API.cs.

78 { set { m_OnPointerDown = value; m_ForceOpenRaycastTarget = true; } }

◆ onPointerEnter

Action<PointerEventData, BaseGraph> XCharts.BaseGraph.onPointerEnter

set

鼠标进入回调。

Definition at line 86 of file BaseGraph_API.cs.

86 { set { m_OnPointerEnter = value; m_ForceOpenRaycastTarget = true; } }

◆ onPointerExit

Action<PointerEventData, BaseGraph> XCharts.BaseGraph.onPointerExit

set

鼠标退出回调。

Definition at line 90 of file BaseGraph_API.cs.

90 { set { m_OnPointerExit = value; m_ForceOpenRaycastTarget = true; } }

◆ onPointerUp

Action<PointerEventData, BaseGraph> XCharts.BaseGraph.onPointerUp

set

鼠标弹起回调。

Definition at line 82 of file BaseGraph_API.cs.

82 { set { m_OnPointerUp = value; m_ForceOpenRaycastTarget = true; } }

◆ onScroll

Action<PointerEventData, BaseGraph> XCharts.BaseGraph.onScroll

set

鼠标滚动回调。

Definition at line 106 of file BaseGraph_API.cs.

106 { set { m_OnScroll = value; m_ForceOpenRaycastTarget = true; } }

◆ pointerPos

Vector2 XCharts.BaseGraph.pointerPos

getprotected set

The postion of pointer. 鼠标位置。

Definition at line 56 of file BaseGraph_API.cs.

56 { get; protected set; }

◆ warningInfo

string XCharts.BaseGraph.warningInfo

getprotected set

警告信息。

Definition at line 65 of file BaseGraph_API.cs.

65 { get; protected set; }

The documentation for this class was generated from the following files:
