XCharts.BaseAxisTheme Class Reference

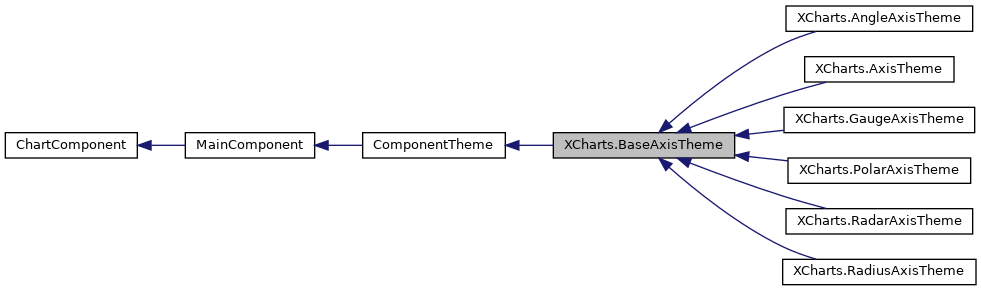

Inheritance diagram for XCharts.BaseAxisTheme:

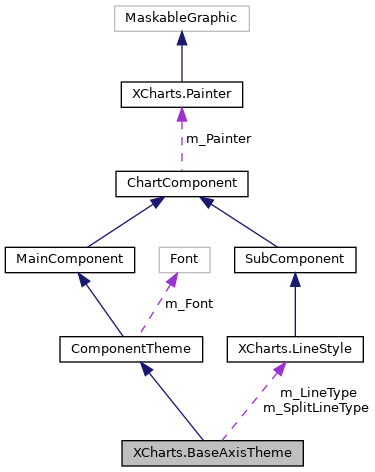

Collaboration diagram for XCharts.BaseAxisTheme:

Public Member Functions
	BaseAxisTheme (Theme theme)
void	Copy (BaseAxisTheme theme)
Public Member Functions inherited from XCharts.ComponentTheme
	ComponentTheme (Theme theme)
virtual void	Copy (ComponentTheme theme)
virtual void	Reset (ComponentTheme defaultTheme)
Public Member Functions inherited from XCharts.ChartComponent
virtual void	SetVerticesDirty ()
virtual void	ClearVerticesDirty ()
virtual void	SetComponentDirty ()
virtual void	ClearComponentDirty ()
virtual void	ClearDirty ()
virtual void	SetAllDirty ()

Protected Attributes
LineStyle.Type	m_LineType = LineStyle.Type.Solid
float	m_LineWidth = 1f
float	m_LineLength = 0f
Color32	m_LineColor
LineStyle.Type	m_SplitLineType = LineStyle.Type.Dashed
float	m_SplitLineWidth = 1f
float	m_SplitLineLength = 0f
Color32	m_SplitLineColor
float	m_TickWidth = 1f
float	m_TickLength = 5f
Color32	m_TickColor
List< Color32 >	m_SplitAreaColors = new List<Color32>()
Protected Attributes inherited from XCharts.ComponentTheme
Font	m_Font
Color	m_TextColor
Color	m_TextBackgroundColor
int	m_FontSize = 18
Protected Attributes inherited from XCharts.ChartComponent
bool	m_VertsDirty
bool	m_ComponentDirty
Painter	m_Painter

Properties
LineStyle.Type	lineType [get, set]
	the type of line. 坐标轴线类型。 More...
float	lineWidth [get, set]
	the width of line. 坐标轴线宽。 More...
float	lineLength [get, set]
	the length of line. 坐标轴线长。 More...
Color32	lineColor [get, set]
	the color of line. 坐标轴线颜色。 More...
LineStyle.Type	splitLineType [get, set]
	the type of split line. 分割线线类型。 More...
float	splitLineWidth [get, set]
	the width of split line. 分割线线宽。 More...
float	splitLineLength [get, set]
	the length of split line. 分割线线长。 More...
Color32	splitLineColor [get, set]
	the color of line. 分割线线颜色。 More...
float	tickLength [get, set]
	the length of tick. 刻度线线长。 More...
float	tickWidth [get, set]
	the width of tick. 刻度线线宽。 More...
Color32	tickColor [get, set]
	the color of tick. 坐标轴线颜色。 More...
List< Color32 >	splitAreaColors [get, set]
Properties inherited from XCharts.ComponentTheme
Font	font [get, set]
	the font of text. 字体。 More...
Color	textColor [get, set]
	the color of text. 文本颜色。 More...
Color	textBackgroundColor [get, set]
	the color of text. 文本颜色。 More...
int	fontSize [get, set]
	the font size of text. 文本字体大小。 More...
Properties inherited from XCharts.ChartComponent
virtual bool	vertsDirty [get]
	图表重绘标记。 More...
virtual bool	componentDirty [get]
	组件重新初始化标记。 More...
bool	anyDirty [get]
	需要重绘图表或重新初始化组件。 More...
Painter	painter [get, set]
Action	refreshComponent [get, set]
GameObject	gameObject [get, set]

Detailed Description

Definition at line 18 of file AxisTheme.cs.

Property Documentation

lineColor

Color32 XCharts.BaseAxisTheme.lineColor

getset

the color of line. 坐标轴线颜色。

Definition at line 65 of file AxisTheme.cs.

        {
            get { return m_LineColor; }
            set { if (PropertyUtil.SetColor(ref m_LineColor, value)) SetVerticesDirty(); }
        }

lineLength

float XCharts.BaseAxisTheme.lineLength

getset

the length of line. 坐标轴线长。

Definition at line 56 of file AxisTheme.cs.

        {
            get { return m_LineLength; }
            set { if (PropertyUtil.SetStruct(ref m_LineLength, value)) SetVerticesDirty(); }
        }

lineType

LineStyle.Type XCharts.BaseAxisTheme.lineType

getset

the type of line. 坐标轴线类型。

Definition at line 38 of file AxisTheme.cs.

        {
            get { return m_LineType; }
            set { if (PropertyUtil.SetStruct(ref m_LineType, value)) SetVerticesDirty(); }
        }

lineWidth

float XCharts.BaseAxisTheme.lineWidth

getset

the width of line. 坐标轴线宽。

Definition at line 47 of file AxisTheme.cs.

        {
            get { return m_LineWidth; }
            set { if (PropertyUtil.SetStruct(ref m_LineWidth, value)) SetVerticesDirty(); }
        }

splitLineColor

Color32 XCharts.BaseAxisTheme.splitLineColor

getset

the color of line. 分割线线颜色。

Definition at line 101 of file AxisTheme.cs.

        {
            get { return m_SplitLineColor; }
            set { if (PropertyUtil.SetColor(ref m_SplitLineColor, value)) SetVerticesDirty(); }
        }

splitLineLength

float XCharts.BaseAxisTheme.splitLineLength

getset

the length of split line. 分割线线长。

Definition at line 92 of file AxisTheme.cs.

        {
            get { return m_SplitLineLength; }
            set { if (PropertyUtil.SetStruct(ref m_SplitLineLength, value)) SetVerticesDirty(); }
        }

splitLineType

LineStyle.Type XCharts.BaseAxisTheme.splitLineType

getset

the type of split line. 分割线线类型。

Definition at line 74 of file AxisTheme.cs.

        {
            get { return m_SplitLineType; }
            set { if (PropertyUtil.SetStruct(ref m_SplitLineType, value)) SetVerticesDirty(); }
        }

splitLineWidth

float XCharts.BaseAxisTheme.splitLineWidth

getset

the width of split line. 分割线线宽。

Definition at line 83 of file AxisTheme.cs.

        {
            get { return m_SplitLineWidth; }
            set { if (PropertyUtil.SetStruct(ref m_SplitLineWidth, value)) SetVerticesDirty(); }
        }

tickColor

Color32 XCharts.BaseAxisTheme.tickColor

getset

the color of tick. 坐标轴线颜色。

Definition at line 128 of file AxisTheme.cs.

        {
            get { return m_TickColor; }
            set { if (PropertyUtil.SetColor(ref m_TickColor, value)) SetVerticesDirty(); }
        }

tickLength

float XCharts.BaseAxisTheme.tickLength

getset

the length of tick. 刻度线线长。

Definition at line 110 of file AxisTheme.cs.

        {
            get { return m_TickLength; }
            set { if (PropertyUtil.SetStruct(ref m_TickLength, value)) SetVerticesDirty(); }
        }

tickWidth

float XCharts.BaseAxisTheme.tickWidth

getset

the width of tick. 刻度线线宽。

Definition at line 119 of file AxisTheme.cs.

        {
            get { return m_TickWidth; }
            set { if (PropertyUtil.SetStruct(ref m_TickWidth, value)) SetVerticesDirty(); }
        }

---

The documentation for this class was generated from the following file:

• AxisTheme.cs
